Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI DR 250 1995

GEAR SHIFTING ASSY

Item numbers

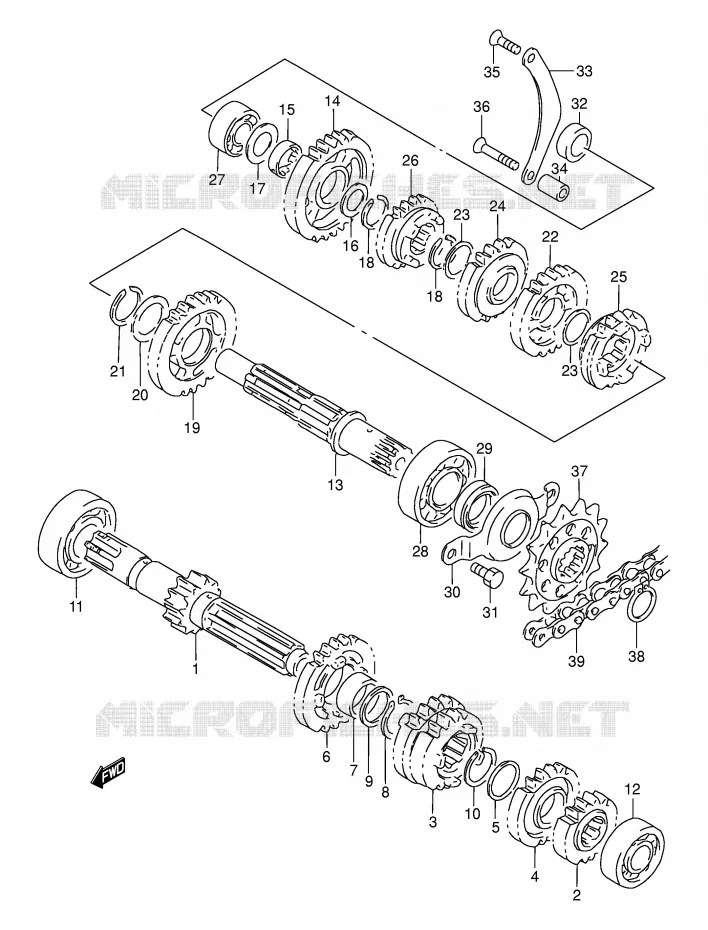

TRANSMISSION Suzuki MOTO 250 DR 1995 DR250SES(E24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
SHAFT, COUNTER(NT:12)
COUNTERSHAFT (NT:12)

24120-14D03-000   2412014D03000

2412014D03000

Unit Price

2
GEAR, 2ND DRIVE

24221-14D00-000  

24221-14D01-000
 2422114D00000

Unit Price

3
GEAR, 3RD & 4TH DRIVE(NT:18/18)
GEAR, 3/4TH DRIVE (NT:18/18)

24231-14D00-000   2423114D00000

2423114D00000

Unit Price

4
GEAR, 5TH DRIVE (NT:21)

24251-14D00-000   2425114D00000

2425114D00000

Unit Price

5
SHIM(22X26X1)

08211-22261-000  

09181-22111-000
 0821122261000

Unit Price

6
GEAR, 6TH DRIVE (NT:23)

24261-14D02-000   2426114D02000

2426114D02000

Unit Price

7
BUSH
BUSH

09300-22008-000   0930022008000

0930022008000

Unit Price

8
CIRCLIP

08331-31226-000  

08331-31229-000
 0833131226000

Unit Price

9
WASHER

08211-22301-000  

09181-22167-000
 0821122301000

Unit Price

10
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

11
BEARING, 20X52X15

09262-20116-000  

09262-20145-000
 0926220116000

Unit Price

12
BALL BEARING

09262-17018-000  

09262-17027-000
 0926217018000

Unit Price

13
SHAFT, DRIVE
DRIVESHAFT

24130-14D14-000   2413014D14000

2413014D14000

Unit Price

14
DISCONTINUE

24311-14D00-000  

2431114D00000
Not available
15
BUSH, 1ST DRIVEN GEAR
BUSH

24312-14D00-000   2431214D00000

2431214D00000

Unit Price

16
WASHER

08211-17322-000   0821117322000

0821117322000

Unit Price

17
WASHER

08211-22301-000  

09181-22167-000
 0821122301000

Unit Price

18
4TH DRIVE GR CIRCLIP
CIRCLIP

09380-22006-000   0938022006000

0938022006000

Unit Price

19
GEAR, 2ND DRIVEN (NT:26)

24320-14D00-000   2432014D00000

2432014D00000

Unit Price

20
WASHER, 5TH DRIVE GEA

08211-25341-000  

09181-25167-000
 0821125341000

Unit Price

21
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

22
GEAR, 3RD DRIVEN (NT:24)

24331-14D01-000   2433114D01000

2433114D01000

Unit Price

23
SHIM, 22X28X1.0

08211-22281-000  

09181-22139-000
 0821122281000

Unit Price

24
GEAR, 4TH DRIVEN (NT:20)

24341-14D00-000   2434114D00000

2434114D00000

Unit Price

25
GEAR, 5TH DRIVEN(NT:20)

24351-14D00-000  

24351-14D01-000
 2435114D00000

Unit Price

26
GEAR, 6TH DRIVEN (NT:19)

24361-14D01-000   2436114D01000

2436114D01000

Unit Price

27
BEARING(17X40X17.5)
BEARING, RH

09267-17003-000   0926717003000

0926717003000

Unit Price

28
BEARING
BEARING, LH

09262-22024-000   0926222024000

0926222024000

Unit Price

29
OIL SEAL

09283-22025-000   0928322025000

0928322025000

Unit Price

30
RETAINER, DRIVE SHAFT OIL SEAL
HOLDER, OIL SEAL

24751-14D00-000   2475114D00000

2475114D00000

Unit Price

31
BOLT

01500-06123-000  

01500-0612A-000
 0150006123000

Unit Price

32
SPACER (17X25X10.5)
SPACER (17X25X10.5)

09180-17004-000   0918017004000

0918017004000
Not available
33
RETAINER, KICK IDLE GEAR

26264-14D00-000   2626414D00000

2626414D00000

Unit Price

34
SPACER, 6.5X12X21

09180-06229-000  

09180-06314-000
 0918006229000

Unit Price

35
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

36
SCREW

02122-06353-000  

02122-0635B-000
 0212206353000

Unit Price

37
SPROCKET (NT:14)

27510-47D00-000   2751047D00000

2751047D00000
Not available
38
CIRCLIP

09380-22012-000   0938022012000

0938022012000

Unit Price

39
CHAIN

27600-14A10-110  

27600-14A20-110
 2760014A10110

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of DR. Let us know if you have any questions.
