CYLINDER

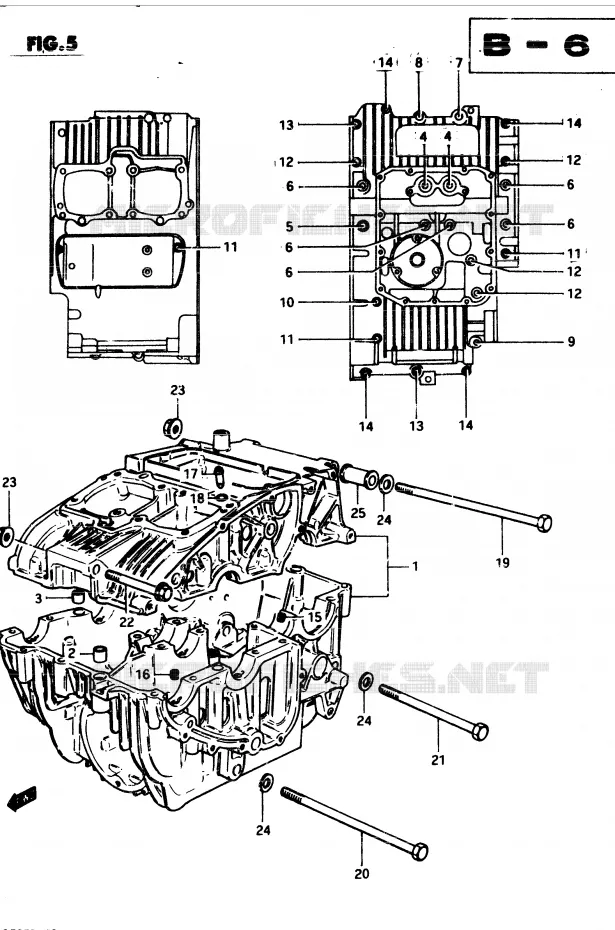

CRANKCASE (MODEL Z) FOR SUZUKI GSX 250 1982

CRANKCASE (MODEL D)

CRANKCASE ASSY

11300-11402-000 1130011402000

Not available

CLUTCH COVER PI **S1
PIN

09206-13004-000 0920613004000

$3,97

Unit Price

PIN, 11 X20

09206-11005-000

09206-11017-000

$12,97

Unit Price

.BOLT (8X70)

09106-08014-000 0910608014000

Not available

.BOLT (8X125)

09103-08020-000 0910308020000

Not available

.BOLT (8X115)

09103-08025-000 0910308025000

Not available

BOLT

01517-08658-000

01550-08657-000

$6,97

Unit Price

BOLT

01517-08508-000

01550-08507-000

$6,97

Unit Price

BOLT

01517-08408-000

Not available

BOLT CYL HEAD COVER

09103-06031-000

09103-06033-000

$6,97

Unit Price

BOLT, ENGINE MOUNT
BOLT (6X105)

09103-06067-000 0910306067000

$6,97

Unit Price

BOLT

01517-06908-000

01517-06907-000

$6,97

Unit Price

BOLT

01517-06608-000

01550-0660A-000

$4,97

Unit Price

BOLT

01517-06458-000

01550-06457-000

$4,97

Unit Price

JET, AIR(100)
JET T/M COOLING

09493-20012-000 0949320012000

$17,97

Unit Price

JET, OIL BALANCER SHAFT

09493-40001-000 0949340001000

Not available

JET, OIL GALLERY CYLINDER

09493-40002-000 0949340002000

Not available

RING
O RING

09280-03003-000 0928003003000

$3,97

Unit Price

BOLT
BOLT (10X210)

09100-10033-000 0910010033000

$65,97

Unit Price

BOLT (10X215)

09100-10034-000 0910010034000

Not available

BOLT (10X160)

09100-10092-000 0910010092000

Not available

BOLT (10X90)

01517-10908-000 0151710908000

Not available

NUT

08319-31105-000

08319-3110A-000

$3,97

Unit Price

WASHER, LOWER LH

08322-11108-000 0832211108000

Not available

SPACER, ENGINE MOUNTING

11610-44100-000 1161044100000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE (MODEL Z) of your Suzuki of GSX. Let us know if you have any questions.
