OIL FILTER - OIL PUMP

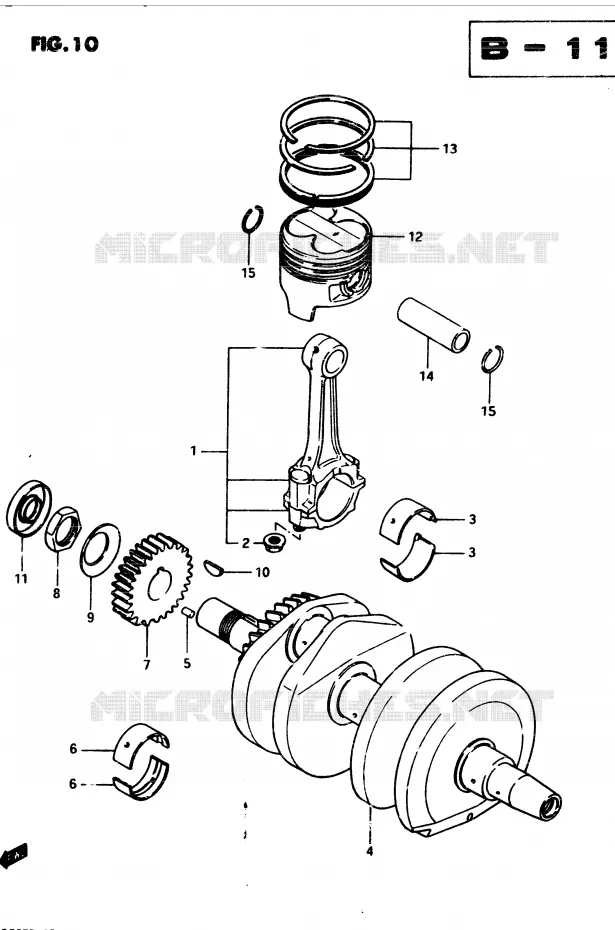

CRANKSHAFT FOR SUZUKI GSX 250 1982

CRANKSHAFT BALANCER

ROD ASSY, CONNECTING

12160-11400-000 1216011400000

Not available

NUT

09159-08033-000 0915908033000

$4,97

Unit Price

BEARING, CRANK PIN (GREEN)

12164-11400-010 1216411400010

Not available

BEARING, CRANK PIN (BLACK)

12164-11400-020 1216411400020

Not available

BEARING, CRANK PIN (US:0.25)

12164-11400-025 1216411400025

Not available

BEARING, CRANK PIN (BROWN)

12164-11400-030 1216411400030

Not available

BEARING, CRANK PIN (YELLOW)

12164-11400-040 1216411400040

Not available

BEARING, CRANK PIN (US:0.5)

12164-11400-050 1216411400050

Not available

DISCONTINUED

12164-33210-010 1216433210010

Not available

DISCONTINUED

12164-33210-020 1216433210020

Not available

DISCONTINUED

12164-33210-030 1216433210030

Not available

DISCONTINUED

12164-33210-040 1216433210040

Not available

CRANKSHAFT

12220-11401-000 1222011401000

Not available

ROLLER

06211-03052-000

04221-03059-000

$2,97

Unit Price

DISCONTINUE

12229-11400-010

Not available

DISCONTINUE

12229-11400-020

Not available

BEARING, CRANKSHAFT (US:0.25)

12229-11400-025 1222911400025

Not available

DISCONTINUE

12229-11400-030

Not available

DISCONTINUE

12229-11400-040

Not available

BEARING, CRANKSHAFT (US:0.5)

12229-11400-050 1222911400050

Not available

GEAR, PRIMARY DRIVE (NT:24)

21111-11400-000 2111111400000

Not available

NUT

09140-24007-000 0914024007000

$6,97

Unit Price

WASHER

09164-25001-000 0916425001000

Not available

5MM WOODRUFF KEY
KEY

08341-31059-000 0834131059000

$4,97

Unit Price

OIL SEAL, RH

09283-22013-000 0928322013000

Not available

PISTON (STD)

12111-11403-000 1211111403000

Not available

PISTON (OS:0.5)

12111-11403-050 1211111403050

Not available

PISTON (OS:1.0)

12111-11403-100 1211111403100

Not available

PISTON (STD)

12111-11410-000 1211111410000

Not available

PISTON (OS:0.5)

12111-11410-050 1211111410050

Not available

PISTON RING SET (STD)

12140-11410-000 1214011410000

Not available

PISTON RING SET (OS:0.5)

12140-11410-050 1214011410050

Not available

DISCONTINUE
PISTON RING SET (STD)

12140-11421-000 1214011421000

Not available

PISTON RING SET (OS:0.5)

12140-11421-050 1214011421050

Not available

PISTON RING SET (OS:1.0)

12140-11421-100 1214011421100

Not available

PIN, PISTON

12151-78110-000

12151-60D00-000

$23,97

Unit Price

PISTON PIN CIRCLIP

09381-16002-000

09381-16001-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki of GSX. Let us know if you have any questions.
