CYLINDER HEAD COVER (MODEL Z)

CYLINDER HEAD COVER (MODEL D) FOR SUZUKI GSX 250 1982

CYLINDER HEAD

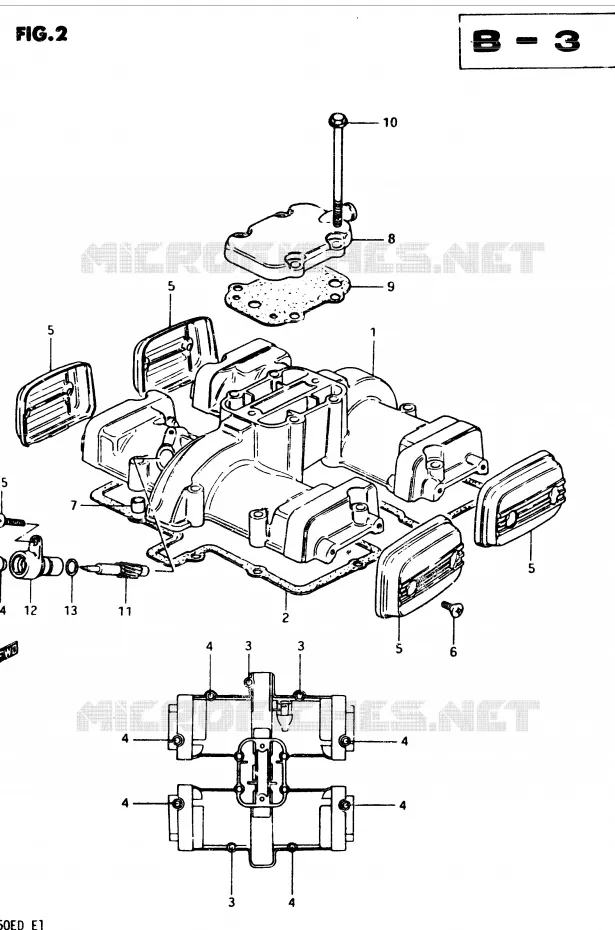

CYLINDER HEAD COVER (MODEL D) Suzuki MOTO 250 GSX 1982 GSX250ESZ(Z/D)

1

COVER, CYLINDER HEAD

11171-11450-000 1117111450000

Not available

2

DISCONTINUE

11173-11430-000

Not available

3

.BOLT (6X40)

01517-06405-000 0151706405000

Not available

4

DISCONTINUED

01517-06355-000 0151706355000

Not available

5

CAP, CYLINDER HEAD COVER
CAP, SIDE

11174-49221-000 1117449221000

$35,97

Unit Price

6

SCREW(5X12)
SCREW

09127-05015-000 0912705015000

$3,97

Unit Price

7

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

8

COVER, BREATHER

11176-11420-000 1117611420000

Not available

9

GASKET

11177-11400-000 1117711400000

Not available

10

.BOLT (6X75)

01517-06755-000 0151706755000

Not available

11

DISCONTINUED

26431-47002-000 2643147002000

Not available

12

SLEEVE, TACHOMETER DRIVE GEAR
SLEEVE

26441-49000-000 2644149000000

$33,97

Unit Price

13

BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000 2645145000000

$7,97

Unit Price

14

TACHO DRVN OIL SEAL
OIL SEAL

09289-05002-000 0928905002000

$16,97

Unit Price

15

LOCK PLATE SCREW
SCREW

09128-05101-000 0912805101000

$1,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD COVER (MODEL D) of your Suzuki of GSX. Let us know if you have any questions.
