Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI KINGQUAD 250 1996

FOOTREST

Item numbers

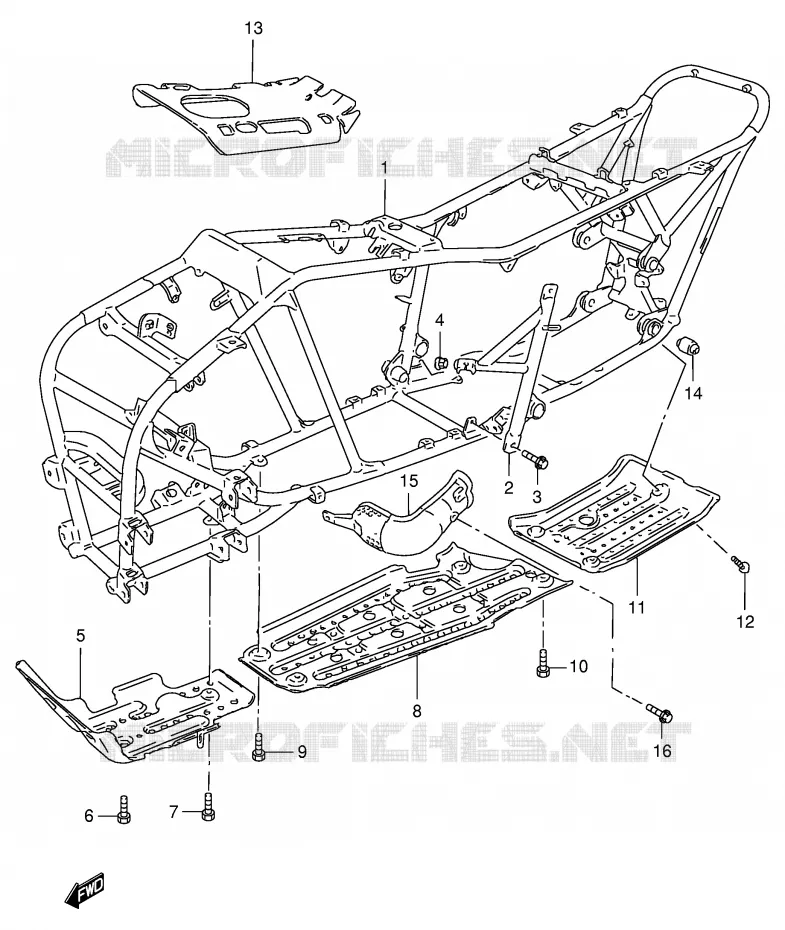

FRAME Suzuki QUAD 250 KINGQUAD 1996 LT-F4WDT(E28)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
DISCONTINUE

41101-19813-019  

4110119813019
Not available
2
TUBE, ENGINE MOUNT FR
BAR, MOUNTING FRONT (BLACK)

41910-39D00-019   4191039D00019

4191039D00019

Unit Price

3
BOLT(10X20)
BOLT

09103-10165-000   0910310165000

0910310165000

Unit Price

4
CAP, FR GRIP
CAP

43978-24500-000   4397824500000

4397824500000

Unit Price

5
PROTECTOR, FR

42510-19B11-000  

42510-19B12-000
 4251019B11000

Unit Price

6
01580-0612B
BOLT, FRONT

01580-06123-000  

0158006123000
Not available
7
BOLT

01580-06163-000  

01580-0616A-000
 0158006163000

Unit Price

8
42560-19B03
PROTECTOR, MIDDLE

42560-19B02-000   4256019B02000

4256019B02000
Not available
9
01580-0625A
BOLT, FRONT

01580-06253-000   0158006253000

0158006253000
Not available
10
BOLT

01580-06163-000  

01580-0616A-000
 0158006163000

Unit Price

11
PROTECTOR, ENGINE

61390-19B01-000  

61390-19B02-000
 6139019B01000

Unit Price

12
BOLT

01580-06163-000  

01580-0616A-000
 0158006163000

Unit Price

13
DISCONTINUE

47157-19B10-000  

4715719B10000
Not available
14
BUSH.ENGINE MOUNTING
BUSH

09319-10064-000   0931910064000

0931910064000

Unit Price

15
COVER, MUD

42570-39D00-000   4257039D00000

4257039D00000

Unit Price

16
01580-0612B
BOLT

01580-06123-000  

0158006123000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 250 KINGQUAD 1996

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 KINGQUAD 1996

Select your Suzuki 1996 model

250 KINGQUAD 1996 LT-F4WDT(E28)

Suzuki KINGQUAD

Displacement: 250 cc
Year: 1996
Model code LT-F4WDT(E28)
4WD
