SPEEDOMETER FOR SUZUKI KINGQUAD 250 1996

HEADLIGHT (MODEL T) REFER TO FIG.27A(E-9) FOR MODEL V/W

Item numbers

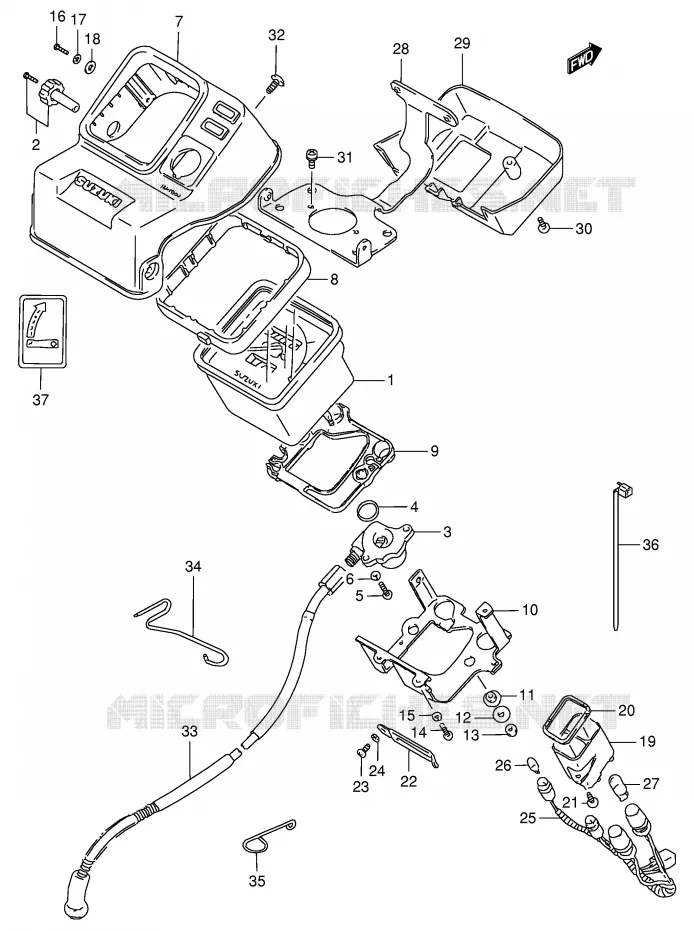

SPEEDOMETER Suzuki QUAD 250 KINGQUAD 1996 LT-F4WDT(E28)
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
37
1
SPEEDOMETER(KILO)

34110-19B11-000  

34110-19B12-000
 3411019B11000

Unit Price

2
KNOB, TRIP

34124-04A30-000   3412404A30000

3412404A30000

Unit Price

3
BOX, GEAR
BOX, METER GEAR

34131-19B00-000   3413119B00000

3413119B00000

Unit Price

4
DISCONTINUE
GASKET

34127-19B10-000   3412719B10000

3412719B10000
Not available
5
SCREW

02112-04123-000  

02112-0412A-000
 0211204123000

Unit Price

6
WASHER, LOCK

08321-01043-000  

08321-0104A-000
 0832101043000

Unit Price

7
DISCONTINUE

34151-19B10-000  

3415119B10000
Not available
8
CUSHION, METER NO.1

34188-19B10-000   3418819B10000

3418819B10000

Unit Price

9
CUSHION, METER NO.2

34189-19B10-000   3418919B10000

3418919B10000

Unit Price

10
PLATE, METER SETTING

34162-19B10-000   3416219B10000

3416219B10000

Unit Price

11
CUSHION

34191-19B10-000   3419119B10000

3419119B10000

Unit Price

12
WASHER(5.5X16X1.2)<br />WASHER (5.5X16X1.20)
WASHER(5.5X16X1.2)
WASHER (5.5X16X1.20)

09160-05037-000   0916005037000

0916005037000

Unit Price

13
08310-0005A

08310-00053-000  

0831000053000
Not available
14
SCREW

02112-04123-000  

02112-0412A-000
 0211204123000

Unit Price

15
WASHER, LOCK

08321-01043-000  

08321-0104A-000
 0832101043000

Unit Price

16
SCREW

02112-04123-000  

02112-0412A-000
 0211204123000

Unit Price

17
WASHER, LOCK

08321-01043-000  

08321-0104A-000
 0832101043000

Unit Price

18
WASHER

08322-01043-000  

08322-0104B-000
 0832201043000

Unit Price

19
CASE, PILOT LAMP

36381-19B10-000   3638119B10000

3638119B10000

Unit Price

20
GASKET

34196-19B10-000   3419619B10000

3419619B10000

Unit Price

21
SCREW

03541-04163-000  

03541-0416A-000
 0354104163000

Unit Price

22
CLAMP

34176-19B10-000   3417619B10000

3417619B10000

Unit Price

23
SCREW

02112-04063-000  

02112-0406B-000
 0211204063000

Unit Price

24
WASHER, LOCK

08321-01043-000  

08321-0104A-000
 0832101043000

Unit Price

25
DISCONTINUE
SOCKET, METER

34170-19B10-000  

3417019B10000
Not available
26
BULB(12V3.4W G30)

09471-12103-000  

09471-12085-000
 0947112103000

Unit Price

27
BULB(12V21W)
BULB (12V, 3.4W)

09471-12028-000  

0947112028000
Not available
28
BRACKET, SPEEDOMETER
BRACKET, METER

34950-19B10-000   3495019B10000

3495019B10000

Unit Price

29
COVER, LWR
COVER, LOWER

34193-19B10-000   3419319B10000

3419319B10000

Unit Price

30
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

31
SCREW

02112-35103-000  

02112-3510B-000
 0211235103000

Unit Price

32
SCREW

02142-05083-000  

02142-0508A-000
 0214205083000

Unit Price

33
CABLE ASSY, SPEEDOMETER

34910-19B10-000  

34910-19B12-000
 3491019B10000

Unit Price

34
GUIDE, SPEEDOMETER CABLE
GUIDE, CABLE

34938-19B00-000   3493819B00000

3493819B00000

Unit Price

35
CLAMP, METER CABLE
CLAMP

34948-29000-000   3494829000000

3494829000000

Unit Price

36
CLAMP, WIRING HARNESS

09403-26401-000  

09403-26402-000
 0940326401000

Unit Price

36
CLAMP, WIRING HARNESS

09407-18403-000  

09407-18402-000
 0940718403000

Unit Price

37
LABEL, GEAR SHIFT PATTERN

68392-24220-000  

68392-24221-000
 6839224220000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER of your Suzuki of KINGQUAD. Let us know if you have any questions.
