Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEADLIGHT (MODEL T) REFER TO FIG.27A(E-9) FOR MODEL V/W

HEADLIGHT (MODEL V / W) FOR SUZUKI KINGQUAD 250 1996

TAIL LIGHT

Item numbers

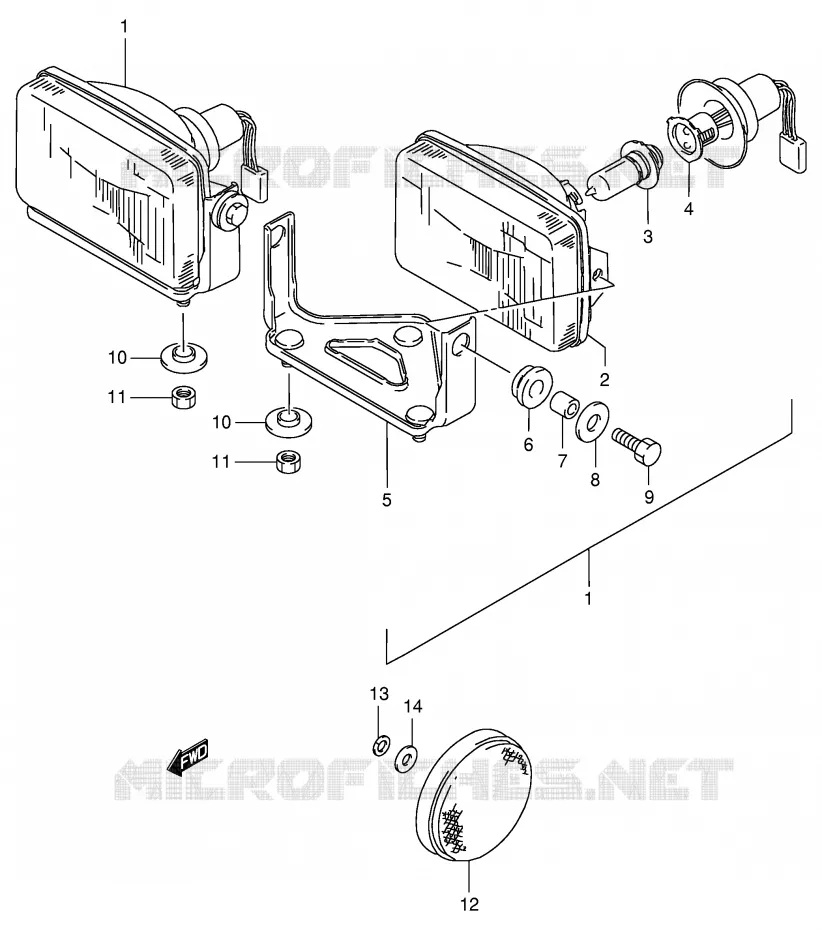

HEADLIGHT (MODEL V/W) Suzuki QUAD 250 KINGQUAD 1996 LT-F4WDT(E28)
1
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
1
DISCONTINUE
HEADLAMP ASSY

35100-19B03-000   3510019B03000

3510019B03000
Not available
2
DISCONTINUE
UNIT, LAMP

35121-19B00-000   3512119B00000

3512119B00000
Not available
3
BULB(14V30/30W, BF130-03800A)
BULB (12V, 30/30W)

09471-12093-000  

0947112093000
Not available
4
SOCKET

35171-19B03-000   3517119B03000

3517119B03000

Unit Price

5
DISCONTINUE
BRACKET, LAMP

35141-19B00-000   3514119B00000

3514119B00000
Not available
6
CUSHION

35139-45230-000   3513945230000

3513945230000

Unit Price

7
DISCONTINUE
SPACER

35133-19B00-000   3513319B00000

3513319B00000
Not available
8
WASHER

09160-06057-000  

09160-06109-000
 0916006057000

Unit Price

9
DISCONTINUE<br />BOLT (6X14)
DISCONTINUE
BOLT (6X14)

09100-06067-000   0910006067000

0910006067000
Not available
10
WASHER

09169-06028-000  

09169-06031-000
 0916906028000

Unit Price

11
08310-0006A
NUT

08310-00063-000  

0831000063000
Not available
12
REFLECTOR,REFLEX FR<br />REFLEX REFLECTOR, FR SIDE
REFLECTOR, REFLEX FR
REFLEX REFLECTOR, FR SIDE

35950-14A00-000   3595014A00000

3595014A00000

Unit Price

13
WASHER, LOCK

08321-01053-000  

08321-0105A-000
 0832101053000

Unit Price

14
WASHER

08322-01053-000  

08322-0105B-000
 0832201053000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (MODEL V/W) of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 250 KINGQUAD 1996

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 250 KINGQUAD 1996

Select your Suzuki 1996 model

250 KINGQUAD 1996 LT-F4WDT(E28)

Suzuki KINGQUAD

Displacement: 250 cc
Year: 1996
Model code LT-F4WDT(E28)
4WD
