STARTER MOTOR CLUTCH

CAMSHAFT / VALVE FOR SUZUKI OZARK 250 2003

TIMING

Item numbers

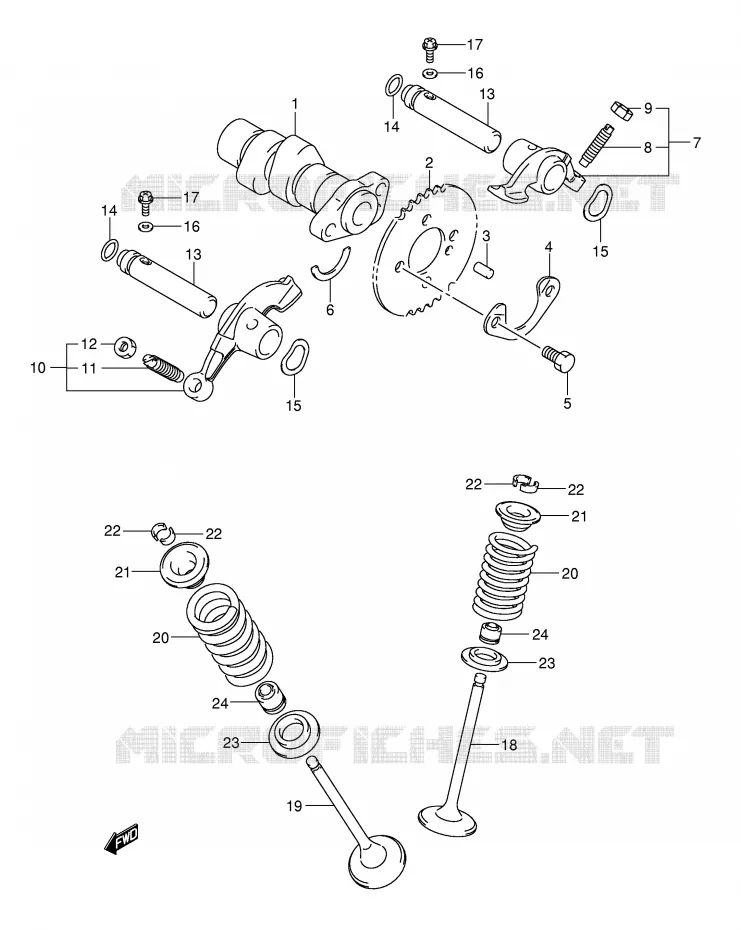

CAMSHAFT/VALVE Suzuki QUAD 250 OZARK 2003 LT-F250K3(E17)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
15
16
16
17
17
18
19
20
20
20
20
21
21
22
22
22
22
23
23
24
24
1
CAMSHAFT

12711-18A00-000   1271118A00000

1271118A00000

Unit Price

2
SPROCKET, CAMSHAFT
SPROCKET (NT:32)

12741-05201-000   1274105201000

1274105201000

Unit Price

3
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

4
WASHER, SPROCKET

12747-05201-000  

12747-05202-000
 1274705201000

Unit Price

5
BOLT, SPROCKET
BOLT (6X10.5)

09111-06032-000   0911106032000

0911106032000

Unit Price

6
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

7
ARM ASSY, VALVE ROCKER
ARM, VALVE ROCKER, IN

12850-25C00-000   1285025C00000

1285025C00000

Unit Price

8
SCREW, TAPPET ADJUSTING
SCREW

12842-32411-000   1284232411000

1284232411000

Unit Price

9
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

10
ARM ASSY, VALVE ROCKER
ARM, VALVE ROCKER, EX

12850-25C00-000   1285025C00000

1285025C00000

Unit Price

11
SCREW, TAPPET ADJUSTING
SCREW

12842-32411-000   1284232411000

1284232411000

Unit Price

12
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

13
SHAFT, VALVE ROCKET
SHAFT, ROCKER ARM

12861-05201-000   1286105201000

1286105201000

Unit Price

14
O RING,ROCKER SHAFT<br />O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

15
WASHER,WAVE<br />WASHER
WASHER, WAVE
WASHER

09164-12021-000   0916412021000

0916412021000

Unit Price

16
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
17
SCREW

02162-06253-000  

02162-0625A-000
 0216206253000

Unit Price

18
VALVE, INTAKE

12911-05G00-000   1291105G00000

1291105G00000

Unit Price

19
VALVE, EXHAUST

12912-18A00-000   1291218A00000

1291218A00000

Unit Price

20
SPRING, VALVE

12921-19B00-000   1292119B00000

1292119B00000

Unit Price

20
SPRING, VALVE

12921-21G00-000   1292121G00000

1292121G00000

Unit Price

21
RETAINER, VALVE SPRING

12931-19B00-000  

12931-19B01-000
 1293119B00000

Unit Price

22
COTTER, VALVE
COTTER, VALVE

12932-24400-000   1293224400000

1293224400000

Unit Price

23
SEAT, VALVE SPRING
SEAT, SPRING

12933-19B00-000   1293319B00000

1293319B00000

Unit Price

24
SEAL, OIL(5.5X11X8.2)
OIL SEAL (5.5X11X8.2)

09289-05015-000   0928905015000

0928905015000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
