OIL PUMP

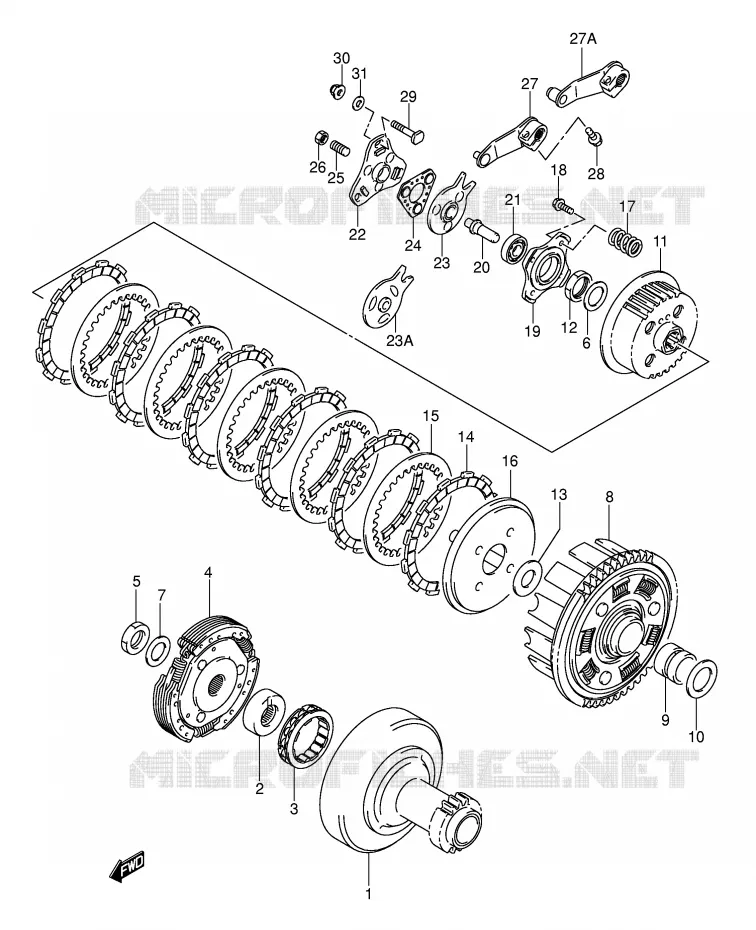

CLUTCH (MODEL K2) FOR SUZUKI OZARK 250 2003

CLUTCH (MODEL K3) REFER TO FIG.15B(D- 5) FOR MODEL K4

Item numbers

GEAR, PRIMARY DRIVE (NT:20)

21110-05G00-000 2111005G00000

$231,97

Unit Price

RACE, ONE WAY CLUTCH
RACE, INNER

21631-19B11-000 2163119B11000

$44,97

Unit Price

CLUTCH ASSY, ONE WAY
CLUTCH, ONE WAY

21273-19B10-000 2127319B10000

$178,97

Unit Price

CLUTCH ASSY, SHOE
CLUTCH ASSY

21500-05G10-000 2150005G10000

$309,97

Unit Price

NUT

09140-18012-000 0914018012000

$13,97

Unit Price

WASHER
LOCK WASHER (ID:20.1)

09164-20007-000 0916420007000

$6,97

Unit Price

PRI DRIVE GR WAS****

09164-18007-000

09164-18001-000

$5,97

Unit Price

DISCONTINUE
GEAR ASSY, PRIMARY (NT:60)

21200-05G00-000 2120005G00000

Not available

SPACER (22X28X23)

09180-22035-000 0918022035000

$30,97

Unit Price

WASHER
WASHER (22X36X1.0)

09181-22251-000 0918122251000

$6,97

Unit Price

HUB, CLUTCH SLEEVE
HUB, CLUTCH

21410-05G00-000 2141005G00000

$115,97

Unit Price

DISCONTINUE
HUB, CLUTCH

21410-24500-000 2141024500000

Not available

DRIVE SPROCKET NUT
NUT

09140-20001-000 0914020001000

$5,97

Unit Price

WASHER

08211-20323-000 0821120323000

$3,97

Unit Price

PLATE, CLUTCH DRIVE
PLATE, DRIVE

21441-22A01-000 2144122A01000

$21,97

Unit Price

PLATE, CLUTCH DRIVEN(T:2.0)
PLATE, DRIVEN (T:2.0)

21451-36200-000 2145136200000

$11,97

Unit Price

DISC, CLUTCH PRESSURE
DISC, PRESSURE

21462-24501-000 2146224501000

$80,97

Unit Price

SPRING

09440-19017-000 0944019017000

$7,97

Unit Price

SPRING, CLUTCH
SPRING

21413-05G10-000 2141305G10000

$8,97

Unit Price

BOLT

01550-06203-000

01550-0620B-000

$4,97

Unit Price

PLATE, RELEASE

21465-24500-000 2146524500000

$24,97

Unit Price

PIECE, CLUTCH PUSH
PIECE, PUSH

23121-05G00-000 2312105G00000

$24,97

Unit Price

BALL BEARING
BEARING (12X28X8)

09262-12001-000 0926212001000

$26,97

Unit Price

DISCONTINUE
GUIDE, BALL OUTER

23231-05G00-000 2323105G00000

Not available

BALL GUIDE, CL RELEASE INNER
GUIDE, BALL INNER

23211-24201-000 2321124201000

$39,97

Unit Price

23A

DISCONTINUE
GUIDE, BALL INNER

23211-05G00-000 2321105G00000

Not available

BALL, CLUTCH RELEASE
BALL, RELEASE

23250-31003-000 2325031003000

$28,97

Unit Price

SCREW, CLUTCH ADJUST
SCREW, ADJUSTER

09134-08009-000 0913408009000

$6,97

Unit Price

NUT
NUT, ADJUSTER

09140-08019-000 0914008019000

$3,97

Unit Price

ARM, CLUTCH RELEASE
ARM, RELEASE

23220-24500-000 2322024500000

$29,97

Unit Price

27A

DISCONTINUE
ARM, RELEASE

23220-05G00-000 2322005G00000

Not available

BOLT

01500-06203-000

01500-0620A-000

$2,97

Unit Price

BOLT

09119-06103-000 0911906103000

$3,97

Unit Price

NUT

08313-20063-000

08313-2006A-000

$3,97

Unit Price

GASKET
SEAL, BOLT

09168-06023-000 0916806023000

Not available
