Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI OZARK 250 2003

CRANKCASE COVER

Item numbers

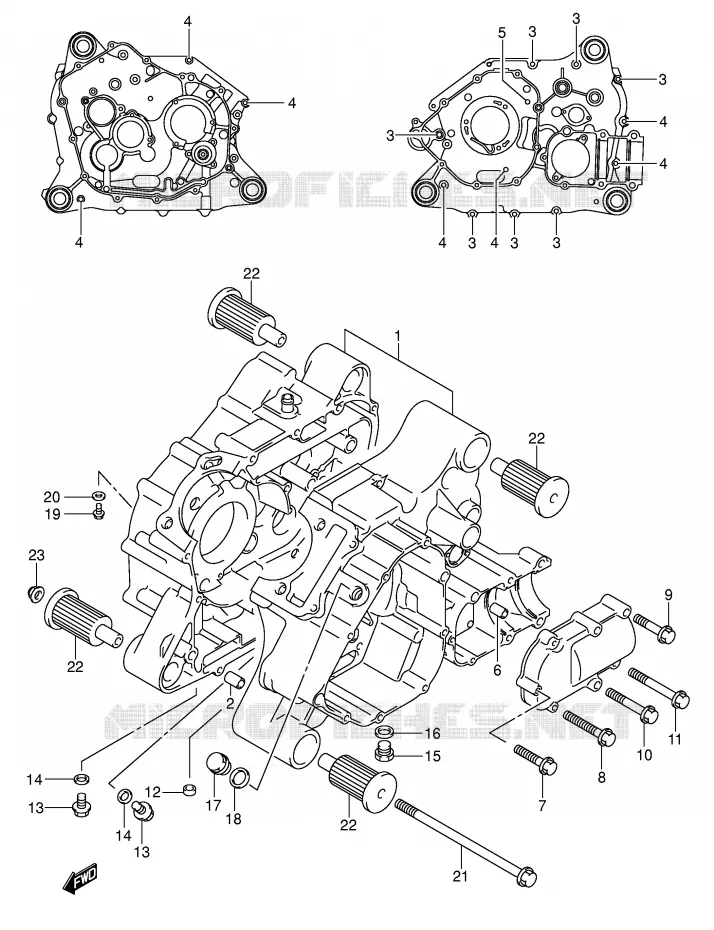

CRANKCASE Suzuki QUAD 250 OZARK 2003 LT-F250K3(E17)
1
1
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
22
22
22
22
23
1
CRANKCASE SET

11301-05810-000   1130105810000

1130105810000
Not available
1
CRANKCASE SET

11301-05820-000   1130105820000

1130105820000
Not available
2
DOWEL PIN<br />PIN
DOWEL PIN
PIN

04211-11189-000   0421111189000

0421111189000

Unit Price

3
BOLT

01547-06403-000  

01547-0640B-000
 0154706403000

Unit Price

4
BOLT

01547-06553-000  

01547-0655B-000
 0154706553000

Unit Price

5
BOLT

01547-06653-000  

01547-0665B-000
 0154706653000

Unit Price

6
DOWEL PIN<br />PIN, SEC CASE
DOWEL PIN
PIN, SEC CASE

04211-11189-000   0421111189000

0421111189000

Unit Price

7
BOLT

01547-06303-000  

01547-0630B-000
 0154706303000

Unit Price

8
BOLT

01547-06403-000  

01547-0640B-000
 0154706403000

Unit Price

9
BOLT

01550-08503-000  

01550-0850A-000
 0155008503000

Unit Price

10
BOLT

01550-08603-000  

01550-0860B-000
 0155008603000

Unit Price

11
BOLT

01550-08703-000  

01550-0870A-000
 0155008703000

Unit Price

12
PLATE, OIL JET CRKC, R
JET, OIL GALLERY MISSION

11329-09410-000   1132909410000

1132909410000

Unit Price

13
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

14
GASKET,OIL GALLERY<br />GASKET
GASKET, OIL GALLERY
GASKET

09168-06018-000   0916806018000

0916806018000

Unit Price

15
BOLT

01550-10163-000  

01550-1016A-000
 0155010163000

Unit Price

16
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

17
PLUG, PRESSURE SW
PLUG, TDC

09247-14015-000   0924714015000

0924714015000

Unit Price

18
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

19
PLUG, T.D.C.
PLUG, OIL DRAIN

09247-12104-000   0924712104000

0924712104000

Unit Price

20
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
21
BOLT

09103-10278-000   0910310278000

0910310278000

Unit Price

22
BUSH, ENGINE MTG

11651-05G01-000  

11651-05G02-000
 1165105G01000

Unit Price

23
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
