CARBURETOR FOR SUZUKI KINGQUAD 300 1993

AIR FILTER

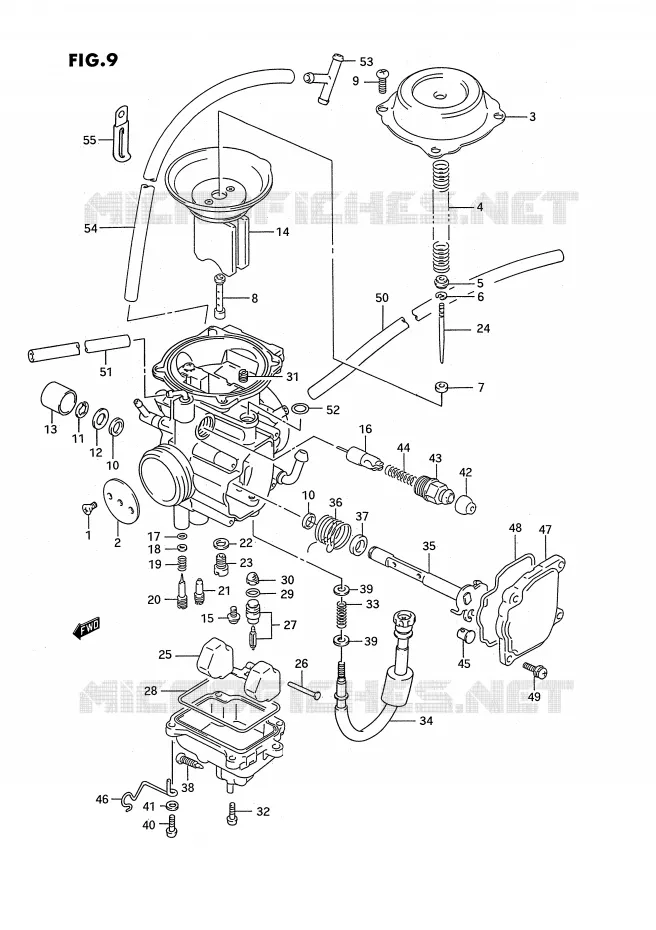

CARBURETOR Suzuki QUAD 300 KINGQUAD 1993 LT-F4WDXP(E3)
1
SCREW

13604-42A00-000  

13604-44080-000
 1360442A00000

Unit Price

2
.VALVE, THROTTLE

13551-42A30-000   1355142A30000

1355142A30000
Not available
3
COVER, DIAPHRAGM
COVER

13502-42A00-000   1350242A00000

1350242A00000

Unit Price

4
DISCONTINUE
SPRING

13417-26B00-000   1341726B00000

1341726B00000
Not available
5
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

6
CLIP<br />E RING
CLIP
E RING

13394-10010-000   1339410010000

1339410010000

Unit Price

7
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

8
DISCONTINUE

09494-00716-000  

0949400716000
Not available
9
SCREW

02112-04085-000  

02112-0408B-000
 0211204085000

Unit Price

10
DISCONTINUE
SEAL

13556-05A10-000  

1355605A10000
Not available
11
E RING
E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

12
GASKET,THROTTLE SHAFT<br />WASHER
GASKET, THROTTLE SHAFT
WASHER

13557-47070-000   1355747070000

1355747070000

Unit Price

13
CAP
CAP

13578-47070-000   1357847070000

1357847070000

Unit Price

14
DISCONTINUE

13500-19B50-000  

1350019B50000
Not available
14
DISCONTINUE

13500-19B61-000  

1350019B61000
Not available
15
SCREW
SCREW

13602-43410-000   1360243410000

1360243410000

Unit Price

16
PLUNGER ASSY

13411-19B50-000   1341119B50000

1341119B50000

Unit Price

17
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

18
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

19
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

20
SCREW,PILOT<br />SCREW, PILOT (2 5/8)
SCREW, PILOT
SCREW, PILOT (2 5/8)

13279-47070-000   1327947070000

1327947070000

Unit Price

21
JET,PILOT<br />JET, PILOT (37.5)
JET, PILOT
JET, PILOT (37.5)

09492-35010-000   0949235010000

0949235010000

Unit Price

22
WASHER

13332-44080-000  

13382-03110-000
 1333244080000

Unit Price

23
JET, MAIN #120
JET, MAIN (120)

09491-24016-000   0949124016000

0949124016000

Unit Price

24
DISCONTINUE
NEEDLE, JET (5D40-4)

13383-19B50-000   1338319B50000

1338319B50000
Not available
25
FLOAT
FLOAT

13250-42A00-000   1325042A00000

1325042A00000

Unit Price

26
PIN,FLOAT<br />PIN
PIN, FLOAT
PIN

13254-92311-000   1325492311000

1325492311000

Unit Price

27
VALVE ASSY, NEEDLE

13370-38B00-000   1337038B00000

1337038B00000

Unit Price

28
O RING, FLOAT CHAMBER

13251-42A00-000   1325142A00000

1325142A00000

Unit Price

29
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

30
FILTER

13376-84110-000  

13376-19F00-000
 1337684110000

Unit Price

31
JET, AIR
JET, PILOT AIR (155)

09493-30005-000   0949330005000

0949330005000

Unit Price

32
SCREW

02112-04123-000  

02112-0412A-000
 0211204123000

Unit Price

33
SPRING

13268-19B50-000   1326819B50000

1326819B50000

Unit Price

34
ADJUSTER ASSY
ADJUSTER

13267-19B70-000   1326719B70000

1326719B70000
Not available
35
SHAFT ASSY, THROTTLE

13550-19B80-000   1355019B80000

1355019B80000
Not available
36
.SPRING

13573-19B50-000   1357319B50000

1357319B50000
Not available
37
DISCONTINUE
RING

13574-19B50-000   1357419B50000

1357419B50000
Not available
38
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

39
WASHER,STARTER SHAFT<br />WASHER
WASHER, STARTER SHAFT
WASHER

13615-45010-000   1361545010000

1361545010000

Unit Price

40
SCREW

02112-04163-000  

02112-0416A-000
 0211204163000

Unit Price

41
WASHER

08322-01043-000  

08322-0104B-000
 0832201043000

Unit Price

42
CAP
CAP

13681-04010-000  

13681-04011-000
 1368104010000

Unit Price

43
HOLDER, GUIDE
HOLDER, GUIDE

13418-43410-000   1341843410000

1341843410000

Unit Price

44
SPRING
SPRING

13417-43010-000   1341743010000

1341743010000

Unit Price

45
GUIDE, CABLE

13591-19B50-000   1359119B50000

1359119B50000

Unit Price

46
DISCONTINUE
CLIP

13692-19B60-000   1369219B60000

1369219B60000
Not available
47
COVER

13502-19B50-000   1350219B50000

1350219B50000

Unit Price

48
O RING

13251-19B50-000   1325119B50000

1325119B50000

Unit Price

49
SCREW
SCREW

13602-19B50-000   1360219B50000

1360219B50000

Unit Price

50
DISCONTINUE

09359-50823-00A  

093595082300A
Not available
51
HOSE, 4.5X8.5X600

13683-19B90-000  

09355-45855-600
 1368319B90000

Unit Price

52
O-RING, BELT LUBE

09280-06009-000  

09280-06008-000
 0928006009000

Unit Price

53
UNION, 3 WAY
UNION, 3 WAY

09367-08004-000   0936708004000

0936708004000

Unit Price

54
DISCONTINUE

09359-50823-00A  

093595082300A
Not available
55
CLAMP

09404-06419-000  

09404-06435-000
 0940406419000

Unit Price

99x
13200-19B84
DISCONTINUED

13200-19B80-000   1320019B80000

1320019B80000
Not available
99x
DISCONTINUE

13200-19B81-000  

1320019B81000
Not available
99x
DISCONTINUE

13200-19B90-000  

1320019B90000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 300 KINGQUAD 1993
