CYLINDER HEAD FOR SUZUKI KINGQUAD 300 1993

CYLINDER

Item numbers

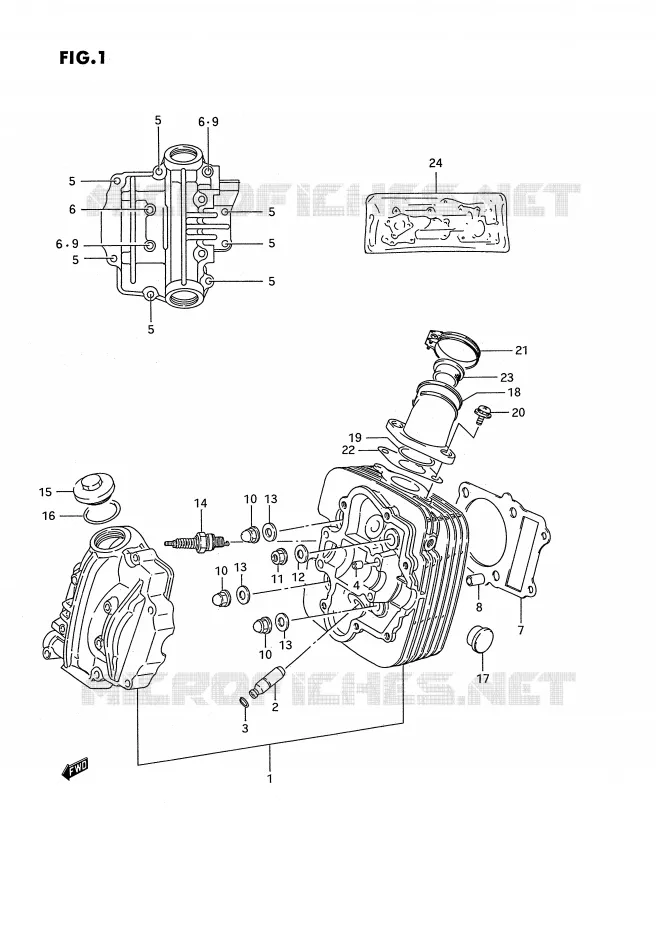

CYLINDER HEAD Suzuki QUAD 300 KINGQUAD 1993 LT-F4WDXP(E3)
2
2
1
HEAD ASSY, CYLINDER

11100-19B71-000   1110019B71000

1110019B71000

Unit Price

2
GUIDE, VALVE

11115-05270-000   1111505270000

1111505270000

Unit Price

3
RING, VALVE GUIDE
RING, VALVE GUIDE

09381-10004-000   0938110004000

0938110004000

Unit Price

4
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

5
BOLT

01517-06354-000  

01550-0635B-000
 0151706354000

Unit Price

6
BOLT

01517-06605-000  

01550-06603-000
 0151706605000

Unit Price

7
GASKET, CYLINDER HEAD

11141-25C04-000   1114125C04000

1114125C04000

Unit Price

8
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

9
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
10
NUT

09159-08064-000  

09159-08049-000
 0915908064000

Unit Price

10
NUT
NUT

09159-08074-000   0915908074000

0915908074000

Unit Price

11
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

12
WASHER(8.5X19X2.3)
WASHER

09160-08039-000   0916008039000

0916008039000

Unit Price

13
WASHER

09168-08012-000  

09168-08013-000
 0916808012000

Unit Price

13
GASKET (8.5X17X2.3)
GASKET (8.5X17X2.3)

09168-08021-000   0916808021000

0916808021000

Unit Price

14
DR7EA, NGK

09482-00182-000  

09482-00398-000
 0948200182000

Unit Price

15
CAP, INSPECTION

11175-32400-000  

11175-42A00-000
 1117532400000

Unit Price

15
CAP, INSPECTION
CAP, INSPECTION GN125/W-

11175-18900-000  

1117518900000
Not available
16
O RING,D:3 ID 29.5<br />O RING
O RING, D:3 ID 29.5
O RING

09280-30001-000   0928030001000

0928030001000

Unit Price

17
PLUG, CAM SHAFT
PLUG, HEAD

09241-22002-000   0924122002000

0924122002000

Unit Price

18
PIPE ASSY, INTAKE

13110-19B50-000  

13101-19B51-000
 1311019B50000

Unit Price

19
O RING
O RING

09280-35005-000   0928035005000

0928035005000

Unit Price

20
SCREW

02112-76203-000  

02112-7620B-000
 0211276203000

Unit Price

21
CLAMP

09402-50203-000  

09402-50208-000
 0940250203000

Unit Price

22
GASKET, INTAKE
GASKET, INTAKE PIPE

13120-19B01-000   1312019B01000

1312019B01000

Unit Price

23
DISCONTINUE
NET, INTAKE

13130-19B50-000   1313019B50000

1313019B50000
Not available
24
11401-19872

11400-19882-000  

1140019882000
Not available
24
11401-19872
DISCONTINUED

11401-19870-000   1140119870000

1140119870000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 300 KINGQUAD 1993

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 300 KINGQUAD 1993

Select your Suzuki 1993 model

300 KINGQUAD 1993 LT-F4WDXP(E3)

Suzuki KINGQUAD

Displacement: 300 cc
Year: 1993
Model code LT-F4WDXP(E3)
4WD
