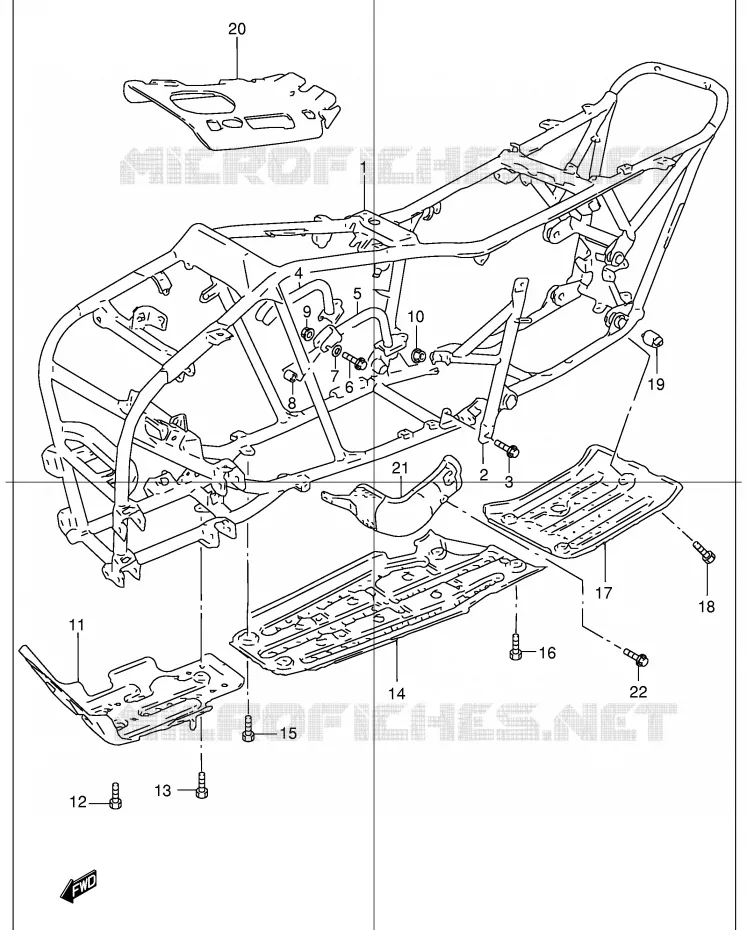

FRAME FOR SUZUKI KINGQUAD 300 2004

FOOTREST

Item numbers

FRAME SET (BLACK)

41101-39850-019 4110139850019

$2 280,97

Unit Price

41101-39850-019
FRAME SET (BLACK)

41101-39831-019 4110139831019

Not available

DISCONTINUE
FRAME SET (BLACK)

41101-39841-019

Not available

FRAME SET (BLACK)

41101-39860-019 4110139860019

Not available

TUBE, ENGINE MOUNT FR
PLATE, ENGINE MOUNT LH (BLACK)

41910-39D00-019 4191039D00019

$172,97

Unit Price

BOLT(10X20)
BOLT

09103-10165-000 0910310165000

$6,97

Unit Price

TUBE, COOLING FAN, R
TUBE, COOLING FAN RH

41970-19B20-000 4197019B20000

$71,97

Unit Price

TUBE, COOLING FAN, L
TUBE, COOLING FAN LH

41980-19B21-000 4198019B21000

$66,97

Unit Price

BOLT

01550-08353-000

01550-0835B-000

$5,97

Unit Price

WASHER(8.5X24X2.3)
WASHER

09160-08501-000 0916008501000

$3,97

Unit Price

F TANK RR SPACER
SPACER

09180-08067-000 0918008067000

$4,97

Unit Price

NUT

08316-10083-000

08316-1008B-000

$4,97

Unit Price

CAP, FR GRIP
CAP

43978-24500-000 4397824500000

$13,97

Unit Price

PROTECTOR, FR

42510-19B11-000

42510-19B12-000

$110,97

Unit Price

01580-0612B
BOLT, FRONT

01580-06123-000

Not available

BOLT

01580-06163-000

01580-0616A-000

$3,97

Unit Price

PROTECTOR, MIDDLE

42560-19B30-000

42560-19B31-000

$186,97

Unit Price

SCREW

02162-06253-000

02162-0625A-000

$2,97

Unit Price

01580-0625A
BOLT, FRONT

01580-06253-000 0158006253000

Not available

BOLT

01580-06163-000

01580-0616A-000

$3,97

Unit Price

02162-0616C
BOLT, REAR

02162-06163-000

Not available

PROTECTOR, ENGINE

61390-19B01-000

61390-19B02-000

$144,97

Unit Price

BOLT

01580-06163-000

01580-0616A-000

$3,97

Unit Price

BUSH.ENGINE MOUNTING
BUSH

09319-10064-000 0931910064000

$29,97

Unit Price

DISCONTINUE

47157-19B10-000

Not available

COVER, MUD

42570-39D00-000 4257039D00000

$284,97

Unit Price

01580-0612B
BOLT

01580-06123-000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki of KINGQUAD. Let us know if you have any questions.
