STARTER MOTOR CLUTCH

CAM SHAFT / VALVE FOR SUZUKI KINGQUAD 300 2004

TIMING

Item numbers

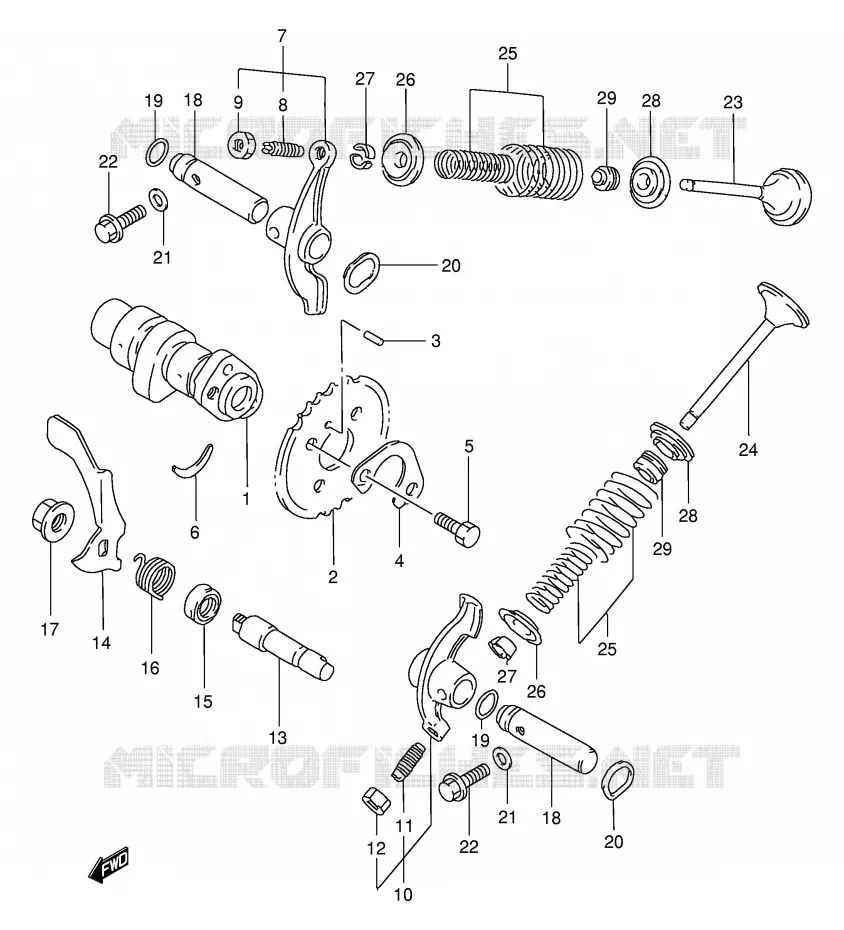

CAM SHAFT/VALVE Suzuki QUAD 300 KINGQUAD 2004 LT-F300FK4(E24)
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
20
21
21
22
22
22
22
23
24
25
25
26
26
27
27
28
28
29
29
1
SHAFT, CAM
CAM SHAFT

12711-19B70-000   1271119B70000

1271119B70000

Unit Price

2
SPROCKET, CAMSHAFT

12741-04B00-000  

12741-04B01-000
 1274104B00000

Unit Price

3
KNOCK PIN, SPROCKET
PIN

09261-05005-000   0926105005000

0926105005000

Unit Price

4
WASHER, SPROCKET

12747-05201-000  

12747-05202-000
 1274705201000

Unit Price

5
BOLT, SPROCKET
BOLT (6X10.5)

09111-06032-000   0911106032000

0911106032000

Unit Price

6
C-RING, CAM SHAFT
C RING

09390-22002-000   0939022002000

0939022002000

Unit Price

7
ARM ASSY, VALVE ROCKER
ARM, VALVE ROCKER, IN

12850-25C00-000   1285025C00000

1285025C00000

Unit Price

8
SCREW, TAPPET ADJUSTING
SCREW

12842-32411-000   1284232411000

1284232411000

Unit Price

9
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

10
ARM ASSY, VALVE ROCKER
ARM, VALVE ROCKER, EX

12850-25C00-000   1285025C00000

1285025C00000

Unit Price

11
SCREW, TAPPET ADJUSTING
SCREW

12842-32411-000   1284232411000

1284232411000

Unit Price

12
NUT, ADJUSTING SCREW
NUT

12843-32400-000   1284332400000

1284332400000

Unit Price

13
SHAFT, DECOMP

12941-19B00-000   1294119B00000

1294119B00000

Unit Price

14
LEVER, DECOMP SHAFT

12942-19B01-000   1294219B01000

1294219B01000

Unit Price

15
SEAL, OIL
OIL SEAL (10X17X6)

09282-10014-000   0928210014000

0928210014000

Unit Price

16
SPRING DECOMP LEVER
SPRING

09448-17014-000   0944817014000

0944817014000

Unit Price

17
NUT

08316-10083-000  

08316-1008B-000
 0831610083000

Unit Price

18
SHAFT, VALVE ROCKET
SHAFT, ROCKER ARM

12861-05201-000   1286105201000

1286105201000

Unit Price

19
O RING,ROCKER SHAFT<br />O RING (D:1.9,ID:8.6)
O RING, ROCKER SHAFT
O RING (D:1.9, ID:8.6)

09280-09005-000   0928009005000

0928009005000

Unit Price

20
WASHER,WAVE<br />WASHER
WASHER, WAVE
WASHER

09164-12021-000   0916412021000

0916412021000

Unit Price

21
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000
Not available
22
BOLT

01550-06253-000  

01550-0625A-000
 0155006253000

Unit Price

22
SCREW

02162-06253-000  

02162-0625A-000
 0216206253000

Unit Price

23
VALVE, INTAKE

12911-19B00-000   1291119B00000

1291119B00000

Unit Price

24
VALVE, EXHAUST

12912-18A00-000   1291218A00000

1291218A00000

Unit Price

25
SPRING SET, VALVE

12920-05210-000   1292005210000

1292005210000

Unit Price

26
RETAINER, VALVE SPRING

12931-49200-000  

12931-49201-000
 1293149200000

Unit Price

27
COTTER, VALVE
COTTER, VALVE

12932-24400-000   1293224400000

1293224400000

Unit Price

28
SEAT,VALVE SPRING<br />SEAT, SPRING
SEAT, VALVE SPRING
SEAT, SPRING

12933-49201-000   1293349201000

1293349201000

Unit Price

29
SEAL, OIL(5.5X11X8.2)
OIL SEAL (5.5X11X8.2)

09289-05015-000   0928905015000

0928905015000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAM SHAFT/VALVE of your Suzuki of KINGQUAD. Let us know if you have any questions.
