WIRING HARNESS (MODEL X / Y) REFER TO FIG.30A(F-4) FOR MODEL K1/K2/K4

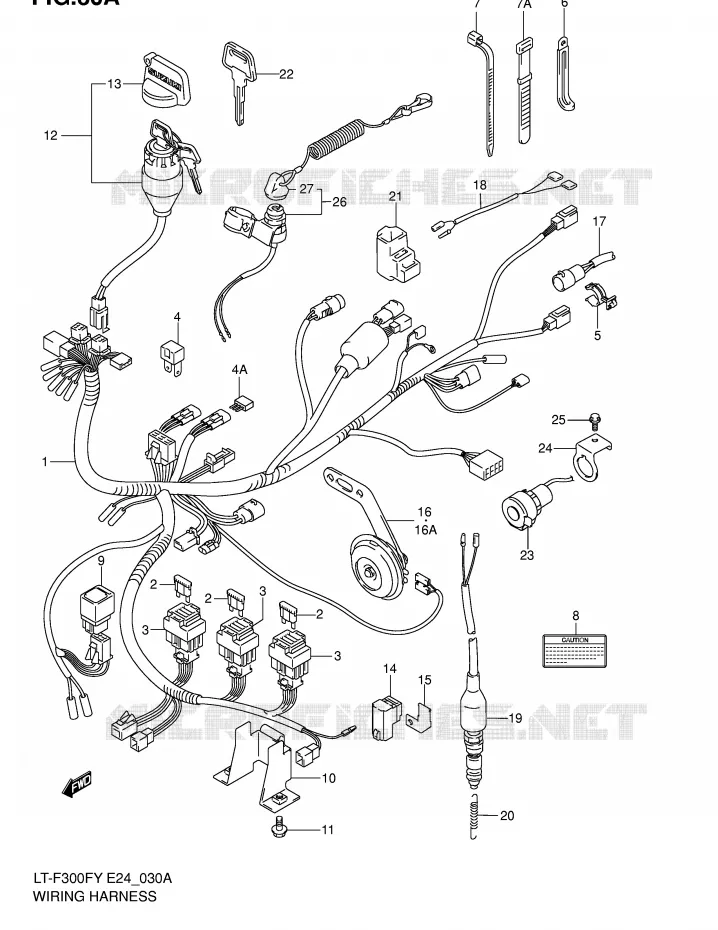

WIRING HARNESS (MODEL K1 / K2 / K4) FOR SUZUKI KINGQUAD 300 2004

BACKUP LAMP (OPTIONAL)

HARNESS, WIRING

36610-04G20-000 3661004G20000

Not available

HARNESS, WIRING

36610-04G30-000 3661004G30000

Not available

HARNESS, WIRING

36610-04G40-000 3661004G40000

Not available

HARNESS, WIRING

36610-39DP0-000 3661039DP0000

Not available

HARNESS, WIRING

36610-39DQ0-000 3661039DQ0000

Not available

FUSE (5A)

09481-05101-000 0948105101000

$2,97

Unit Price

FUSE (10A)

09481-10101-000 0948110101000

$2,97

Unit Price

FUSE (20A)

09481-20101-000 0948120101000

$2,97

Unit Price

HOLDER, FUSE
BAND, FUSE

36742-39D00-000 3674239D00000

$24,97

Unit Price

DIODE

36611-38A00-000

36611-38A10-000

$19,97

Unit Price

RECTIFIER ASSY
DIODE

32800-16A00-000 3280016A00000

$27,97

Unit Price

CLAMP

09403-16307-000 0940316307000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

FUEL HOSE CLAMP
CLAMP

09407-12402-000 0940712402000

$5,97

Unit Price

LABEL, CAUTION MAX AMP

38852-09F21-000 3885209F21000

$8,97

Unit Price

RELAY, NEUTRAL STARTER
RELAY, NEUTRAL START

38730-19B00-000 3873019B00000

$61,97

Unit Price

HOLDER, ELECTRIC PARTS FR
HOLDER, ELECTRIC FRONT

47410-19B00-000 4741019B00000

$15,97

Unit Price

BOLT (6X12)

09118-06103-000 0911806103000

Not available

SWITCH ASSY, IGNITION

37110-19B02-000

37110-19B03-000

$130,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$9,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

BRACKET, SIDE STAND RELAY
BRACKET, GEAR IN START

38741-05300-000 3874105300000

$8,97

Unit Price

DISCONTINUE
HORN ASSY

38500-09F01-000 3850009F01000

Not available

16A

HORN ASSY

38500-39D00-000 3850039D00000

Not available

PLUG ASSY, POWER SOURCE

39602-18A00-000 3960218A00000

$44,97

Unit Price

WIRE, BRAKE SW LEAD

36856-35B00-000

36856-35B01-000

$14,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-25C00-000

37740-25C01-000

$90,97

Unit Price

SPRING

09443-06023-000 0944306023000

$9,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

KEY, BLANK (TYPE:C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK (TYPE:D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

KEY, BLANK (TYPE:E)

37146-19B20-000 3714619B20000

$12,97

Unit Price

KEY, BLANK (TYPE:F)

37146-19B30-000 3714619B30000

$12,97

Unit Price

TERMINAL, POWER SOURCE

38850-09F00-000

38850-09F01-000

$108,97

Unit Price

BRACKET, POWER SOURCE

38855-09F00-000 3885509F00000

$11,97

Unit Price

BOLT

01550-06103-000

01550-0610B-000

$4,97

Unit Price

SWITCH ASSY, EMERGENCY

37820-19B00-000 3782019B00000

Not available

WIRE, EMERGENCY SWITCH

37825-24500-000 3782524500000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL K1/K2/K4) of your Suzuki of KINGQUAD. Let us know if you have any questions.
