Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HEAD LAMP

TJRN SIGNAL LAMP FOR SUZUKI BANDIT 400 1997

TAIL LIGHT ASSY

Item numbers

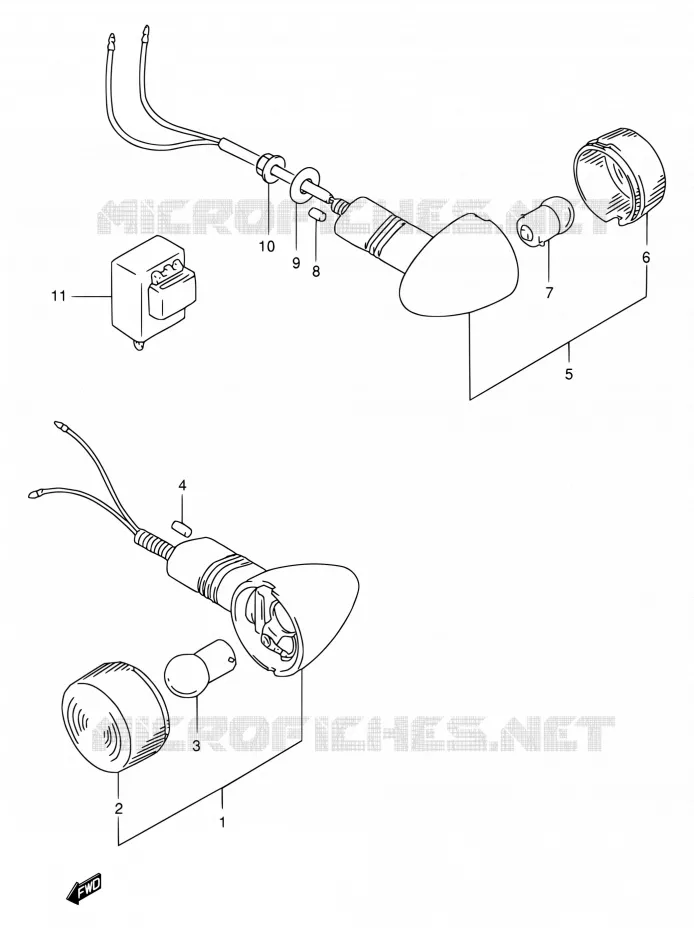

TJRN SIGNAL LAMP Suzuki MOTO 400 BANDIT 1997 GSF400VV
1
1
2
3
4
5
5
6
7
8
9
10
11
1
LAMP ASSY, FR TURN SIGNAL RH

35601-11D20-000   3560111D20000

3560111D20000
Not available
1
LAMP ASSY, FR TURN SIGNAL LH

35602-11D20-000   3560211D20000

3560211D20000
Not available
2
.LENS, TURN SIGNAL

35612-37D00-000   3561237D00000

3561237D00000
Not available
3
.BULB (12V,15W)
.BULB (12V, 15W)

09471-12162-000   0947112162000

0947112162000
Not available
4
PIN, CRANK BAL DRIVEN
PIN (D:4.5, L:9.5)

09202-04017-000   0920204017000

0920204017000

Unit Price

5
LAMP ASSY, REAR TURN SIGNAL RH

35603-11D00-000   3560311D00000

3560311D00000
Not available
5
LAMP ASSY, REAR TURN SIGNAL LH

35604-11D00-000   3560411D00000

3560411D00000
Not available
6
.LENS, TURN SIGNAL

35612-37D00-000   3561237D00000

3561237D00000
Not available
7
.BULB (12V,15W)
.BULB (12V, 15W)

09471-12162-000   0947112162000

0947112162000
Not available
8
PIN, CRANK BAL DRIVEN
PIN (D:4.5, L:9.5)

09202-04017-000   0920204017000

0920204017000

Unit Price

9
WASHER (8.5X24X2.3)

09160-08025-000   0916008025000

0916008025000
Not available
10
NUT

08310-00083-000  

08310-0008B-000
 0831000083000

Unit Price

11
RELAY ASSY, TURN SIGNAL LAMP

38610-47D00-000   3861047D00000

3861047D00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TJRN SIGNAL LAMP of your Suzuki of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 400 BANDIT 1997

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 400 BANDIT 1997

Select your Suzuki 1997 model

400 BANDIT 1997 GSF400VV

Suzuki BANDIT

Displacement: 400 cc
Year: 1997
Model code GSF400VV
