STARTER MOTOR CLUTCH

CAMSHAFT - VALVES FOR SUZUKI BANDIT 400 1997

TIMING

Item numbers

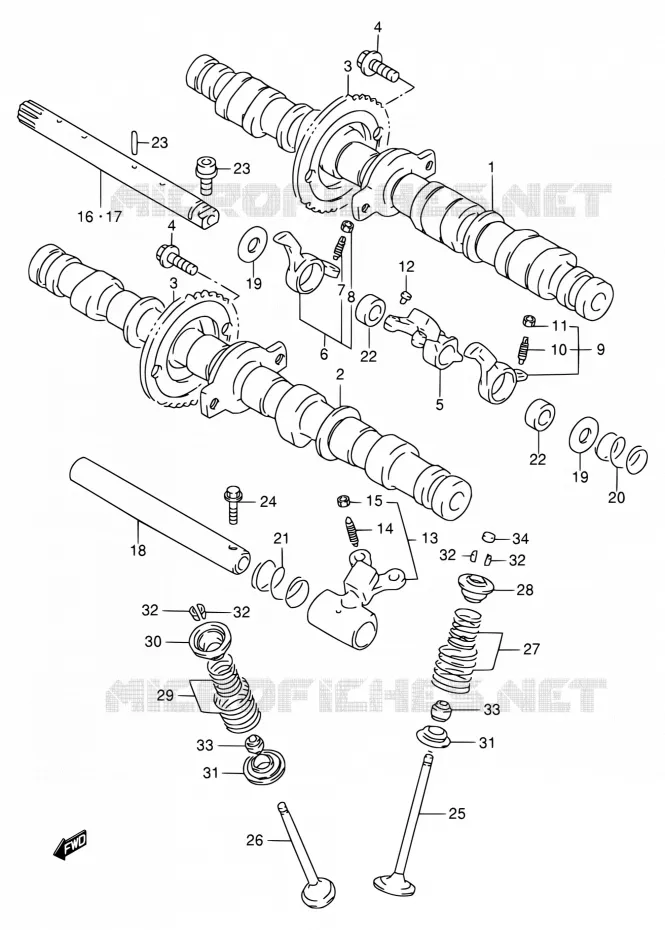

CAMSHAFT - VALVES Suzuki MOTO 400 BANDIT 1997 GSF400VV
1
2
3
3
4
4
5
6
7
8
9
10
11
12
12
12
12
12
12
12
12
12
12
12
12
12
13
14
15
16
17
18
19
19
20
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
32
32
32
33
33
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
1
CAM SHAFT, INTAKE

12711-33D31-000   1271133D31000

1271133D31000
Not available
2
CAM SHAFT, EXHAUST

12721-33D50-000   1272133D50000

1272133D50000
Not available
3
SPROCKET

12741-10D00-000   1274110D00000

1274110D00000
Not available
4
BOLT (7X9)

12742-11D10-000   1274211D10000

1274211D10000
Not available
5
ARM, VALVE ROCKER MAIN

12821-33D00-000   1282133D00000

1282133D00000
Not available
6
ARM, VALVE ROCKER SUB NO.1

12840-33D02-000   1284033D02000

1284033D02000
Not available
7
.SCREW

12842-33D00-000   1284233D00000

1284233D00000
Not available
8
NUT,TAPPET ADJUSTING<br />.NUT
NUT, TAPPET ADJUSTING
.NUT

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

9
ARM, VALVE ROCKER SUB NO.2

12850-33D02-000   1285033D02000

1285033D02000
Not available
10
.SCREW

12842-33D00-000   1284233D00000

1284233D00000
Not available
11
NUT,TAPPET ADJUSTING<br />.NUT
NUT, TAPPET ADJUSTING
.NUT

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

12
SHIM (T:1.65)

12845-33D00-165   1284533D00165

1284533D00165
Not available
12
SHIM (T:1.675)

12845-33D00-168   1284533D00168

1284533D00168
Not available
12
SHIM (T:1.70)

12845-33D00-170   1284533D00170

1284533D00170
Not available
12
SHIM (T:1.725)

12845-33D00-172   1284533D00172

1284533D00172
Not available
12
SHIM (T:1.75)

12845-33D00-175   1284533D00175

1284533D00175
Not available
12
SHIM (T:1.775)

12845-33D00-178   1284533D00178

1284533D00178
Not available
12
SHIM (T:1.80)

12845-33D00-180   1284533D00180

1284533D00180
Not available
12
SHIM (T:1.825)

12845-33D00-182   1284533D00182

1284533D00182
Not available
12
SHIM (T:1.85)

12845-33D00-185   1284533D00185

1284533D00185
Not available
12
SHIM (T:1.875)

12845-33D00-188   1284533D00188

1284533D00188
Not available
12
SHIM (T:1.90)

12845-33D00-190   1284533D00190

1284533D00190
Not available
12
SHIM (T:1.925)

12845-33D00-192   1284533D00192

1284533D00192
Not available
12
SHIM (T:1.95)

12845-33D00-195   1284533D00195

1284533D00195
Not available
13
ARM, VALVE ROCKER EXHAUST

12850-33D10-000   1285033D10000

1285033D10000
Not available
14
SCREW, TAPPET ADJUSTING
.SCREW

12842-32C00-000   1284232C00000

1284232C00000

Unit Price

15
NUT,TAPPET ADJUSTING<br />.NUT
NUT, TAPPET ADJUSTING
.NUT

12843-27A00-000   1284327A00000

1284327A00000

Unit Price

16
SHAFT, ROCKER ARM

12861-33D00-000   1286133D00000

1286133D00000
Not available
17
SHAFT, ROCKER ARM

12871-33D00-000   1287133D00000

1287133D00000
Not available
18
SHAFT, VALVE ROCKER ARM EXH

12871-33D11-000   1287133D11000

1287133D11000
Not available
19
WASHER

12866-33D00-000   1286633D00000

1286633D00000
Not available
20
SPRING

09440-15034-000   0944015034000

0944015034000
Not available
21
SPRING
SPRING

09440-17009-000   0944017009000

0944017009000

Unit Price

22
BUSH

12846-33D00-000   1284633D00000

1284633D00000
Not available
23
ROLLER(3X15.8)
ROLLER

09261-03009-000   0926103009000

0926103009000

Unit Price

24
BOLT

12865-33D00-000   1286533D00000

1286533D00000
Not available
25
VALVE, INTAKE

12911-33D00-000   1291133D00000

1291133D00000
Not available
26
VALVE, EXHAUST

12912-33D10-000   1291233D10000

1291233D10000
Not available
27
SPRING SET

12920-33D00-000   1292033D00000

1292033D00000
Not available
28
RETAINER

12931-33D01-000   1293133D01000

1293133D01000
Not available
29
SPRING SET

12920-32C01-000   1292032C01000

1292032C01000
Not available
30
DISCONTINUE
RETAINER

12931-32C01-000   1293132C01000

1293132C01000
Not available
31
SEAT, VALVE SPRING
SEAT

12933-33201-000   1293333201000

1293333201000

Unit Price

32
COTTER VALVE
COTTER

12932-32C00-000   1293232C00000

1293232C00000

Unit Price

33
OIL SEAL<br />OIL SEAL (4.5X10X8)
OIL SEAL
OIL SEAL (4.5X10X8)

09289-04002-000   0928904002000

0928904002000

Unit Price

34
SHIM,TAPPET(T:2.00)<br />SHIM (T:2.00)
SHIM, TAPPET(T:2.00)
SHIM (T:2.00)

12892-05C00-200   1289205C00200

1289205C00200

Unit Price

34
SHIM,TAPPET(T:2.05)<br />SHIM (T:2.05)
SHIM, TAPPET(T:2.05)
SHIM (T:2.05)

12892-05C00-205   1289205C00205

1289205C00205

Unit Price

34
SHIM,TAPPET(T:2.10)<br />SHIM (T:2.10)
SHIM, TAPPET(T:2.10)
SHIM (T:2.10)

12892-05C00-210   1289205C00210

1289205C00210

Unit Price

34
SHIM,TAPPET(T:2.15)<br />SHIM (T:2.15)
SHIM, TAPPET(T:2.15)
SHIM (T:2.15)

12892-05C00-215   1289205C00215

1289205C00215

Unit Price

34
SHIM,TAPPET(T:2.20)<br />SHIM (T:2.20)
SHIM, TAPPET(T:2.20)
SHIM (T:2.20)

12892-05C00-220   1289205C00220

1289205C00220

Unit Price

34
SHIM, TAPPET(T:2.25)
SHIM (T:2.25)

12892-05C00-225   1289205C00225

1289205C00225

Unit Price

34
SHIM, TAPPET(T:2.30)
SHIM (T:2.30)

12892-05C00-230   1289205C00230

1289205C00230

Unit Price

34
SHIM, TAPPET(T:2.35)
SHIM (T:2.35)

12892-05C00-235   1289205C00235

1289205C00235

Unit Price

34
SHIM, TAPPET(T:2.40)
SHIM (T:2.40)

12892-05C00-240   1289205C00240

1289205C00240

Unit Price

34
SHIM, TAPPET(T:2.45)
SHIM (T:2.45)

12892-05C00-245   1289205C00245

1289205C00245

Unit Price

34
SHIM, TAPPET(T:2.50)
SHIM (T:2.50)

12892-05C00-250   1289205C00250

1289205C00250

Unit Price

34
SHIM, TAPPET(T:2.60)
SHIM (T:2.60)

12892-05C00-260   1289205C00260

1289205C00260

Unit Price

34
SHIM, TAPPET(T:2.70)
SHIM (T:2.70)

12892-05C00-270   1289205C00270

1289205C00270

Unit Price

34
DISCONTINUE
SHIM (T:2.80)

12892-05C00-280   1289205C00280

1289205C00280
Not available
34
SHIM (T:2.90)

12892-05C00-290   1289205C00290

1289205C00290
Not available
34
SHIM (T:3.00)

12892-05C00-300   1289205C00300

1289205C00300
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 400 BANDIT 1997
