Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRACKCASE COVER FOR SUZUKI BANDIT 400 1997

CRACKCASE COVER

Item numbers

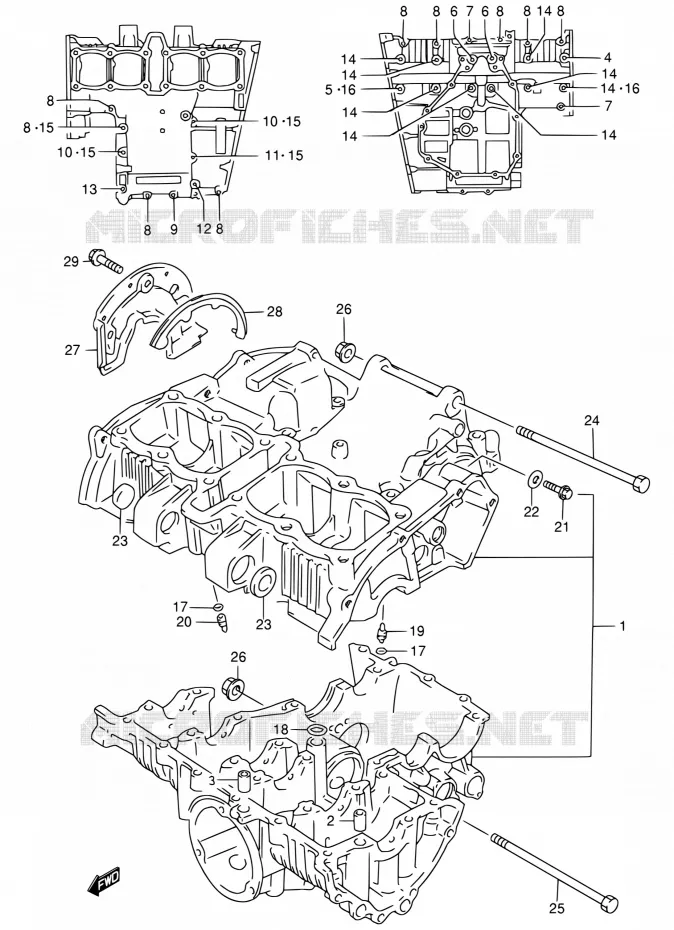

CRACKCASE COVER Suzuki MOTO 400 BANDIT 1997 GSF400VV
1
2
3
4
5
6
6
7
7
8
8
8
8
8
8
8
8
8
9
10
10
11
12
13
14
14
14
14
14
14
14
14
15
15
15
15
16
16
17
17
18
19
20
21
22
23
23
24
25
26
26
27
28
29
1
CRANKCASE SET

11301-33820-000   1130133820000

1130133820000
Not available
2
.PIN (11X20)
.PIN (11X20)

09206-11017-000   0920611017000

0920611017000

Unit Price

3
CLUTCH COVER PI **S1<br />.PIN (13X22)
CLUTCH COVER PI **S1
.PIN (13X22)

09206-13004-000   0920613004000

0920613004000

Unit Price

4
.BOLT (8X110)

09103-08239-000   0910308239000

0910308239000
Not available
5
BOLT
.BOLT (8X105)

09103-08179-000   0910308179000

0910308179000

Unit Price

6
BOLT

07130-08553-000  

07130-0855B-000
 0713008553000

Unit Price

7
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

8
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

9
BOLT

01550-06453-000  

01550-0645A-000
 0155006453000

Unit Price

10
BOLT

01550-06553-000  

01550-0655B-000
 0155006553000

Unit Price

11
BOLT

01550-06653-000  

01550-0665A-000
 0155006653000

Unit Price

12
DISCONTINUE
.BOLT

01550-06703-000  

0155006703000
Not available
13
BOLT

01550-08553-000  

01550-0855A-000
 0155008553000

Unit Price

14
.BOLT (8X95)
.BOLT (8X95)

09103-08105-000   0910308105000

0910308105000

Unit Price

15
GASKET,OIL GALLERY<br />.GASKET
GASKET, OIL GALLERY
.GASKET

09168-06018-000   0916806018000

0916806018000

Unit Price

16
GASKET,8.2X14X1<br />.GASKET
GASKET, 8.2X14X1
.GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

17
O RING<br />.O RING (D:1.2,ID:4)
O RING
.O RING (D:1.2, ID:4)

09280-04004-000   0928004004000

0928004004000

Unit Price

18
ENG OIL PUMP O RING<br />.O RING (D:1.9,ID:13)
ENG OIL PUMP O RING
.O RING (D:1.9, ID:13)

09280-13004-000   0928013004000

0928013004000

Unit Price

19
JET, OIL GALLERY
.JET, OIL GALLY MISSION

09493-80005-000   0949380005000

0949380005000

Unit Price

20
.JET, OIL PISTON

09493-80007-000   0949380007000

0949380007000
Not available
21
BOLT

01550-06103-000  

01550-0610B-000
 0155006103000

Unit Price

22
GASKET,OIL GALLERY<br />.GASKET
GASKET, OIL GALLERY
.GASKET

09168-06018-000   0916806018000

0916806018000

Unit Price

23
PLUG(OD:25)
PLUG

09241-25005-000   0924125005000

0924125005000

Unit Price

24
BOLT (10X135)

09103-10085-000   0910310085000

0910310085000
Not available
25
BOLT (10X145)

09103-10135-000   0910310135000

0910310135000
Not available
26
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

27
COVER, BREATHER

11317-33D01-000   1131733D01000

1131733D01000
Not available
28
GASKET

11318-33D00-000   1131833D00000

1131833D00000
Not available
29
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRACKCASE COVER of your Suzuki of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 400 BANDIT 1997
