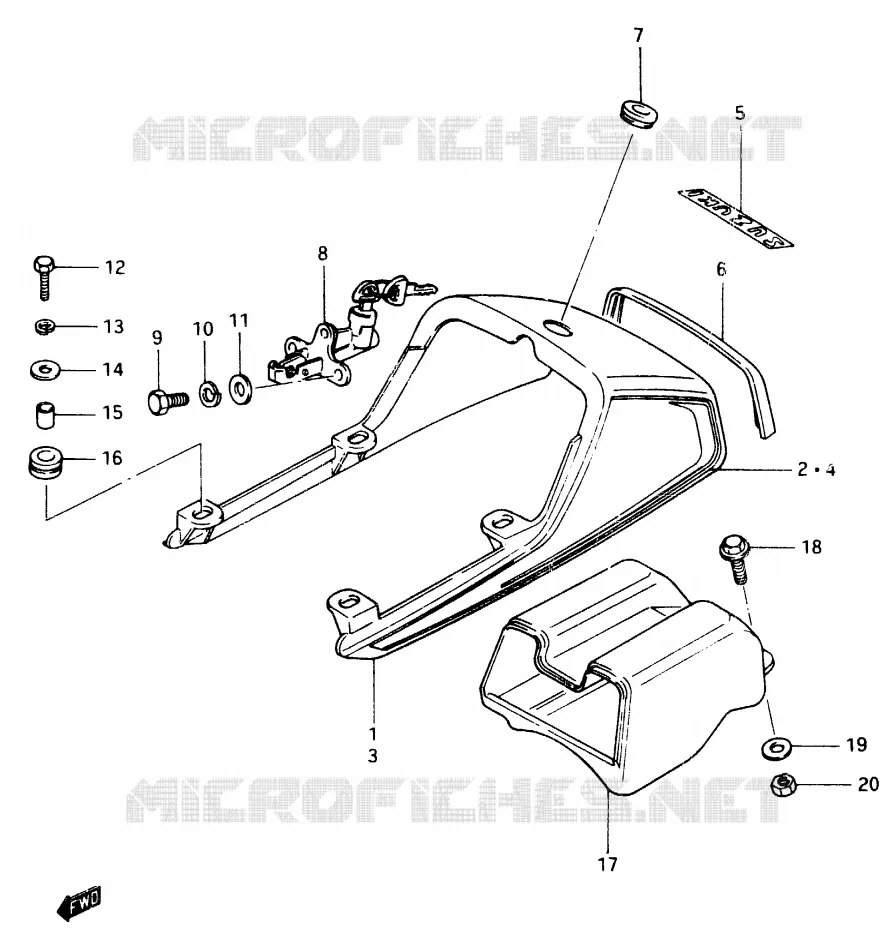

REAR FAIRING - SEAT COWL FOR SUZUKI GSX 400 1983

FAIRING

REAR FAIRING - SEAT COWL Suzuki MOTO 400 GSX 1983 GSX400FD
1
COVER, SEAT TAIL (BLUE)

45511-33200-05K   455113320005K

455113320005K
Not available
2
TAPE SET, SEAT TAIL COVER

68160-33230-73F   681603323073F

681603323073F
Not available
3
COVER, SEAT TAIL (RED)

45511-33200-07P   455113320007P

455113320007P
Not available
4
TAPE SET, SEAT TAIL COVER

68160-33230-73K   681603323073K

681603323073K
Not available
5
EMBLEM

68166-33200-742   6816633200742

6816633200742
Not available
6
CUSHION

45562-33200-000   4556233200000

4556233200000
Not available
7
GROMMET,SEAT LOCK HOLE<br />GROMMET
GROMMET, SEAT LOCK HOLE
GROMMET

45522-49200-000   4552249200000

4552249200000

Unit Price

8
DISCONTINUE
LOCK SET, SEAT

95700-49830-000   9570049830000

9570049830000
Not available
9
BOLT, FRONT

01107-06128-000   0110706128000

0110706128000
Not available
10
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
11
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
12
BOLT, RETURN

01107-06258-000   0110706258000

0110706258000
Not available
13
LOCK WASHER

08321-21068-000   0832121068000

0832121068000
Not available
14
WASHER(6.5X22X1.6)
WASHER(6.5X22X1.6)

09160-06012-000  

09160-06054-000
 0916006012000

Unit Price

15
HOUSING UP SPACER<br />SPACER
HOUSING UP SPACER
SPACER

09180-07004-000   0918007004000

0918007004000

Unit Price

16
CUSHION

09320-10011-000  

09320-10072-000
 0932010011000

Unit Price

17
BOX, SEAT TAIL

94991-33200-000   9499133200000

9499133200000
Not available
18
BOLT, REAR

01517-06168-000   0151706168000

0151706168000
Not available
19
WASHER

08322-21068-000   0832221068000

0832221068000
Not available
20
.NUT

08319-31068-000   0831931068000

0831931068000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR FAIRING - SEAT COWL of your Suzuki of GSX. Let us know if you have any questions.
