TAIL LIGHT (E16, E26)

TAIL LIGHT (E17) FOR SUZUKI GSX 400 1983

TAIL LIGHT (E25)

LAMP, REAR COMBINATION

35710-49071-000 3571049071000

Not available

LENS

35712-49071-000 3571249071000

Not available

DISCONTINUE
GASKET

35713-49030-000 3571349030000

Not available

BULB (12V, 21/5W)

09471-12057-000 0947112057000

Not available

09471-12140
BULB (12V, 5W)

09471-12058-000

Not available

SCREW

35627-49030-000

03511-04163-000

$2,97

Unit Price

GASKET

35627-43010-000 3562743010000

$3,97

Unit Price

WASHER(6.5X18X1.6)

09160-06007-000

09160-06084-000

$3,97

Unit Price

FRM RH COVER CUSHION
CUSHION

09320-09004-000 0932009004000

$4,97

Unit Price

CUSHION

09320-09003-000 0932009003000

$3,97

Unit Price

WASHER(6.5X22X1.6)

09160-06012-000

09160-06054-000

$2,97

Unit Price

FENDER FRONT SPACER
SPACER (6.1X9X7.5)

09180-06038-000 0918006038000

$2,97

Unit Price

NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000 0831011068000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

DISCONTINUE

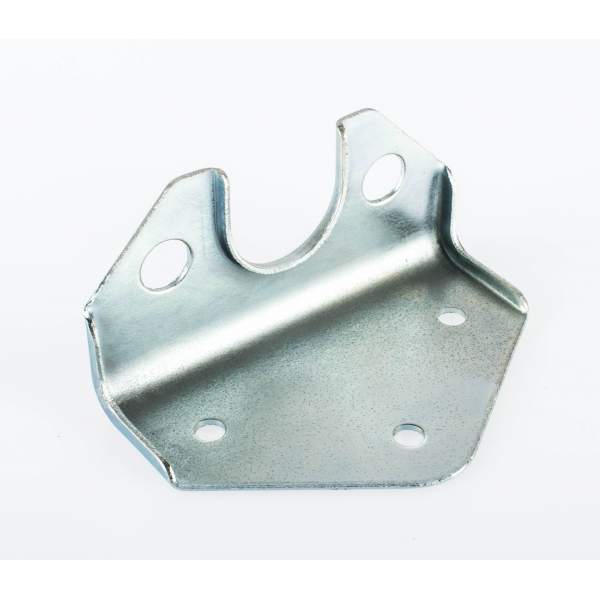

BRACKET, TAIL LAMP

35726-33200-000 3572633200000

Not available

F FORK COVER WASHER
WASHER

09169-06016-000 0916906016000

$2,97

Unit Price

WASHER 6.5X10X1.2

09160-06060-000

09160-06077-000

$3,97

Unit Price

BOLT, ADJUSTER

01107-06208-000 0110706208000

Not available

BOLT, FENDER REAR

01107-06168-000 0110706168000

Not available

NUT

08316-26068-000

08316-10067-000

$3,97

Unit Price

BRACKET, LICENSE PLATE

35927-33200-000 3592733200000

Not available

BOLT, REAR

01517-06168-000 0151706168000

Not available

LOCK WASHER

08321-21068-000 0832121068000

Not available

NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000 0831011068000

Not available

REFLEX REFLECTOR, REAR

35970-46110-000 3597046110000

Not available

WASHER, 5.2X16X1
WASHER

09160-05013-000 0916005013000

$2,97

Unit Price

NUT

08310-11058-000

08310-00057-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (E17) of your Suzuki of GSX. Let us know if you have any questions.
