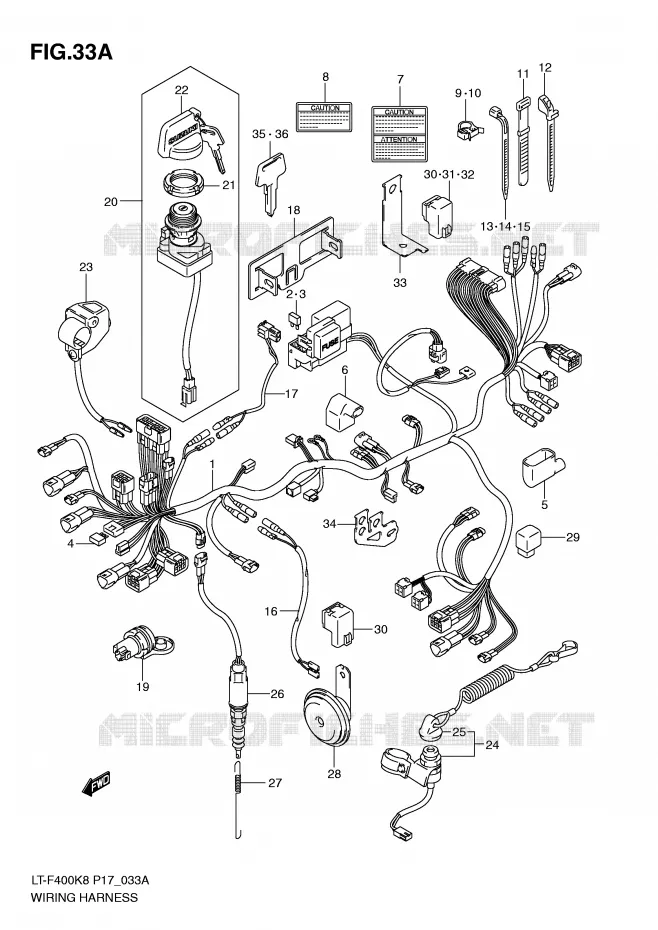

WIRING HARNESS (MODEL K8 / K9) REFER TO FIG.33A(F- 4) FOR MODEL L0

WIRING HARNESS (MODEL L0) FOR SUZUKI KINGQUAD 400 2009

* CATALOG PREFACE *

Item numbers

WIRING HARNESS
HARNESS, WIRING

36610-27HA0-000 3661027HA0000

$710,97

Unit Price

WIRING HARNESS
HARNESS, WIRING

36610-27HB0-000 3661027HB0000

$783,97

Unit Price

FUSE (10A)

09481-10501-000

Not available

FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

DIODE

36611-38A00-000

36611-38A10-000

$19,97

Unit Price

BOOT, ECU COUPLER

36618-25H00-000 3661825H00000

$7,97

Unit Price

BOOT, CONNECTOR

36618-27H00-000 3661827H00000

$4,97

Unit Price

LABEL, CAUTION MAX AMP

38852-03G10-000 3885203G10000

$14,97

Unit Price

LABEL, CAUTION MAX AMP

38852-09F30-000 3885209F30000

$10,97

Unit Price

CLAMP
CLAMP, WIRING HARNESS

09403-20403-000 0940320403000

$5,97

Unit Price

CLAMP
CLAMP, WIRING HARNESS

09403-30403-000 0940330403000

$8,97

Unit Price

FUEL HOSE CLAMP
CLAMP (L:120)

09407-12402-000 0940712402000

$5,97

Unit Price

CLAMP
CLAMP (L:116)

09407-12407-000 0940712407000

$5,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000 0940718402000

$3,97

Unit Price

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$8,97

Unit Price

WIRE, HORN LEAD

36852-09F00-000 3685209F00000

$17,97

Unit Price

WIRE, BRAKE SW LEAD

36856-35B00-000

36856-35B01-000

$14,97

Unit Price

BRACKET, FUSE BOX

36744-38F00-000 3674438F00000

$9,97

Unit Price

TERMINAL, POWER SOURCE

38850-03G10-000 3885003G10000

$72,97

Unit Price

SWITCH ASSY, IGNITION

37110-38F00-000

37110-38F01-000

$106,97

Unit Price

NUT, IGNITION SWITCH
NUT

37112-24500-000 3711224500000

$13,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$9,97

Unit Price

SWITCH ASSY, HORN

37830-18A00-000

37830-27H00-000

$48,97

Unit Price

SWITCH ASSY, EMERGENCY

37820-19B00-000 3782019B00000

Not available

WIRE, EMERGENCY SWITCH

37825-24500-000 3782524500000

Not available

SWITCH ASSY, STOP LAMP

37740-38F01-000 3774038F01000

$109,97

Unit Price

BRAKE SWITCH SPRING
SPRING, STOP LAMP

09443-06016-000 0944306016000

$5,97

Unit Price

HORN ASSY

38502-21E02-000 3850221E02000

$75,97

Unit Price

RELAY, NEUTRAL START

38730-09F00-000 3873009F00000

$44,97

Unit Price

RELAY ASSY, SIDE STAND

38740-26E00-000

38740-26E01-000

$37,97

Unit Price

PLEASE ORDER 38740-31G10

38740-31G10-000

38740-31G11-000

$39,97

Unit Price

PLEASE ORDER 38740-31G10

38740-31G10-000

38740-31G11-000

$39,97

Unit Price

BRACKET, BACK LAMP
BRACKET, BACK LAMP RELAY

38741-27H00-000 3874127H00000

$9,97

Unit Price

BRACKET, RELAY

38741-27H10-000 3874127H10000

Not available

KEY, BLANK (TYPE:C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK (TYPE:D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (MODEL L0) of your Suzuki KINGQUAD 400 2WD of KINGQUAD. Let us know if you have any questions.

Select your Suzuki 2009 model
