CYLINDER

CRANKCASE FOR SUZUKI KINGQUAD 400 2009

CRANKCASE COVER

Item numbers

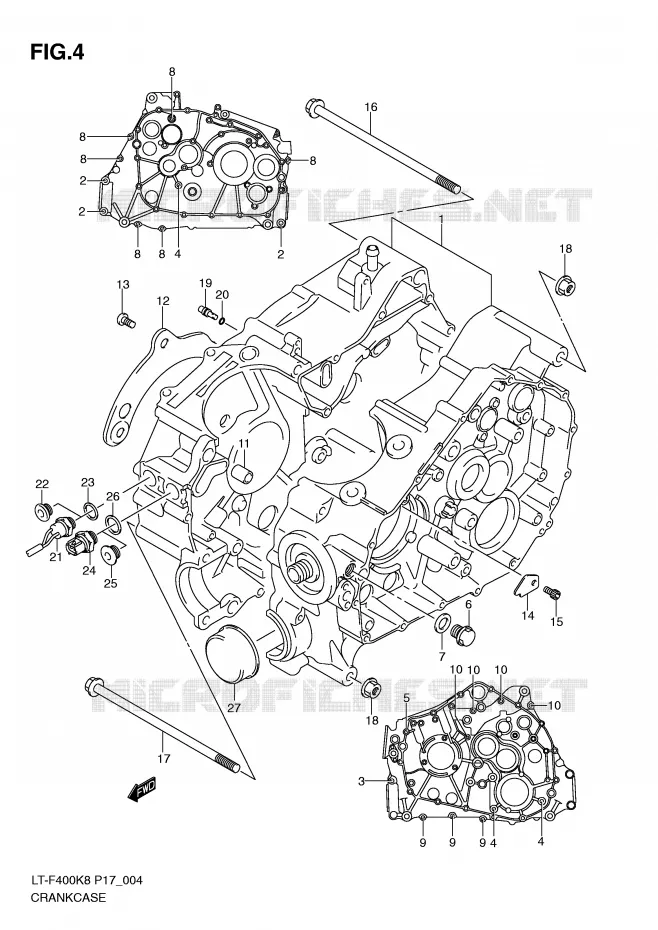

CRANKCASE Suzuki QUAD 400 KINGQUAD 2009 LT-F400K9(P17)
1
2
2
2
3
4
4
4
5
6
7
8
8
8
8
8
8
9
9
9
10
10
10
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
1
CRANKCASE SET

11302-38852-000   1130238852000

1130238852000

Unit Price

2
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

3
BOLT

09103-08081-000  

01550-08507-000
 0910308081000

Unit Price

4
BOLT (8X85)

09103-08300-000   0910308300000

0910308300000

Unit Price

5
BOLT (8X60)

09103-08217-000   0910308217000

0910308217000

Unit Price

6
PLUG, PRESSURE SW
PLUG, OIL PRESSURE

09247-14015-000   0924714015000

0924714015000

Unit Price

7
GASKET,13.8X18.8X0.4<br />GASKET, OIL PRESSURE PLUG
GASKET, 13.8X18.8X0.4
GASKET, OIL PRESSURE PLUG

09168-14002-000   0916814002000

0916814002000

Unit Price

8
BOLT
BOLT

01547-0645B-000   015470645B000

015470645B000

Unit Price

9
BOLT
BOLT

01547-0645B-000   015470645B000

015470645B000

Unit Price

10
BOLT
BOLT

01547-0670B-000   015470670B000

015470670B000

Unit Price

11
PIN<br />PIN, CRANKCASE
PIN
PIN, CRANKCASE

04211-13189-000   0421113189000

0421113189000

Unit Price

12
PLATE, OIL GUIDE

11317-38F10-000   1131738F10000

1131738F10000

Unit Price

13
SCREW<br />SCREW, OIL GUIDE PLATE
SCREW
SCREW, OIL GUIDE PLATE

02112-0612B-000   021120612B000

021120612B000

Unit Price

14
PLATE, OIL GUIDE, L
PLATE, OIL GUIDE LH

11323-38F00-000   1132338F00000

1132338F00000

Unit Price

15
SCREW<br />BOLT, OIL GUIDE PLATE LH
SCREW
BOLT, OIL GUIDE PLATE LH

02112-0612B-000   021120612B000

021120612B000

Unit Price

16
BOLT, ENG MTG, L195
BOLT (10X195)

09103-10118-000   0910310118000

0910310118000

Unit Price

17
09103-10136
BOLT (10X180)

11611-03G00-000   1161103G00000

1161103G00000
Not available
18
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

19
JET, OIL GALLERY(16)
JET, OIL GALLERY MISSION

09493-32006-000   0949332006000

0949332006000

Unit Price

20
O RING<br />O RING, OIL GALLERY MISSION JET
O RING
O RING, OIL GALLERY MISSION JET

09280-04004-000   0928004004000

0928004004000

Unit Price

21
SWITCH, COOLING FAN

17680-19B70-000   1768019B70000

1768019B70000

Unit Price

22
PLUG,OIL<br />PLUG (16X8)
PLUG, OIL
PLUG (16X8)

09248-16012-000   0924816012000

0924816012000

Unit Price

23
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-16002-000   0916816002000

0916816002000

Unit Price

24
SWITCH, OIL LAMP

17680-39D10-000  

17680-39D11-000
 1768039D10000

Unit Price

25
PLUG, M18
PLUG (18X8)

09248-18011-000   0924818011000

0924818011000

Unit Price

26
GASKET, OIL LAMP SWIT
GASKET

09168-18009-000   0916818009000

0916818009000

Unit Price

27
PLUG, CRANKCASE
PLUG, OUTPUT SHAFT HOLE

11331-44D00-000   1133144D00000

1133144D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki KINGQUAD 400 2WD of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 400 KINGQUAD 2009
