HEADLIGHT (MODEL K3 / K4) REFER TO FIG.28A(E-13) FOR MODEL K5/K6

HEADLIGHT (MODEL K5 / K6) FOR SUZUKI BURGMAN 400 2003

TAIL LIGHT

Item numbers

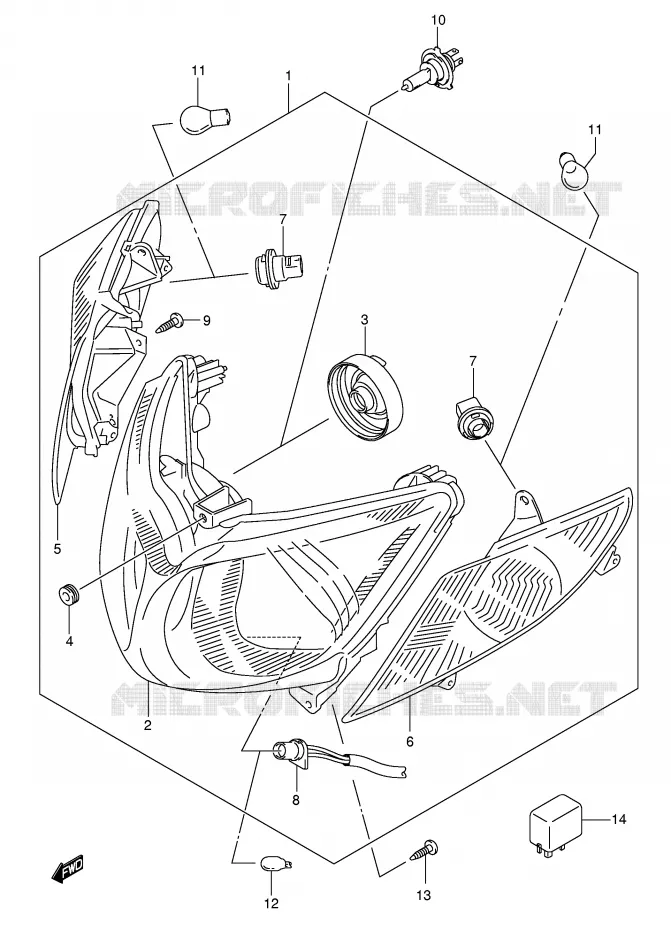

HEADLIGHT (MODEL K5/K6) Suzuki SCOOTER 400 BURGMAN 2003 AN400K3(E2)

1

LAMP ASSY, FRONT COMB

35100-14G70-999 3510014G70999

Not available

1

LAMP ASSY, FRONT COMB

35100-14G90-999 3510014G90999

Not available

2

HEADLAMP

35101-14G20-999 3510114G20999

Not available

2

HEADLAMP

35101-14G50-999 3510114G50999

Not available

3

COVER

35173-14G00-000 3517314G00000

$18,97

Unit Price

4

CUSHION(6.5X14X6)

09320-06016-000

09320-06027-000

$4,97

Unit Price

5

TURNSIGNAL, RH

35605-14G90-999 3560514G90999

Not available

6

TURNSIGNAL, LH

35606-14G90-999 3560614G90999

Not available

7

SOCKET

35618-74G00-000 3561874G00000

Not available

8

DISCONTINUE
CORD ASSY

36118-24F50-000 3611824F50000

Not available

9

SCREW

03541-05163-000

03541-0516B-000

$3,97

Unit Price

10

BULB(12V35/36.5W)
BULB (12V35/35W, HS1)

09471-12101-000

Not available

11

BULB(12V55W/H7/PX26D/PHILIPS)
BULB (12V21W)

09471-12186-000 0947112186000

$13,97

Unit Price

12

09471-12216
BULB (12V, 5W)

09471-12081-000

Not available

13

SCREW

03541-05163-000

03541-0516B-000

$3,97

Unit Price

14

RELAY ASSY, TURNSIGNAL LAMP

38610-03F00-000

38610-03F01-000

$105,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (MODEL K5/K6) of your Suzuki of BURGMAN. Let us know if you have any questions.
