OIL PUMP FOR SUZUKI BURGMAN 400 2003

FUEL PUMP

Item numbers

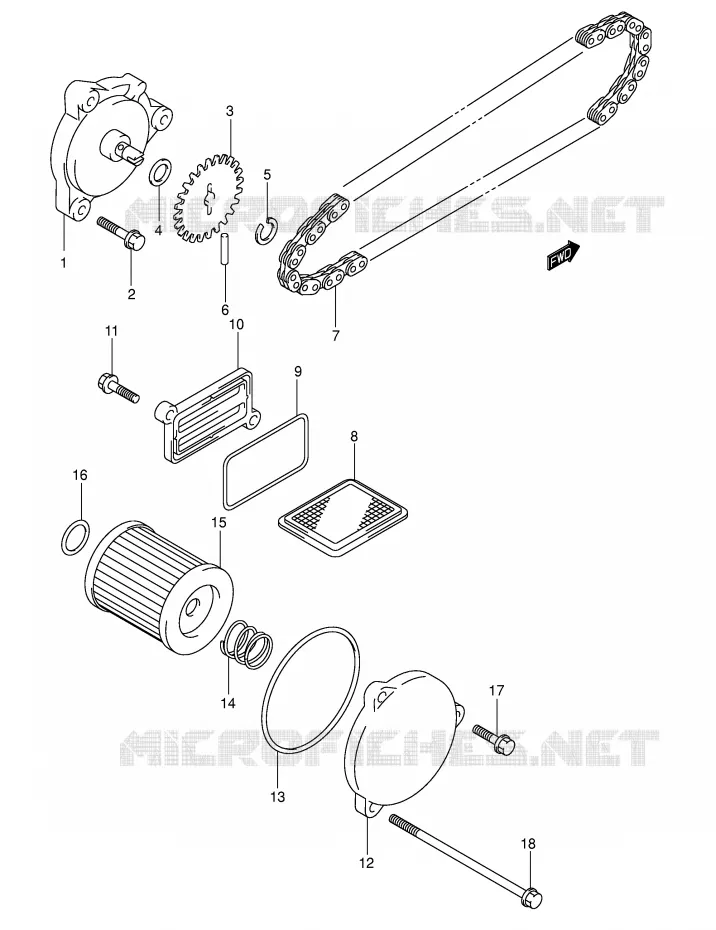

OIL PUMP Suzuki SCOOTER 400 BURGMAN 2003 AN400K3(E2)

1

DISCONTINUE
PUMP ASSY, ENG OIL

16400-14F00-000 1640014F00000

Not available

2

BOLT

01547-06253-000

01547-0625B-000

$3,97

Unit Price

3

DISCONTINUE
SPROCKET, OIL PUMP DRIVEN

16331-14F00-000 1633114F00000

Not available

4

SHIM, 10X18X0.5

09181-10158-000 0918110158000

$3,97

Unit Price

5

CIRCLIP

08331-31106-000

08331-31109-000

$2,97

Unit Price

6

GR SHIFT CAM DR PIN
PIN

09261-04009-000 0926104009000

$2,97

Unit Price

7

CHAIN, OIL PUMP DRIVE
CHAIN ASSY, OIL PUMP DRIVE

16310-14F00-000 1631014F00000

$37,97

Unit Price

8

STRAINER COMP, ENGINE

16520-30A00-000

16520-30A01-000

$18,97

Unit Price

9

O RING, OIL STRAINER CAP

16528-14F00-000 1652814F00000

$41,97

Unit Price

10

DISCONTINUE
CAP, OIL STRAINER

16523-14F02-000 1652314F02000

Not available

11

BOLT

01547-06203-000

01547-0620B-000

$4,97

Unit Price

12

CAP, OIL FILTER

16512-49E00-000 1651249E00000

$39,97

Unit Price

13

O-RING, OIL FLT CAP
O RING (D:2.4, ID:52.6)

09280-54001-000 0928054001000

$6,97

Unit Price

14

SPRING

09440-18002-000 0944018002000

$1,97

Unit Price

15

FILTER ASSY, ENGINE OIL
FILTER, ENGINE OIL

16510-25C00-000 1651025C00000

$12,97

Unit Price

16

ENG OIL PUMP O RING
O RING (D:1.9, ID:13)

09280-13004-000 0928013004000

$3,97

Unit Price

17

BOLT

01547-06163-000

01547-0616B-000

$4,97

Unit Price

18

BOLT

01547-06803-000

01547-0680B-000

$5,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the OIL PUMP of your Suzuki of BURGMAN. Let us know if you have any questions.
