CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI RM-Z 450 2012

CYLINDER

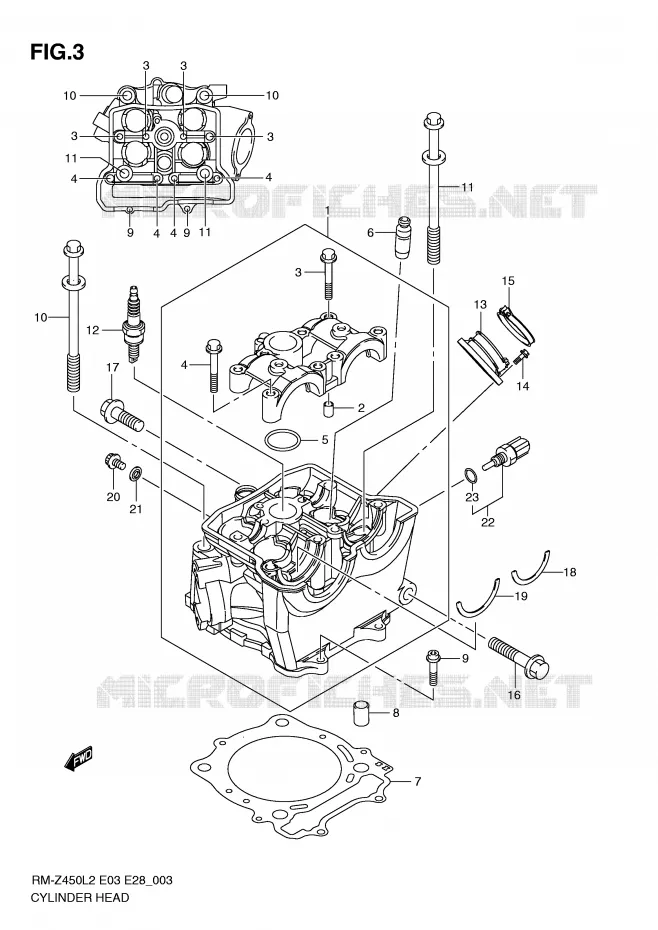

CYLINDER HEAD Suzuki MOTO 450 RM-Z 2012 RM-Z450L2(E3)
1
HEAD ASSY, CYLINDER

11100-28H10-000  

11100-28H12-000
 1110028H10000

Unit Price

2
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

3
BOLT, CAMSHAFT HOUSIN
BOLT (6X40)

09103-06266-000   0910306266000

0910306266000

Unit Price

4
BOLT, 6X45
BOLTG (6X45)

09103-06293-000   0910306293000

0910306293000

Unit Price

5
O RING<br />O RING (D:2.4,ID:25.7)
O RING
O RING (D:2.4, ID:25.7)

09280-26007-000   0928026007000

0928026007000

Unit Price

6
GUIDE, VALVE(OS:0.3)
GUIDE, VALVE (OS.0.3)

11115-45G70-000   1111545G70000

1111545G70000

Unit Price

7
GASKET, CYLINDER HEAD

11141-28H00-000   1114128H00000

1114128H00000

Unit Price

8
PIN
PIN

04211-13189-000   0421113189000

0421113189000

Unit Price

9
BOLT
BOLT

07120-0625A-000   071200625A000

071200625A000

Unit Price

10
BOLT, CYLINDER HEAD(L:140)
BOLT, CYLINDER HEAD (10X140)

11117-28H00-000   1111728H00000

1111728H00000

Unit Price

11
BOLT, CYLINDER HEAD(L:120)
BOLT, CYLINDER HEAD (10X145)

11161-45G00-000   1116145G00000

1116145G00000

Unit Price

12
PLUG, SPARK(DIMR8C10)

09482-00600-000  

09482-00660-000
 0948200600000

Unit Price

13
PIPE ASSY, INTAKE

13101-28H00-000  

13101-28H01-000
 1310128H00000

Unit Price

14
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

15
CLAMP, INTAKE PIPE

13170-35G00-000  

13170-35G01-000
 1317035G00000

Unit Price

16
BOLT (10X43)

09103-10116-000   0910310116000

0910310116000

Unit Price

17
BOLT (10X30)

09103-10359-000   0910310359000

0910310359000

Unit Price

18
C RING, CAMSHAFT
C RING, INTAKE

12749-35G01-000   1274935G01000

1274935G01000

Unit Price

19
C RING, CAMSHAFT
C RING, EXHAUST

12749-10H00-000   1274910H00000

1274910H00000

Unit Price

20
BOLT

07120-0610A-000  

07120-0610B-000
 071200610A000

Unit Price

21
GASKET<br />GASKET (5.8X13X1.2)
GASKET
GASKET (5.8X13X1.2)

09168-06023-000   0916806023000

0916806023000
Not available
22
SENSOR, WATER TEMP

13650-14G00-000   1365014G00000

1365014G00000

Unit Price

23
O RING

13655-14G00-000   1365514G00000

1365514G00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 450 RM-Z 2012

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 450 RM-Z 2012

Select your Suzuki 2012 model

450 RM-Z 2012 RM-Z450L2(E3)

Suzuki RM-Z

Displacement: 450 cc
Year: 2012
Model code RM-Z450L2(E3)
