CLUTCH

TRANSMISSION FOR SUZUKI RM-Z 450 2012

GEAR SHIFTING ASSY

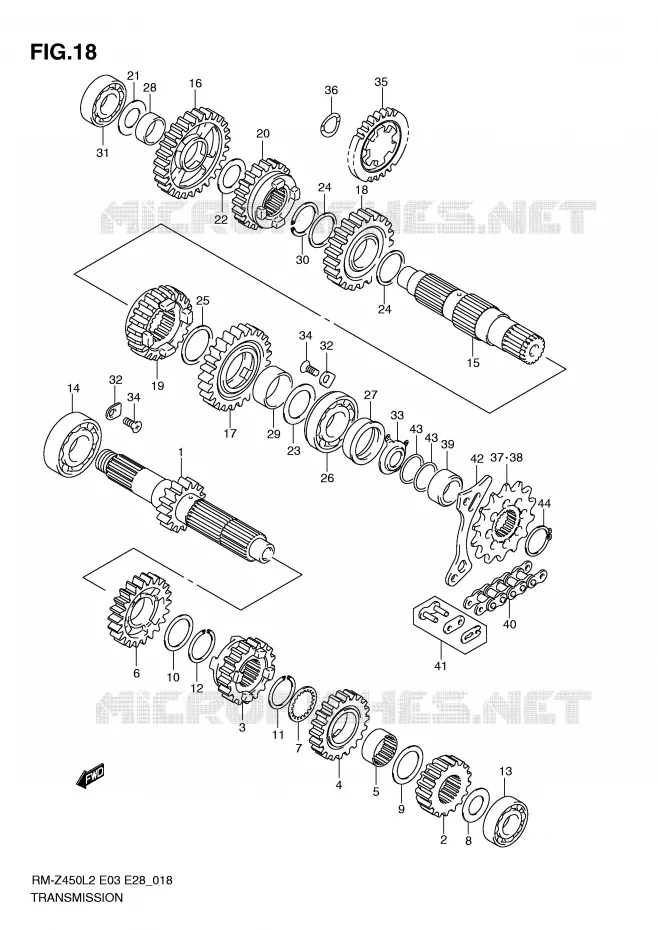

TRANSMISSION Suzuki MOTO 450 RM-Z 2012 RM-Z450L2(E3)
1
SHAFT, COUNTER

24120-28H00-000  

24120-28H01-000
 2412028H00000

Unit Price

2
GEAR, 2ND DRIVE
GEAR, 2ND DRIVE (NT:17)

24221-28H00-000   2422128H00000

2422128H00000

Unit Price

3
GEAR, 3RD DRIVE

24231-28H10-000  

24231-28H20-000
 2423128H10000

Unit Price

4
GEAR, 4TH DRIVE
GEAR, 4TH DRIVE (NT:20)

24241-28H01-000   2424128H01000

2424128H01000

Unit Price

5
BUSH, 4TH DRIVE GEAR

24242-37F00-000   2424237F00000

2424237F00000

Unit Price

6
GEAR, 5TH DRIVE
GEAR, 5TH DRIVE (NT:22)

24251-28H00-000   2425128H00000

2425128H00000

Unit Price

7
WASHER, 25X31X1.0
LOCK WASHER

09167-25026-000   0916725026000

0916725026000

Unit Price

8
SHIM
SHIM (17X30X1)

09181-17223-000   0918117223000

0918117223000

Unit Price

9
WASHER, 5TH DRIVE GEA

09181-25059-000  

09181-25167-000
 0918125059000

Unit Price

10
SHIM (25X32X1)

09181-25139-000   0918125139000

0918125139000

Unit Price

11
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

12
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

13
BEARING

08123-62030-000  

08123-6203A-000
 0812362030000

Unit Price

14
BEARING

08143-62057-000   0814362057000

0814362057000

Unit Price

15
SHAFT, DRIVE

24131-28H00-000   2413128H00000

2413128H00000

Unit Price

16
GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT:27)

24311-28H00-000   2431128H00000

2431128H00000

Unit Price

17
GEAR, 2ND DRIVEN
GEAR, 2ND DRIVEN (NT:25)

24321-28H00-000   2432128H00000

2432128H00000

Unit Price

18
GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN (NT:21)

24331-28H00-000   2433128H00000

2433128H00000

Unit Price

19
GEAR, 4TH DRIVEN
GEAR, 4TH DRIVEN (NT:21)

24341-28H00-000   2434128H00000

2434128H00000

Unit Price

20
GEAR, 5TH DRIVEN
GEAR, 5TH DRIVEN (NT:20)

24351-28H01-000   2435128H01000

2435128H01000

Unit Price

21
SHIM
SHIM (17X30X1)

09181-17223-000   0918117223000

0918117223000

Unit Price

22
SHIM<br />SHIM (20X30X1)
SHIM
SHIM (20X30X1)

09181-20195-000   0918120195000

0918120195000

Unit Price

23
WASHER, 24X34X1
SHIM (24X34X1)

09181-24005-000   0918124005000

0918124005000

Unit Price

24
SHIM (25X30X1)

09181-25111-000   0918125111000

0918125111000

Unit Price

25
SHIM (27X33X1)

09181-27015-000   0918127015000

0918127015000

Unit Price

26
BEARING, 24X56X1
BEARING (24X56X14)

09262-24001-000   0926224001000

0926224001000

Unit Price

27
SEAL, OIL 31X40X8.5
OIL SEAL (31X40X8.5)

09289-31003-000   0928931003000

0928931003000

Unit Price

28
BUSH 20 X 24 X 10
BUSH

09300-20037-000   0930020037000

0930020037000

Unit Price

29
BUSH, 27X31X13
BUSH

09300-27005-000   0930027005000

0930027005000

Unit Price

30
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

31
BEARING

08123-62030-000  

08123-6203A-000
 0812362030000

Unit Price

32
RETAINER<br />RETAINER, DRIVE SHAFT BRG
RETAINER
RETAINER, DRIVE SHAFT BRG

24741-20A00-000   2474120A00000

2474120A00000

Unit Price

33
RETAINER, DRIVE SHAFT OIL SEAL

24751-28H00-000   2475128H00000

2475128H00000

Unit Price

34
SCREW<br />SCREW (6X12)
SCREW
SCREW (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

35
GEAR, KICK STARTER IDLE

26260-35G00-000   2626035G00000

2626035G00000

Unit Price

36
WASHER, KICK IDLE

26264-28H00-000   2626428H00000

2626428H00000

Unit Price

37
SPROCKET, ENGINE (NT:13)

27511-35G30-000   2751135G30000

2751135G30000

Unit Price

38
SPROCKET, ENGINE (NT:14)

27511-35G20-000   2751135G20000

2751135G20000

Unit Price

39
SPACER, ENGINE SPROCKET

27531-35G01-000   2753135G01000

2753135G01000

Unit Price

40
CHAIN, DRIVE
CHAIN ASSY, DRIVE

27600-35G01-114   2760035G01114

2760035G01114

Unit Price

41
27620-35G02
JOINT SET, CHAIN

27620-35G01-000   2762035G01000

2762035G01000
Not available
42
PLATE, FR CHAIN GUIDE
PLATE, FRONT CHAIN GUIDE

27641-35G01-000   2764135G01000

2764135G01000

Unit Price

43
RING D:1.9 ID:21.8
O RING (D:1.9, ID:21.8)

09280-21010-000   0928021010000

0928021010000

Unit Price

44
CIRCLIP
CIRCLIP

08331-3124A-000   083313124A000

083313124A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of RM-Z. Let us know if you have any questions.
