Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

GEAR SHIFTING ASSY FOR SUZUKI RM-Z 450 2012

KICK STARTER

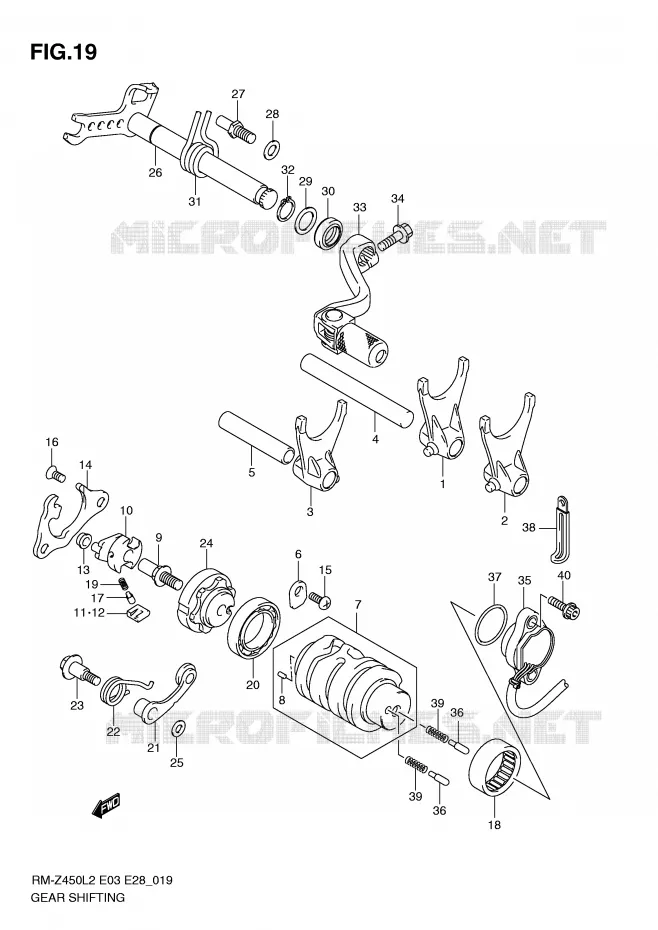

GEAR SHIFTING ASSY Suzuki MOTO 450 RM-Z 2012 RM-Z450L2(E3)
1
FORK, GEAR SHIFT NO.1

25211-28H00-000   2521128H00000

2521128H00000

Unit Price

2
FORK, GEAR SHIFT NO.2

25221-28H00-000   2522128H00000

2522128H00000

Unit Price

3
FORK, GEAR SHIFT NO.3

25231-28H00-000   2523128H00000

2523128H00000

Unit Price

4
SHAFT, GEAR SHIFT FORK NO.1

25411-28H00-000   2541128H00000

2541128H00000

Unit Price

5
SHAFT, GEAR SHIFT FORK NO.2

25421-28H00-000   2542128H00000

2542128H00000

Unit Price

6
RETAINER<br />RETAINER, SHIFT CAM BEARING
RETAINER
RETAINER, SHIFT CAM BEARING

24741-21A00-000   2474121A00000

2474121A00000

Unit Price

7
CAM, GEAR SHIFT

25310-28H00-000   2531028H00000

2531028H00000

Unit Price

8
PIN
PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

9
PIN, GEAR SHIFT CAM
PIN, GEAR SHIFT CAM DRIVEN

25313-37F00-000   2531337F00000

2531337F00000

Unit Price

10
SHIFTER, GEAR SHIFT CAM

25322-28H00-000   2532228H00000

2532228H00000

Unit Price

11
PAWL, GEAR SHIFT NO.1
PAWL, GEAR SHIFT NO.1

25323-34201-000   2532334201000

2532334201000

Unit Price

12
PAWL, GEAR SHIFT NO.2
PAWL, GEAR SHIFT NO.2

25324-34201-000   2532434201000

2532434201000

Unit Price

13
ROLLER, GEAR SHIFT CAM SHIFTER

25325-28H00-000   2532528H00000

2532528H00000

Unit Price

14
LIFTER, GEAR SHIFT PAWL

25331-28H00-000   2533128H00000

2533128H00000

Unit Price

15
BOLT, (6X12)
SCREW (6X12)

09125-06122-000   0912506122000

0912506122000

Unit Price

16
SCREW<br />SCREW (6X12)
SCREW
SCREW (6X12)

09126-06011-000   0912606011000

0912606011000

Unit Price

17
PIN

09209-05023-000   0920905023000

0920905023000

Unit Price

18
R BEARING 25X32X12<br />BEARING (25X32X12)
R BEARING 25X32X12
BEARING (25X32X12)

09263-25018-000   0926325018000

0926325018000

Unit Price

19
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04003-000   0944004003000

0944004003000

Unit Price

20
BEARING, GEAR SH
BEARING

08140-68050-000   0814068050000

0814068050000

Unit Price

21
STOPPER, GEAR SHIFT CAM
STOPPER COMR, GEAR SHIFT CAM

25350-28H00-000   2535028H00000

2535028H00000

Unit Price

22
SPRING, GEAR SHIFT CAM STOPPER

25355-28H00-000   2535528H00000

2535528H00000

Unit Price

23
BOLT, SHIFT CAM STOPPER

25357-28H00-000   2535728H00000

2535728H00000

Unit Price

24
PLATE, GEAR SHIFT CAM STOPPER

25381-10H00-000   2538110H00000

2538110H00000

Unit Price

25
WASHER, THRUST
WASHER

08211-06121-000   0821106121000

0821106121000

Unit Price

26
SHAFT, GEAR SHIFT

25510-28H01-000  

25510-28H10-000
 2551028H01000

Unit Price

27
STOPPER, GEAR SHIFT ARM

25671-10H00-000   2567110H00000

2567110H00000

Unit Price

28
SHIM, 8.8X14X1.0
SHIM (8.8X14X1)

09181-08139-000   0918108139000

0918108139000

Unit Price

29
WASHER
SHIM (14X20X1)

09181-14139-000   0918114139000

0918114139000

Unit Price

30
SEAL, OIL(14X22X7.3)
OIL SEAL (14X22X7.3)

09283-14005-000   0928314005000

0928314005000

Unit Price

31
SPRING

09444-20011-000   0944420011000

0944420011000

Unit Price

32
CIRCLIP
CIRCLIP

08331-3114A-000   083313114A000

083313114A000

Unit Price

33
LEVER ASSY, GEAR SHIFT

25600-28H00-000  

25600-28H01-000
 2560028H00000

Unit Price

34
BOLT
BOLT

01547-06207-000   0154706207000

0154706207000

Unit Price

35
BASE ASSY, GEAR SHIFT TERMINAL
BASE ASSY, GEAR SHIFT TERM

37730-49H00-000   3773049H00000

3773049H00000

Unit Price

36
K S PAWL ROLLER<br />PIN
K S PAWL ROLLER
PIN

09209-05011-000   0920905011000

0920905011000

Unit Price

37
O RING<br />O RING (D:2.4,ID:26.2)
O RING
O RING (D:2.4, ID:26.2)

09280-26005-000   0928026005000

0928026005000
Not available
38
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

39
K S PAWL SPRING<br />SPRING
K S PAWL SPRING
SPRING

09440-04010-000   0944004010000

0944004010000

Unit Price

40
BOLT
BOLT

07120-0516A-000  

07120-0516B-000
 071200516A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of RM-Z. Let us know if you have any questions.

Genuine parts for Suzuki 450 RM-Z 2012
