FRAME AND SEAT FOR SUZUKI DR 50 1986

FUEL TANK AND COVER FRAME

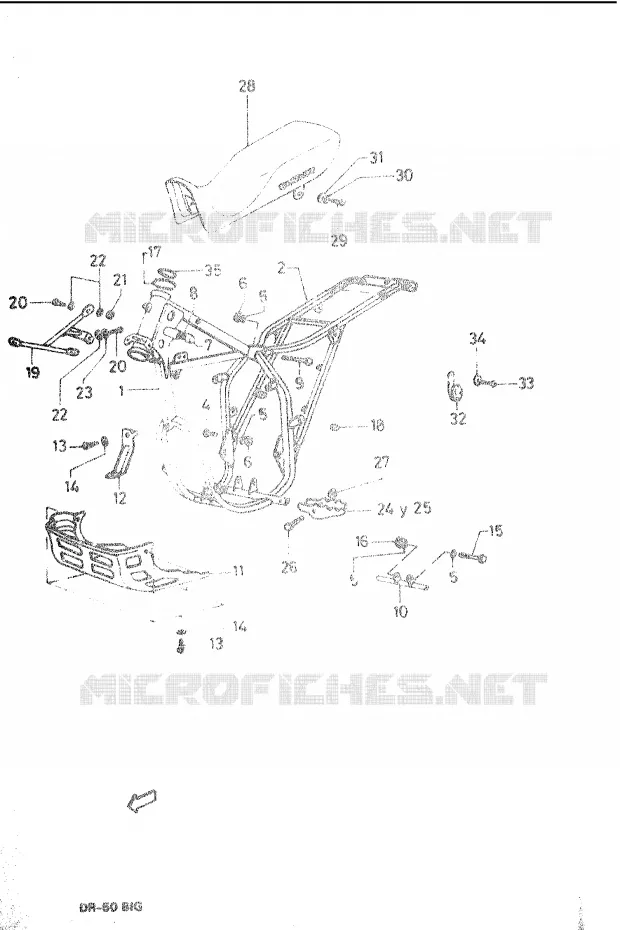

FRAME AND SEAT Suzuki MOTO 50 DR 1986 DR-50BIG
1
FRAME (BLUE)

41000-00E10-34S   4100000E1034S

4100000E1034S
Not available
1
FRAME (WHITE)

41000-00E10-E10   4100000E10E10

4100000E10E10
Not available
2
FRAME, REAR (BLUE)

41300-00E10-34S   4130000E1034S

4130000E1034S
Not available
2
FRAME, REAR (WHITE)

41300-00E10-E10   4130000E10E10

4130000E10E10
Not available
4
SCREW M8X20 DIN 933/8G

09100-08E04-000   0910008E04000

0910008E04000
Not available
5
WASHER B8 DIN 125

09160-08E03-000   0916008E03000

0916008E03000
Not available
6
NUT

08319-21088-000  

08319-2108A-000
 0831921088000

Unit Price

7
CUSHION

41411-00E00-000   4141100E00000

4141100E00000
Not available
8
WASHER OPTIONAL

41421-00E00-E0Z   4142100E00E0Z

4142100E00E0Z
Not available
9
SCREW M8X100 DIN 931

09100-08E12-000   0910008E12000

0910008E12000
Not available
10
BRACKET SET, CRANKASE

41360-00E00-E0N   4136000E00E0N

4136000E00E0N
Not available
11
PROTECTOR, ENGINE (YELLOW)

42511-00E00-25Y   4251100E0025Y

4251100E0025Y
Not available
11
PROTECTOR, ENGINE (BLUE)

42511-00E00-34S   4251100E0034S

4251100E0034S
Not available
11
PROTECTOR, ENGINE (WHITE)

42511-00E00-BE1   4251100E00BE1

4251100E00BE1
Not available
12
PLATE, PROTECTOR COOLING

42521-00E00-E0Z   4252100E00E0Z

4252100E00E0Z
Not available
13
..SCREW

02142-05125-000   0214205125000

0214205125000
Not available
14
WASHER B5 DIN 9021

09160-05E03-000   0916005E03000

0916005E03000
Not available
15
SCREW M8X1X80 DIN 960

09100-08E05-000   0910008E05000

0910008E05000
Not available
16
NUT M8X1 DIN 985

09140-08E03-000   0914008E03000

0914008E03000
Not available
17
BALL

09260-05E00-000   0926005E00000

0926005E00000
Not available
18
CUSHION

13761-00E00-000   1376100E00000

1376100E00000
Not available
19
BRACKET, COWLING FRONT (BLUE)

53220-00E00-34S   5322000E0034S

5322000E0034S
Not available
19
BRACKET, COWLING FRONT (WHITE)

53220-00E00-E10   5322000E00E10

5322000E00E10
Not available
20
SCREW M5X12 DIN 7985

09125-05E04-000   0912505E04000

0912505E04000
Not available
21
08310-0005A

08310-11056-000  

0831011056000
Not available
22
WASHER B5 DIN 125

09160-05E02-000   0916005E02000

0916005E02000
Not available
23
WASHER A5 DIN 6798

09163-05E01-000   0916305E01000

0916305E01000
Not available
24
FOOTREST, FRONT RH

43550-00E01-E0Z   4355000E01E0Z

4355000E01E0Z
Not available
25
FOOTREST, FRONT RL

43560-00E01-E0Z   4356000E01E0Z

4356000E01E0Z
Not available
26
SCREW M6X30 DIN 931

09100-06E06-000   0910006E06000

0910006E06000
Not available
27
NUT M6 DIN 985

09140-06E02-000   0914006E02000

0914006E02000
Not available
28
SEAT SET (YELLOW)

45100-00E00-25Y   4510000E0025Y

4510000E0025Y
Not available
28
SEAT SET (BLUE)

45100-00E00-34S   4510000E0034S

4510000E0034S
Not available
29
SCREW M6X15 DIN 7985/N

09125-06E03-000   0912506E03000

0912506E03000
Not available
30
WASHER A6 DIN 137/N

09164-06E04-000   0916406E04000

0916406E04000
Not available
31
WASHER B6 DIN 125/N

09160-06E03-000   0916006E03000

0916006E03000
Not available
32
HORN ASSY

38500-00E10-000   3850000E10000

3850000E10000
Not available
33
SCREW M6X18 DIN 7985

09125-06E05-000   0912506E05000

0912506E05000
Not available
34
WASHER A6 DIN 6798

09163-06E02-000   0916306E02000

0916306E02000
Not available
35
O-RING

09280-33E01-000   0928033E01000

0928033E01000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME AND SEAT of your Suzuki DR 50 BIG of DR. Let us know if you have any questions.
