CRANKSHAFT

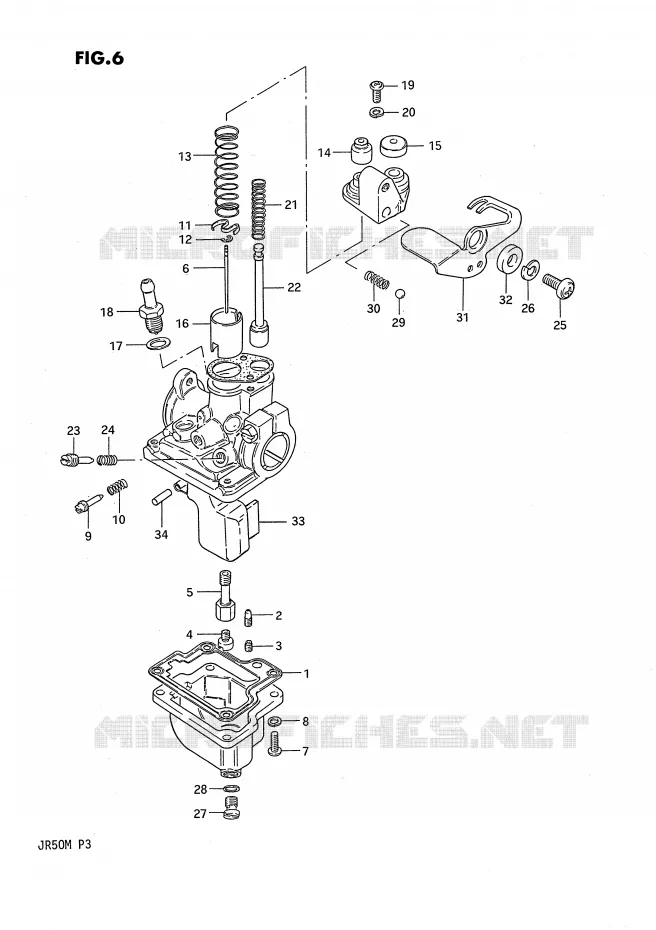

CARBURETOR FOR SUZUKI JR 50 1987

AIR FILTER

GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13251-04110-000 1325104110000

$12,97

Unit Price

JET, PILOT (15)

09492-15002-000

09492-15015-000

$31,97

Unit Price

JET, PILOT (2) #15
JET, PILOT NO.2

09492-15009-000 0949215009000

$19,97

Unit Price

DISCONTINUE
JET, MAIN (52.5)

09491-52002-000 0949152002000

Not available

DISCONTINUE
JET, NEEDLE (E-4)

09494-00210-000 0949400210000

Not available

NEEDLE, JET
NEEDLE, JET (3E3-3)

13383-19010-000 1338319010000

$24,97

Unit Price

SCREW

02112-04126-000

02112-0412A-000

$2,97

Unit Price

WASHER, LOCK

08321-21046-000

08321-0104A-000

$2,97

Unit Price

SCREW, THROTTLE STOP

13267-01010-000 1326701010000

$13,97

Unit Price

SPRING
SPRING, STOP SCREW

13268-01010-000 1326801010000

$7,97

Unit Price

SEAT, THROTTLE VALVE SPRING

13581-04010-000 1358104010000

$9,97

Unit Price

CLIP, NEEDLE

13394-12110-000

13394-40D00-000

$6,97

Unit Price

SPRING, THROTTLE VALVE

13573-01010-000 1357301010000

$10,97

Unit Price

CAP

13681-04010-000

13681-04011-000

$6,97

Unit Price

RUBBER, THROTTLE VALVE CAP
CAP, STARTER

13682-98010-000 1368298010000

$6,97

Unit Price

DISCONTINUE
VALVE, THROTTLE (CA:3.0)

13551-04110-000 1355104110000

Not available

GASKET, THRO VALVE INSPECTION
GASKET, VALVE SEAT

13663-31010-000 1366331010000

$6,97

Unit Price

VALVE ASSY, NEEDLE
VALVE, NEEDLE

13370-04110-000 1337004110000

$39,97

Unit Price

SCREW

02112-04106-000

02112-0410A-000

$2,97

Unit Price

WASHER, LOCK

08321-21046-000

08321-0104A-000

$2,97

Unit Price

SPRING
SPRING, STARTER VALVE

13417-18630-000 1341718630000

$10,97

Unit Price

DISCONTINUE
VALVE, STARTER

13411-04410-000 1341104410000

Not available

SCREW, AIR
SCREW, PILOT AIR

13269-04010-000 1326904010000

$18,97

Unit Price

SPRING

13268-01010-000 1326801010000

$7,97

Unit Price

SCREW

02112-06126-000

02112-0612B-000

$2,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

PLUG
PLUG, DRAIN

13247-05010-000 1324705010000

$11,97

Unit Price

GASKET, DRAIN PLUG

13249-05010-000 1324905010000

$3,97

Unit Price

BALL, STARTER SHAFT
BALL

13435-33110-000 1343533110000

$4,97

Unit Price

SPRING, STARTER SHAFT
SPRING

13434-30650-000 1343430650000

$7,97

Unit Price

DISCONTINUE
LEVER, STARTER

13413-04410-000 1341304410000

Not available

RING, CARBURETOR STARTER
RING

13424-30650-000 1342430650000

$12,97

Unit Price

FLOAT

13252-04011-000 1325204011000

$39,97

Unit Price

PIN, FLOAT

13254-04010-000 1325404010000

$7,97

Unit Price

99x

DISCONTINUE
CARBURETOR ASSY

13200-04410-000 1320004410000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of JR. Let us know if you have any questions.
