CRANKCASE

CLUTCH COVER - OIL PUMP FOR SUZUKI JR 50 1987

CRANKCASE COVER

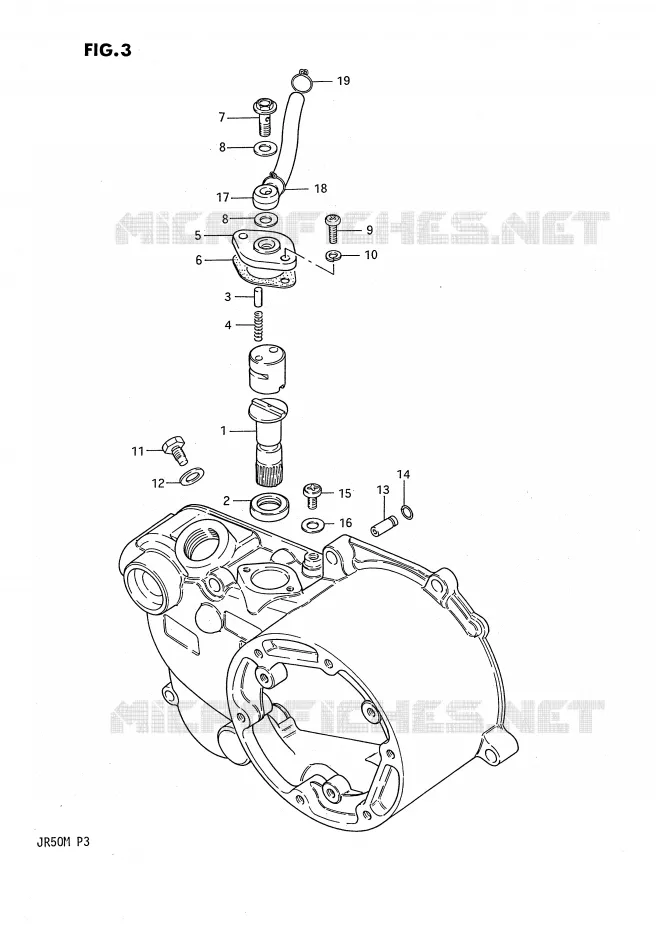

CLUTCH COVER - OIL PUMP Suzuki MOTO 50 JR 1987 JR50H(P3)
1
GEAR, OIL PUMP DRIVE

16161-04000-000   1616104000000

1616104000000

Unit Price

2
ENG SPKT OIL SEAL<br />OIL SEAL (12X18.5X3)
ENG SPKT OIL SEAL
OIL SEAL (12X18.5X3)

09284-12004-000   0928412004000

0928412004000

Unit Price

3
PIN(2.3X7.5)
PLUNGER, SUB

09261-02006-000   0926102006000

0926102006000

Unit Price

4
SPRING

09440-01001-000   0944001001000

0944001001000

Unit Price

5
DISCONTINUE
CAM, OIL PUMP

16251-04000-000   1625104000000

1625104000000
Not available
6
GASKET, OIL PUMP

16731-04000-000  

16731-04000-H17
 1673104000000

Unit Price

7
OIL PUMP UNION BOLT<br />UNION BOLT
OIL PUMP UNION BOLT
UNION BOLT

09360-06003-000   0936006003000

0936006003000

Unit Price

8
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

9
SCREW

02112-04128-000  

02112-0412A-000
 0211204128000

Unit Price

10
WASHER, LOCK

08321-21047-000  

08321-0104A-000
 0832121047000

Unit Price

11
BOLT(6X10)
STOPPER

09135-06007-000   0913506007000

0913506007000

Unit Price

12
WASHER<br />GASKET
WASHER
GASKET

09164-06003-000   0916406003000

0916406003000

Unit Price

13
DISCONTINUE
CHECK VALVE

16710-04010-000   1671004010000

1671004010000
Not available
14
RING<br />O RING
RING
O RING

09280-03003-000   0928003003000

0928003003000

Unit Price

15
SCREW, INTAKE PORT

02112-05088-000   0211205088000

0211205088000
Not available
16
GASKET 5X9.5X1
GASKET

09168-05001-000   0916805001000

0916805001000

Unit Price

17
DISCONTINUE

16810-39100-000  

1681039100000
Not available
18
OIL HOSE CLAMP<br />CLIP
OIL HOSE CLAMP
CLIP

09401-08401-000   0940108401000

0940108401000

Unit Price

19
OIL HOSE CLAMP<br />CLIP
OIL HOSE CLAMP
CLIP

09401-08401-000   0940108401000

0940108401000

Unit Price

99x
DISCONTINUE

11300-04851-000  

1130004851000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH COVER - OIL PUMP of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 1987

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 1987

Select your Suzuki 1987 model

50 JR 1987 JR50H(P3)

Suzuki JR

Displacement: 50 cc
Year: 1987
Model code JR50H(P3)
