CYLINDER

CRANKCASE FOR SUZUKI JR 50 1987

CLUTCH COVER - OIL PUMP

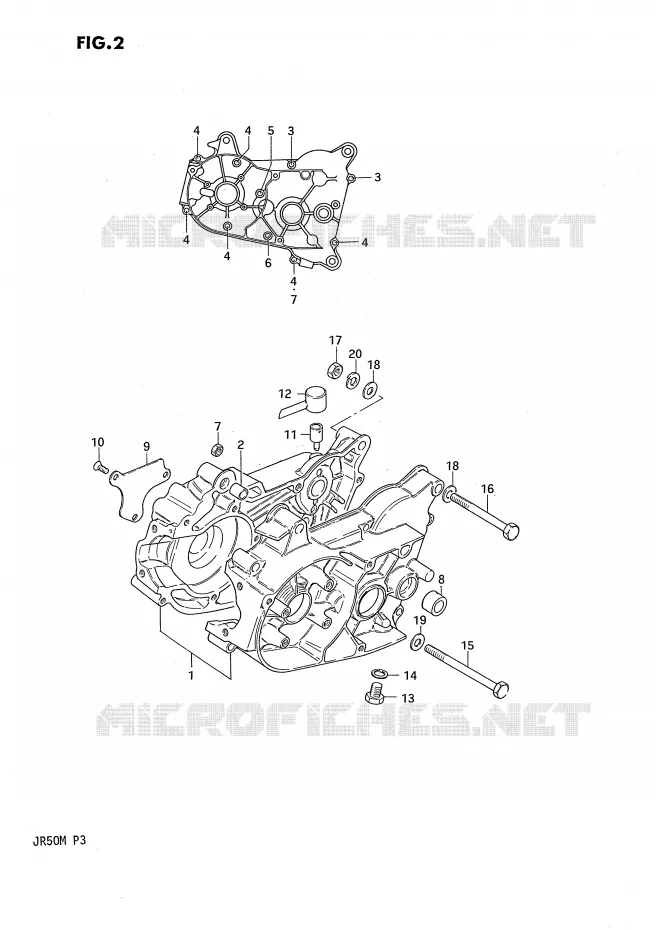

CRANKCASE Suzuki MOTO 50 JR 1987 JR50H(P3)
1
DISCONTINUED

11300-04840-000   1130004840000

1130004840000
Not available
2
PIN
PIN

04211-11129-000   0421111129000

0421111129000

Unit Price

3
SCREW

02112-06308-000  

02112-06307-000
 0211206308000

Unit Price

4
SCREW<br />SCREW (6X35)
SCREW
SCREW (6X35)

02112-06357-000   0211206357000

0211206357000

Unit Price

5
SCREW (6X40)
SCREW (6X40)

02112-06407-000   0211206407000

0211206407000

Unit Price

6
SCREW

02112-06558-000  

02112-06557-000
 0211206558000

Unit Price

7
NUT

08310-11067-000  

08310-00067-000
 0831011067000

Unit Price

8
BUSH, COUNTER SHAFT

09304-10005-000   0930410005000

0930410005000
Not available
9
DISCONTINUE
PLATE, OIL RESERVOIR

12521-04000-000   1252104000000

1252104000000
Not available
10
SCREW

02122-04108-000  

02122-04103-000
 0212204108000

Unit Price

11
PLUG,T/M BREATHER<br />PLUG, BREATHER
PLUG, T/M BREATHER
PLUG, BREATHER

24821-09001-000   2482109001000

2482109001000

Unit Price

12
DISCONTINUE
CAP, BREATHER PLUG

24822-20000-000  

2482220000000
Not available
13
CRANK DRAIN PLUG<br />PLUG, OIL DRAIN
CRANK DRAIN PLUG
PLUG, OIL DRAIN

09247-10001-000   0924710001000

0924710001000

Unit Price

14
CRNK DRAIN PLUG GASK<br />GASKET
CRNK DRAIN PLUG GASK
GASKET

09168-10002-000   0916810002000

0916810002000

Unit Price

15
BOLT

01107-08858-000  

01500-08853-000
 0110708858000

Unit Price

16
BOLT

01107-08708-000  

01500-08703-000
 0110708708000

Unit Price

17
NUT

08310-12088-000  

08310-00087-000
 0831012088000

Unit Price

18
WASHER

08322-11088-000  

08322-01087-000
 0832211088000

Unit Price

19
09160-08080
FLAT WASHER

09160-08030-000  

0916008030000
Not available
20
8 MM LOCK WASHER

08321-21088-000  

08321-01087-000
 0832121088000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of JR. Let us know if you have any questions.

Genuine parts for Suzuki 50 JR 1987

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 JR 1987

Select your Suzuki 1987 model

50 JR 1987 JR50H(P3)

Suzuki JR

Displacement: 50 cc
Year: 1987
Model code JR50H(P3)
