SEAT (MODEL M / R) COLOR : H39 = 4YE(YELLOW), 0WM(GRAY)

FAIRING (MODEL E / G / H / J) FOR SUZUKI TS-X 50 1987

FAIRING (MODEL M / R)

Item numbers

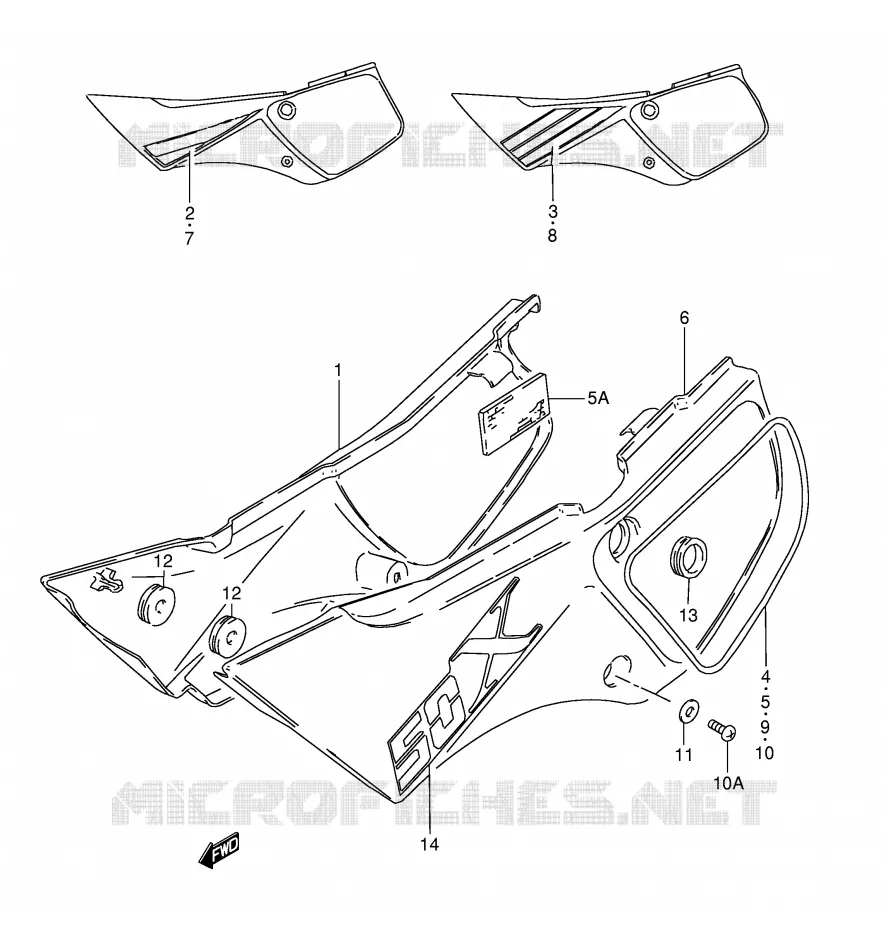

FAIRING (MODEL E/G/H/J) Suzuki MOTO 50 TS-X 1987 TS50XKH(E1)
1
1
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
5A
5
5
6
6
6
6
6
6
7
7
7
7
8
8
8
8
9
9
9
10A
10
10
11
12
12
13
14
14
14
1
COVER, FRAME RH (BLUE)

47111-13700-08Y   471111370008Y

471111370008Y
Not available
1
COVER, FRAME RH (RED)

47111-13700-14C   471111370014C

471111370014C
Not available
1
COVER, FRAME RH (WHITE)

47111-13700-14L   471111370014L

471111370014L
Not available
1
COVER, FRAME RH (YELLOW)

47111-13700-163   4711113700163

4711113700163
Not available
1
COVER, FRAME RH (BLACK)

47111-13700-21C   471111370021C

471111370021C
Not available
1
COVER, FRAME RH (YELLOW)

47111-13700-25Y   471111370025Y

471111370025Y
Not available
2
TAPE SET, FRAME COVER RH

68130-13631-98L   681301363198L

681301363198L
Not available
2
TAPE SET, FRAME COVER RH

68130-13631-98M   681301363198M

681301363198M
Not available
2
TAPE SET, FRAME COVER RH

68130-13631-98N   681301363198N

681301363198N
Not available
2
TAPE SET, FRAME COVER RH

68130-13631-98P   681301363198P

681301363198P
Not available
3
TAPE SET, FRAME COVER RH

68130-13670-74H   681301367074H

681301367074H
Not available
3
TAPE SET, FRAME COVER RH

68130-13670-8DY   68130136708DY

68130136708DY
Not available
3
TAPE SET, FRAME COVER RH

68130-13670-8DZ   68130136708DZ

68130136708DZ
Not available
3
TAPE SET, FRAME COVER RH

68130-13670-8EA   68130136708EA

68130136708EA
Not available
4
TAPE, FRAME COVER RH (BLUE)

68131-13630-10W   681311363010W

681311363010W
Not available
4
TAPE, FRAME COVER RH (BLUE)

68131-13630-17W   681311363017W

681311363017W
Not available
4
TAPE, FRAME COVER RH (BLACK)

68131-13630-291   6813113630291

6813113630291
Not available
5
TAPE, FRAME COVER RH (BLUE)

68131-13630-19F   681311363019F

681311363019F
Not available
5
TAPE, FRAME COVER RH (BLUE)

68131-13630-33N   681311363033N

681311363033N
Not available
5A
DISCONTINUE

47122-20410-000  

4712220410000
Not available
6
COVER, FRAME LH (BLUE)

47211-13700-08Y   472111370008Y

472111370008Y
Not available
6
COVER, FRAME LH (RED)

47211-13700-14C   472111370014C

472111370014C
Not available
6
COVER, FRAME LH (WHITE)

47211-13700-14L   472111370014L

472111370014L
Not available
6
COVER, FRAME LH (YELLOW)

47211-13700-163   4721113700163

4721113700163
Not available
6
COVER, FRAME LH (BLACK)

47211-13700-21C   472111370021C

472111370021C
Not available
6
COVER, FRAME LH (YELLOW)

47211-13700-25Y   472111370025Y

472111370025Y
Not available
7
TAPE SET, FRAME COVER LH

68140-13631-98L   681401363198L

681401363198L
Not available
7
TAPE SET, FRAME COVER LH

68140-13631-98M   681401363198M

681401363198M
Not available
7
TAPE SET, FRAME COVER LH

68140-13631-98N   681401363198N

681401363198N
Not available
7
TAPE SET, FRAME COVER LH

68140-13631-98P   681401363198P

681401363198P
Not available
8
TAPE SET, FRAME COVER LH

68140-13670-74H   681401367074H

681401367074H
Not available
8
TAPE SET, FRAME COVER LH

68140-13670-8DY   68140136708DY

68140136708DY
Not available
8
TAPE SET, FRAME COVER LH

68140-13670-8DZ   68140136708DZ

68140136708DZ
Not available
8
TAPE SET, FRAME COVER LH

68140-13670-8EA   68140136708EA

68140136708EA
Not available
9
TAPE, FRAME COVER LH (BLUE)

68141-13630-10W   681411363010W

681411363010W
Not available
9
TAPE, FRAME COVER LH (BLUE)

68141-13630-17W   681411363017W

681411363017W
Not available
9
TAPE, FRAME COVER LH (BLACK)

68141-13630-291   6814113630291

6814113630291
Not available
10A
SCREW 6X12<br />SCREW
SCREW 6X12
SCREW

02142-06127-000   0214206127000

0214206127000

Unit Price

10
TAPE, FRAME COVER LH (BLUE)

68141-13630-19F   681411363019F

681411363019F
Not available
10
TAPE, FRAME COVER LH (BLUE)

68141-13630-33N   681411363033N

681411363033N
Not available
11
WASHER (6.5X18X1.6)
WASHER (6.5X18X1.6)

09160-06084-000   0916006084000

0916006084000

Unit Price

12
CUSHION(8X26X7)
CUSHION(8X26X7)

09320-08018-000  

09320-08513-000
 0932008018000

Unit Price

13
DISCONTINUE
GROMMET

45522-04700-000   4552204700000

4552204700000
Not available
14
EMBLEM, FRAME COVER

68131-13720-9BV   68131137209BV

68131137209BV
Not available
14
EMBLEM, FRAME COVER

68131-13720-9CR   68131137209CR

68131137209CR
Not available
14
EMBLEM, FRAME COVER

68131-13720-9CS   68131137209CS

68131137209CS
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FAIRING (MODEL E/G/H/J) of your Suzuki of TS-X. Let us know if you have any questions.

Genuine parts for Suzuki 50 TS-X 1987

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 TS-X 1987

Select your Suzuki 1987 model

50 TS-X 1987 TS50XKH(E1)

Suzuki TS-X

Displacement: 50 cc
Year: 1987
Model code TS50XKH(E1)
