TAIL LIGHT (E25) REFER TO FIG.20A(E- 6) FOR E22

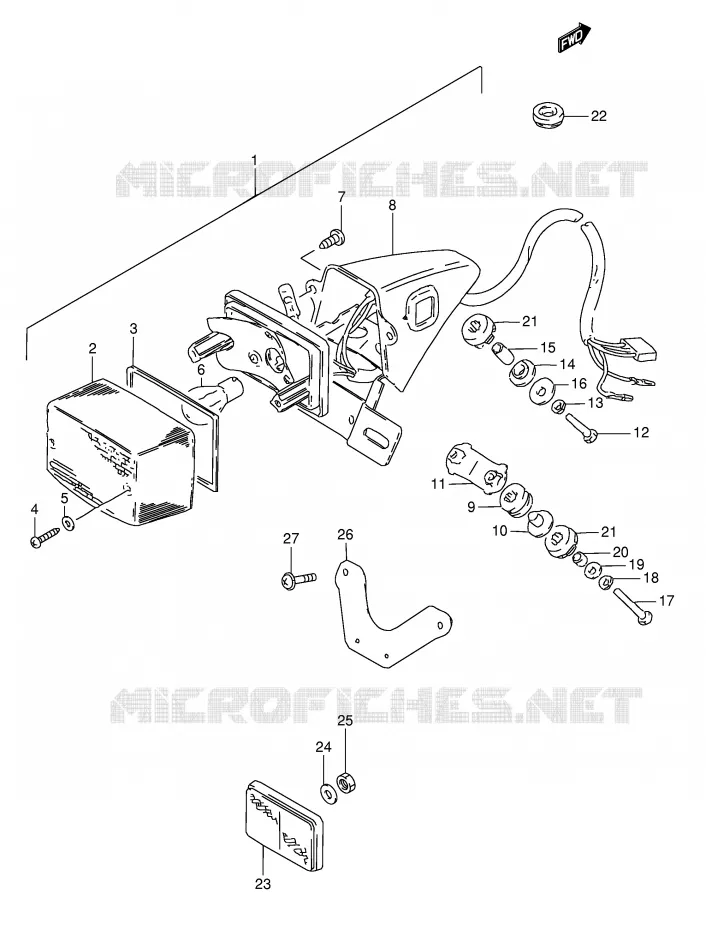

TAIL LIGHT (E22) FOR SUZUKI TS-X 50 1987

TAIL LIGHT (E4)

Item numbers

LAMP UNIT, REAR COMBINATION

35720-13670-000 3572013670000

Not available

LENS

35712-36A70-000 3571236A70000

Not available

GASKET

35713-13600-000 3571313600000

Not available

SCREW

03211-04207-000 0321104207000

$2,97

Unit Price

GASKET

35627-43010-000 3562743010000

$3,97

Unit Price

BULB(12V21/5W)
BULB

09471-12046-000 0947112046000

$16,97

Unit Price

SCREW

03212-05163-000

13765-48GV0-000

$12,97

Unit Price

BRACKET, TAIL LAMP

35730-13652-000 3573013652000

Not available

CUSHION

35765-30950-000 3576530950000

Not available

SPACER

35766-30950-000 3576630950000

Not available

PLATE

35716-13650-000 3571613650000

Not available

BOLT

01500-06303-000

01500-0630A-000

$3,97

Unit Price

DISCONTINUE
BOLT

01570-06303-000

Not available

08321-0106A
LOCK WASHER

08321-01063-000

Not available

CUSHION

09320-09003-000 0932009003000

$3,97

Unit Price

SPACER (6.5X10X16)

09180-06295-000 0918006295000

Not available

WASHER(6.5X22X1.6)

09160-06063-000

09160-06054-000

$2,97

Unit Price

BOLT

01500-06453-000

01500-0645B-000

$4,97

Unit Price

BOLT

01580-06453-000 0158006453000

Not available

08321-0106A
LOCK WASHER

08321-01063-000

Not available

WASHER

08322-01063-000

08322-0106A-000

$3,97

Unit Price

SPACER, FR (6.4X9X10.5)

09180-06090-000 0918006090000

Not available

CUSHION
CUSHION (T:9)

09320-09010-000 0932009010000

$4,97

Unit Price

GROMMET

09308-07010-000 0930807010000

Not available

GROMMET

09308-07013-000 0930807013000

Not available

REFLECTOR, REAR

35970-01A10-000 3597001A10000

Not available

WASHER

08322-01057-000 0832201057000

$3,97

Unit Price

NUT

08310-00057-000 0831000057000

$3,97

Unit Price

NUT

08316-10053-000

08316-1005B-000

$4,97

Unit Price

BRACKET, LICENSE

35927-22600-000 3592722600000

Not available

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (E22) of your Suzuki of TS-X. Let us know if you have any questions.
