WIRING HARNESS REFER TO FIG.21A(E-9) FOR E4,E15

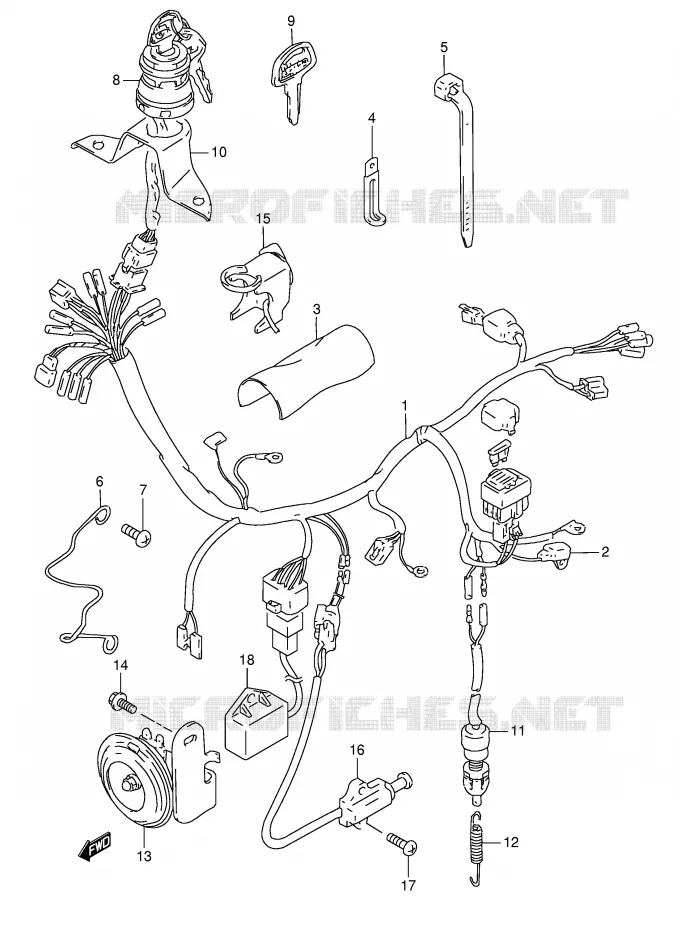

WIRING HARNESS (E4,E15) FOR SUZUKI TS-X 50 1987

RIGHT SWITCH - HANDGRIP

Item numbers

WIRING HARNESS

36610-34B10-000 3661034B10000

Not available

DISCONTINUE
CAP

33624-03D00-000 3362403D00000

Not available

COVER, WIRING HARNESS

36618-15D20-000

36618-15D21-000

$17,97

Unit Price

CLAMP
CLAMP (L:120)

09404-06435-000 0940406435000

$5,97

Unit Price

DISCONTINUE
CLAMP (L:120)

09404-10418-000 0940410418000

Not available

CLAMP, L:88
CLAMP (L:55)

09407-05403-000 0940705403000

$2,97

Unit Price

BAND, WIRING HARNESS
CLAMP

09407-14403-000 0940714403000

$3,97

Unit Price

CLAMP, WIRING HARNESS

09407-18403-000

09407-18402-000

$3,97

Unit Price

GUIDE, WIRING HARNESS

36619-13601-000 3661913601000

Not available

SCREW

02142-06123-000

02142-0612B-000

$2,97

Unit Price

SITCH ASSY, IGNITION

37110-13601-000 3711013601000

Not available

KEY, BLANK

37145-19710-000

37146-49300-000

$24,97

Unit Price

BRACKET, IGNITION SWITCH

37115-13610-000 3711513610000

Not available

SWITCH ASSY, STOP LAMP

37740-34B00-000 3774034B00000

Not available

BRAKE SWITCH SPRING
SPRING

09443-06012-000 0944306012000

$5,97

Unit Price

HORN ASSY

38500-34B00-000 3850034B00000

Not available

BOLT

01550-06123-000

01550-0612B-000

$3,97

Unit Price

SWITCH ASSY, ENGINE STOP

37830-34B00-000 3783034B00000

Not available

37840-44X52

37840-44X50-000

Not available

SCREW

02142-06163-000

02142-0616A-000

$2,97

Unit Price

UNIT ASSY, SIDE STAND

32995-34B00-000 3299534B00000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (E4,E15) of your Suzuki of TS-X. Let us know if you have any questions.
