TAIL LIGHT

WIRING HARNESS FOR SUZUKI TS-X 50 1991

SWITCHES

Item numbers

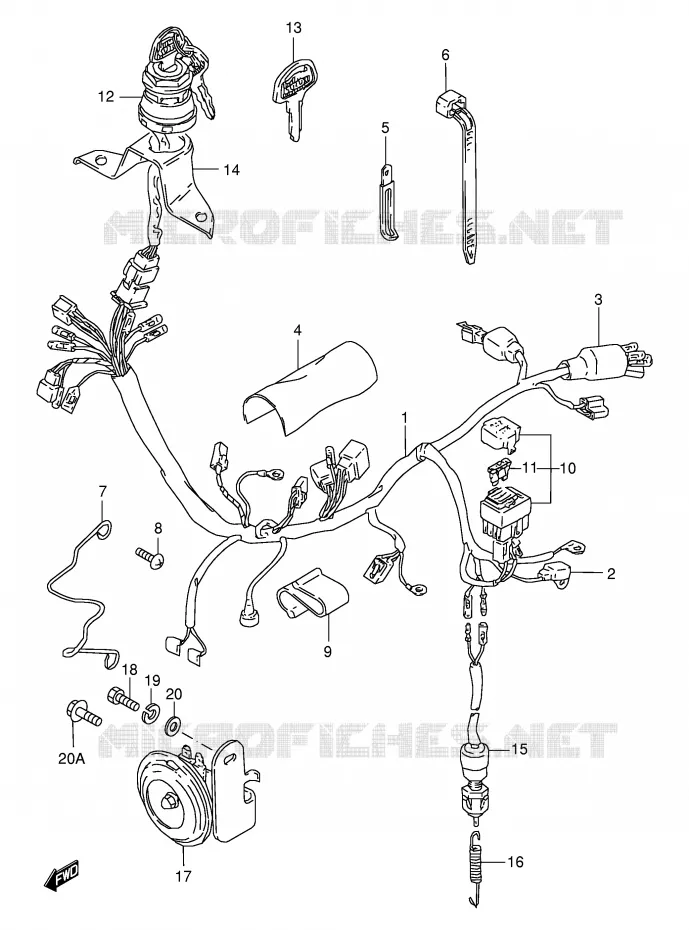

WIRING HARNESS Suzuki MOTO 50 TS-X 1991 TS50XAM(E4)
1
2
3
4
5
6
6
6
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20A
20
1
WIRING HARNESS

36610-34B00-000   3661034B00000

3661034B00000
Not available
2
DISCONTINUE

33624-44A00-000  

3362444A00000
Not available
3
DISCONTINUE
BOOT

36618-44200-000   3661844200000

3661844200000
Not available
4
36618-15D02
COVER, WIRE HARNESS

36618-44B01-000  

3661844B01000
Not available
5
CLAMP

09404-06419-000  

09404-06435-000
 0940406419000

Unit Price

6
CLAMP, L:88
CLAMP (L:55)

09407-05403-000   0940705403000

0940705403000

Unit Price

6
BAND, WIRING HARNESS

09407-11401-000  

09407-14403-000
 0940711401000

Unit Price

6
CLAMP,WIRING HARNESS<br />CLAMP (L:165)
CLAMP, WIRING HARNESS
CLAMP (L:165)

09407-18402-000   0940718402000

0940718402000

Unit Price

7
GUIDE, WIRING HARNESS

36619-13601-000   3661913601000

3661913601000
Not available
8
SCREW

02112-16125-000  

02142-06123-000
 0211216125000

Unit Price

9
HOLDER, WIRING HARNESS

36619-13610-000   3661913610000

3661913610000
Not available
10
DISCONTINUE
FUSE ASSY

36740-24510-000   3674024510000

3674024510000
Not available
11
FUSE (10A)
FUSE (10A)

09481-10101-000   0948110101000

0948110101000

Unit Price

12
SITCH ASSY, IGNITION

37110-13601-000   3711013601000

3711013601000
Not available
13
KEY,BLANK
KEY, BLANK

37145-19710-000  

37146-49300-000
 3714519710000

Unit Price

14
BRACKET, IGNITION SWITCH

37115-13600-000   3711513600000

3711513600000
Not available
15
SWITCH ASSY, STOP LAMP

37740-34B00-000   3774034B00000

3774034B00000
Not available
16
BRAKE SWITCH SPRING<br />SPRING
BRAKE SWITCH SPRING
SPRING

09443-06012-000   0944306012000

0944306012000

Unit Price

17
HORN ASSY

38500-13690-000   3850013690000

3850013690000
Not available
18
BOLT

01107-06125-000  

01500-0612A-000
 0110706125000

Unit Price

19
08321-0106A
.LOCK WASHER

08321-21064-000  

0832121064000
Not available
20
WASHER

08322-21064-000  

08322-0106A-000
 0832221064000

Unit Price

20A
01580-0612B
BOLT

01580-06123-000  

0158006123000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki of TS-X. Let us know if you have any questions.

Genuine parts for Suzuki 50 TS-X 1991
