REAR BRAKE

FRONT FORK FOR SUZUKI TS-X 50 1991

STEERING COLUMN

Item numbers

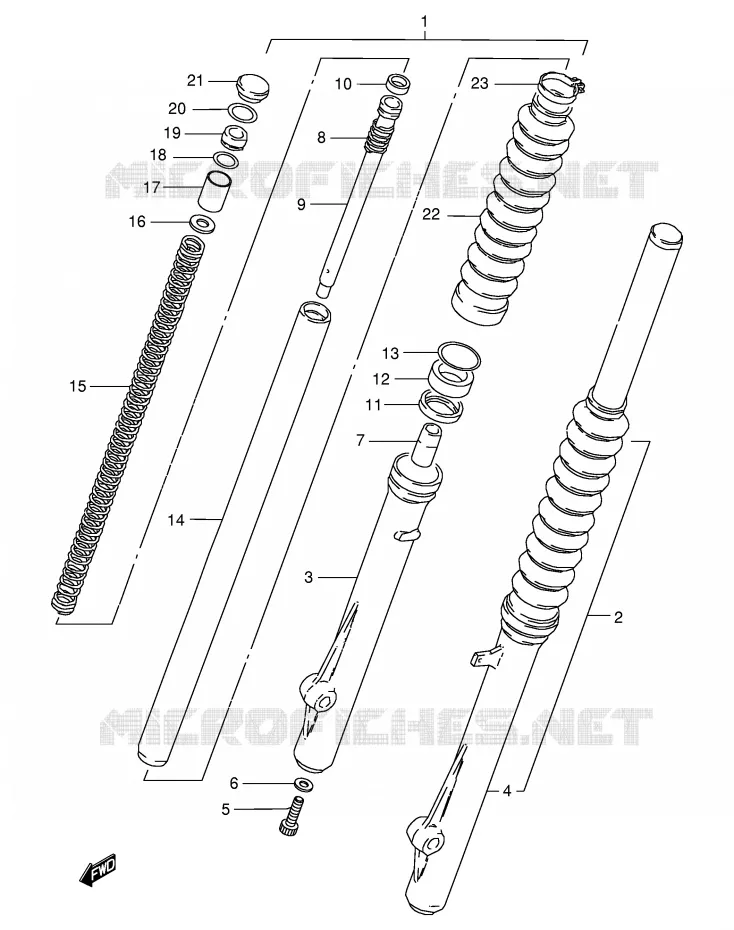

FRONT FORK Suzuki MOTO 50 TS-X 1991 TS50XAM(E4)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
DAMPER ASSY, RH

51103-13640-000   5110313640000

5110313640000
Not available
2
DAMPER ASSY, LH

51104-13640-000   5110413640000

5110413640000
Not available
3
OUTER TUBE, RH

51130-13620-000   5113013620000

5113013620000
Not available
4
OUTER TUBE, LH

51140-13620-000   5114013620000

5114013620000
Not available
5
BOLT(8X27)<br />BOLT
BOLT(8X27)
BOLT

51147-48130-000   5114748130000

5114748130000

Unit Price

6
GASKET<br />WASHER
GASKET
WASHER

51148-36011-000   5114836011000

5114836011000

Unit Price

7
PIECE, OIL LOCK

51195-13620-000   5119513620000

5119513620000
Not available
8
DISCONTINUE
SPRING, REBOUND

51177-48700-000   5117748700000

5117748700000
Not available
9
CYLINDER

51146-13640-000   5114613640000

5114613640000
Not available
10
RING,PISTON<br />RING
RING, PISTON
RING

51196-33130-000   5119633130000

5119633130000

Unit Price

11
SEAL, SPACER

51168-05210-000   5116805210000

5116805210000
Not available
12
SEAL, OIL
OIL SEAL

51153-05210-000   5115305210000

5115305210000

Unit Price

13
SEAL, OIL STOPPER RING
RING, OIL SEAL STOPPER

51156-48730-000   5115648730000

5115648730000

Unit Price

14
TUBE, INNER

51110-13620-000   5111013620000

5111013620000
Not available
15
SPRING

51171-13640-000   5117113640000

5117113640000
Not available
16
GUIDE, SPRING

51172-36331-000   5117236331000

5117236331000
Not available
17
SPACER

51176-13620-000   5117613620000

5117613620000
Not available
18
O RING

51181-33131-000   5118133131000

5118133131000

Unit Price

19
SEAT, SPRING

51175-48500-000   5117548500000

5117548500000

Unit Price

20
RING, STOPPER
SNAP RING

51169-48500-000   5116948500000

5116948500000

Unit Price

21
CAP, FR FORK
CAP

51189-13620-000   5118913620000

5118913620000

Unit Price

22
BOOT, FR FORK COVER
BOOT (BLUE)

51571-13620-19F   515711362019F

515711362019F

Unit Price

23
BAND, BOOT LWR

51575-03D00-000  

51576-42AA0-000
 5157503D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of TS-X. Let us know if you have any questions.

Genuine parts for Suzuki 50 TS-X 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 TS-X 1991

Select your Suzuki 1991 model

50 TS-X 1991 TS50XAM(E4)

Suzuki TS-X

Displacement: 50 cc
Year: 1991
Model code TS50XAM(E4)
