Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP

CLUTCH FOR SUZUKI TS-X 50 1991

TRANSMISSION

Item numbers

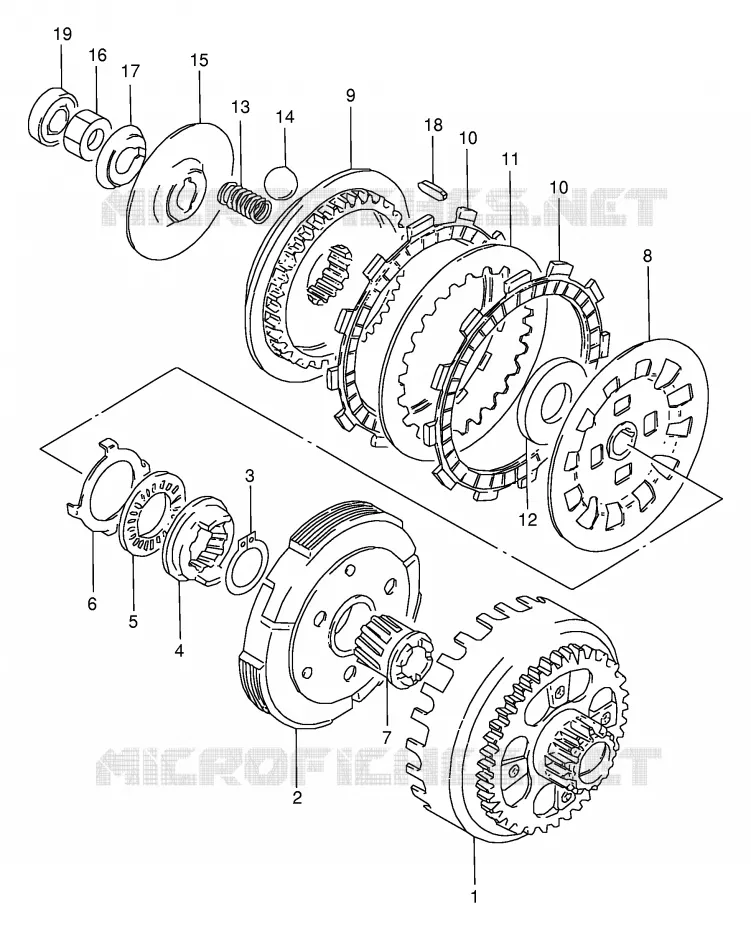

CLUTCH Suzuki MOTO 50 TS-X 1991 TS50XAM(E4)
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
1
GEAR ASSY, PRIMARY DRIVEN

21200-46502-000   2120046502000

2120046502000
Not available
2
CLUTCH ASSY, 2ND

21502-46503-000   2150246503000

2150246503000
Not available
3
CIRCLIP

09380-24003-000   0938024003000

0938024003000
4
GUIDE

22521-46501-000   2252146501000

2252146501000
Not available
5
THRUST BEARING

09263-30014-000   0926330014000

0926330014000
Not available
6
RETAINER

22531-46501-000   2253146501000

2253146501000
Not available
7
SPACER

22511-46500-000   2251146500000

2251146500000
Not available
8
PLATE, SLEEVE HUB

22540-46501-000   2254046501000

2254046501000
Not available
9
HUB, 3RD CLUTCH

21411-46501-000   2141146501000

2141146501000
Not available
10
PLATE,CLUTCH DRIVE(T:3.0)<br />PLATE, DRIVE
PLATE, CLUTCH DRIVE(T:3.0)
PLATE, DRIVE

21441-13A01-000   2144113A01000

2144113A01000

Unit Price

11
PLATE, DRIVEN

21451-01400-000   2145101400000

2145101400000
Not available
12
THRUST WASHER

09160-30029-000   0916030029000

0916030029000
Not available
13
SPRING, RETURN

21481-46500-000   2148146500000

2148146500000
Not available
14
BALL
REORDER BRAN BARDSLEY

06111-15004-000   0611115004000

0611115004000
Not available
15
PLATE, BALL

21465-46500-000   2146546500000

2146546500000
Not available
16
NUT
NUT

09140-14002-000   0914014002000

0914014002000

Unit Price

17
LOCK WASHER

09169-14004-000   0916914004000

0916914004000
Not available
18
KEY

09421-03004-000   0942103004000

0942103004000
Not available
19
BUSH, RH

09319-12013-000   0931912013000

0931912013000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki of TS-X. Let us know if you have any questions.

Genuine parts for Suzuki 50 TS-X 1991

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 TS-X 1991

Select your Suzuki 1991 model

50 TS-X 1991 TS50XAM(E4)

Suzuki TS-X

Displacement: 50 cc
Year: 1991
Model code TS50XAM(E4)
