Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

SPEEDOMETER

HEADLIGHT FOR SUZUKI TS-X 50 1994

INDICATORS REFER TO FIG.17A(D-9) FOR E22

Item numbers

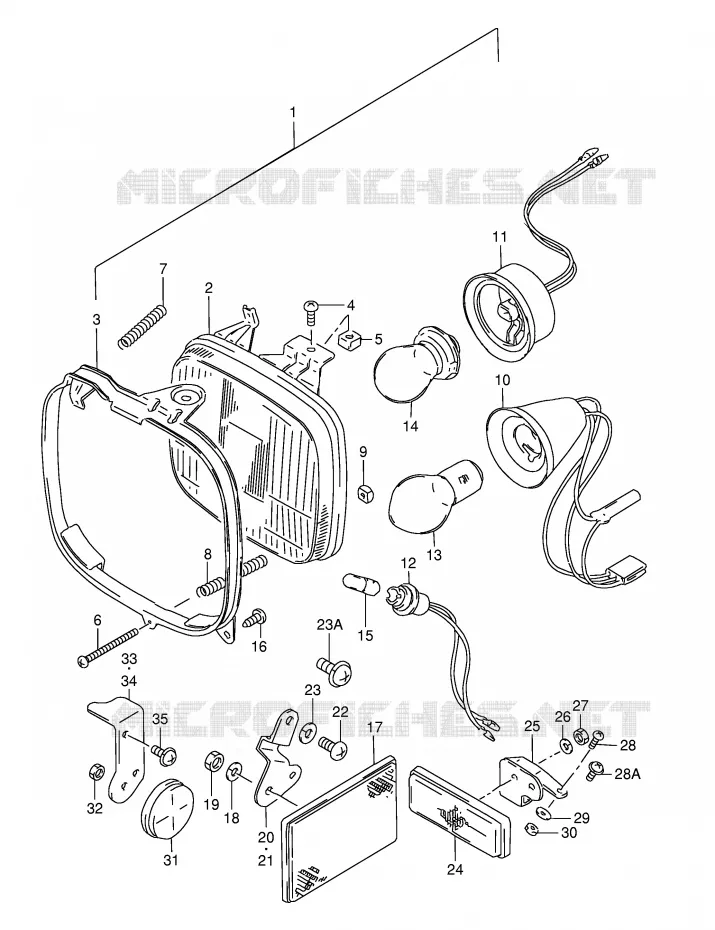

HEADLIGHT Suzuki MOTO 50 TS-X 1994 TS50XKR(E1)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
20
21
21
22
23A
23
24
25
26
27
27
28
28A
29
30
31
32
33
34
35
35
1
HAADLAMP ASSY

35100-13680-999   3510013680999

3510013680999
Not available
1
HEADLAMP ASSY

35100-13691-999   3510013691999

3510013691999
Not available
2
UNIT

35121-13680-000   3512113680000

3512113680000
Not available
2
UNIT

35121-13690-000   3512113690000

3512113690000
Not available
3
RING, MOUNTING

35130-13610-000   3513013610000

3513013610000
Not available
4
SCREW

02112-05126-000  

02112-0512A-000
 0211205126000

Unit Price

5
NUT
NUT

35135-45900-000   3513545900000

3513545900000

Unit Price

6
SCREW , 4X50
ADJUST SCREW

09125-04020-000   0912504020000

0912504020000

Unit Price

7
SPRING, UPPER

35154-13610-000   3515413610000

3515413610000
Not available
8
SPRING
SPRING, LOWER

35154-31300-000   3515431300000

3515431300000

Unit Price

9
NUT
NUT

35135-45600-000   3513545600000

3513545600000

Unit Price

10
SOCKET

35171-46A50-000   3517146A50000

3517146A50000
Not available
11
SOCKET

35171-02180-000   3517102180000

3517102180000
Not available
12
SOCKET

36118-44B00-000   3611844B00000

3611844B00000
Not available
13
BULB (12V, 35/35W)

09471-12020-000   0947112020000

0947112020000
Not available
14
BULB (12V, 15W)

09471-12090-000   0947112090000

0947112090000
Not available
15
BULB (12V, 4W)

09471-12063-000  

0947112063000
Not available
16
SCREW

03212-05163-000  

13765-48GV0-000
 0321205163000

Unit Price

17
REFLEX REFLECTOR, FRONT SIDE

35950-14A50-000   3595014A50000

3595014A50000
Not available
17
REFLEX REFLECTOR, FRONT SIDE

35950-26941-000   3595026941000

3595026941000
Not available
18
WASHER, LOCK

08321-01053-000  

08321-0105A-000
 0832101053000

Unit Price

19
08310-0005A

08310-00053-000  

0831000053000
Not available
20
BRACKET, RH

35956-13600-000   3595613600000

3595613600000
Not available
20
BRACKET, RH

35956-26900-000   3595626900000

3595626900000
Not available
21
BRACKET, LH

35957-13600-000   3595713600000

3595713600000
Not available
21
BRACKET, LH

35957-26900-000   3595726900000

3595726900000
Not available
22
SCREW

02142-05103-000  

02142-0510A-000
 0214205103000

Unit Price

23
WASHER, LOCK

08321-01053-000  

08321-0105A-000
 0832101053000

Unit Price

23A
SCREW

02112-35103-000  

02112-3510B-000
 0211235103000

Unit Price

24
REFLECTOR, FRONT

35960-13700-000   3596013700000

3596013700000
Not available
25
BRACKET, FRONT REFLECTOR

35966-13700-000   3596613700000

3596613700000
Not available
26
WASHER, LOCK

08321-01057-000  

08321-0105A-000
 0832101057000

Unit Price

27
NUT
NUT

08310-00057-000   0831000057000

0831000057000

Unit Price

27
08310-0005A

08310-00053-000  

0831000053000
Not available
28
SCREW

02112-05125-000  

02112-05127-000
 0211205125000

Unit Price

28A
SCREW

02112-35103-000  

02112-3510B-000
 0211235103000

Unit Price

29
WASHER (5.5X16X1.2)
WASHER (5.5X16X1.2)

09160-05037-000   0916005037000

0916005037000

Unit Price

30
08310-0005A

08310-00053-000  

0831000053000
Not available
31
REFLECTOR,REFLEX FR<br />REFLEX REFLECTOR, FRONT SIDE
REFLECTOR, REFLEX FR
REFLEX REFLECTOR, FRONT SIDE

35950-14A00-000   3595014A00000

3595014A00000

Unit Price

32
08310-0005A

08310-00053-000  

0831000053000
Not available
33
BRACKET, RH

35956-13600-000   3595613600000

3595613600000
Not available
34
BRACKET, LH

35957-13600-000   3595713600000

3595713600000
Not available
35
SCREW

02112-35103-000  

02112-3510B-000
 0211235103000

Unit Price

35
SCREW

02162-05103-000  

02162-0510A-000
 0216205103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT of your Suzuki of TS-X. Let us know if you have any questions.

Genuine parts for Suzuki 50 TS-X 1994

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 TS-X 1994

Select your Suzuki 1994 model

50 TS-X 1994 TS50XKR(E1)

Suzuki TS-X

Displacement: 50 cc
Year: 1994
Model code TS50XKR(E1)
