SWINGARM (MODEL M / R E16,MODEL R E15) REFER TO FIG.39B(I-7) FOR MODEL M E17

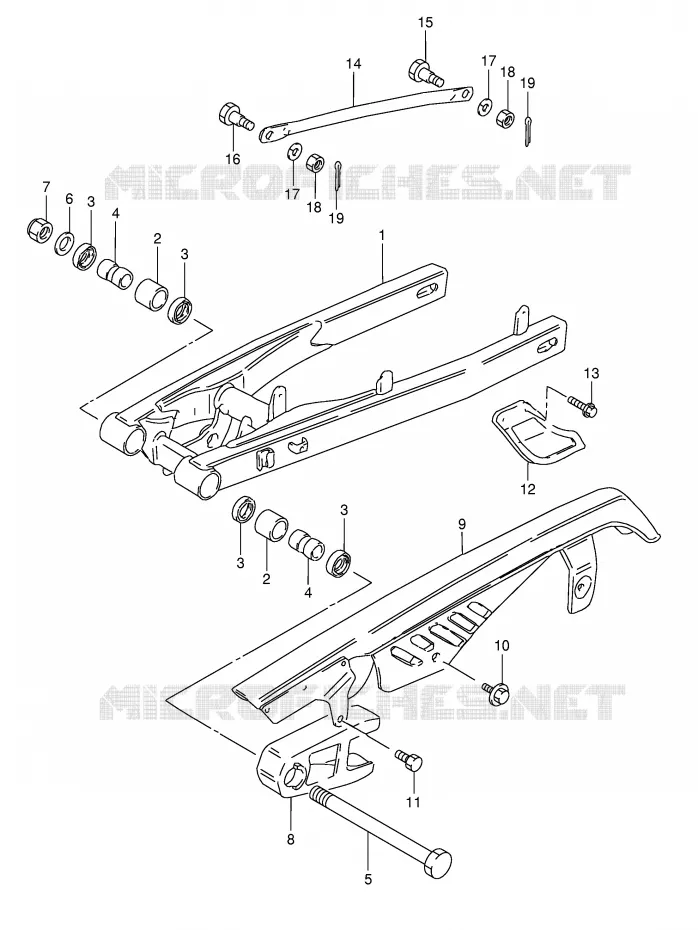

SWINGARM (MODEL M E17) FOR SUZUKI TS-X 50 1994

REAR SHOCK ABSORBER

Item numbers

SWINGING ARM ASSY, REAR (SILVER)

61000-13680-13L 610001368013L

Not available

BUSHING, RR SWGARM PIVOT
BUSHING, REAR SWING ARM PIVOT

61261-13700-000 6126113700000

$18,97

Unit Price

KK SHAFT OIL SEAL
OIL SEAL (20X27X5)

09283-20031-000 0928320031000

$8,97

Unit Price

SPACER, PIVOT

61251-13700-000 6125113700000

Not available

SHAFT, REAR SWING ARM PIVOT

61211-13701-000 6121113701000

Not available

WASHER

08322-01147-000 0832201147000

$2,97

Unit Price

NUT

08319-21148-000

08319-2114A-000

$6,97

Unit Price

BUFFER, CHAIN TACH DIFENSE

61273-13610-000 6127313610000

Not available

CASE, CHAIN (BLACK)

61310-13690-000 6131013690000

Not available

BOLT
BOLT (6X10)

09116-06096-000 0911606096000

$3,97

Unit Price

BOLT

01550-06103-000

01550-0610B-000

$3,97

Unit Price

CHAIN GUIDE

61341-13710-000 6134113710000

Not available

01550-0616A
BOLT

01550-06163-000

Not available

DISCONTINUE
LINK, REAR TORQUE (SILVER)

64311-48700-13L 643114870013L

Not available

R TORQUE LINK BOLT
BOLT, REAR (8X26.5)

09111-08013-000 0911108013000

$4,97

Unit Price

RE TORQUE LINK BOLT
BOLT, FRONT (8X22)

09111-08015-000 0911108015000

$4,97

Unit Price

8 MM LOCK WASHER
LOCK WASHER

08321-01087-000 0832101087000

$2,97

Unit Price

NUT 8MM
NUT

09140-08008-000 0914008008000

$2,97

Unit Price

04111-20208-000

04111-2020A-000

$1,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM (MODEL M E17) of your Suzuki of TS-X. Let us know if you have any questions.
