Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TAIL LIGHT (E22) REFER TO FIG.20B(E- 7) FOR E4

TAIL LIGHT (E4) FOR SUZUKI TS-X 50 1994

WIRING HARNESS REFER TO FIG.21A(E-9) FOR E4,E15

Item numbers

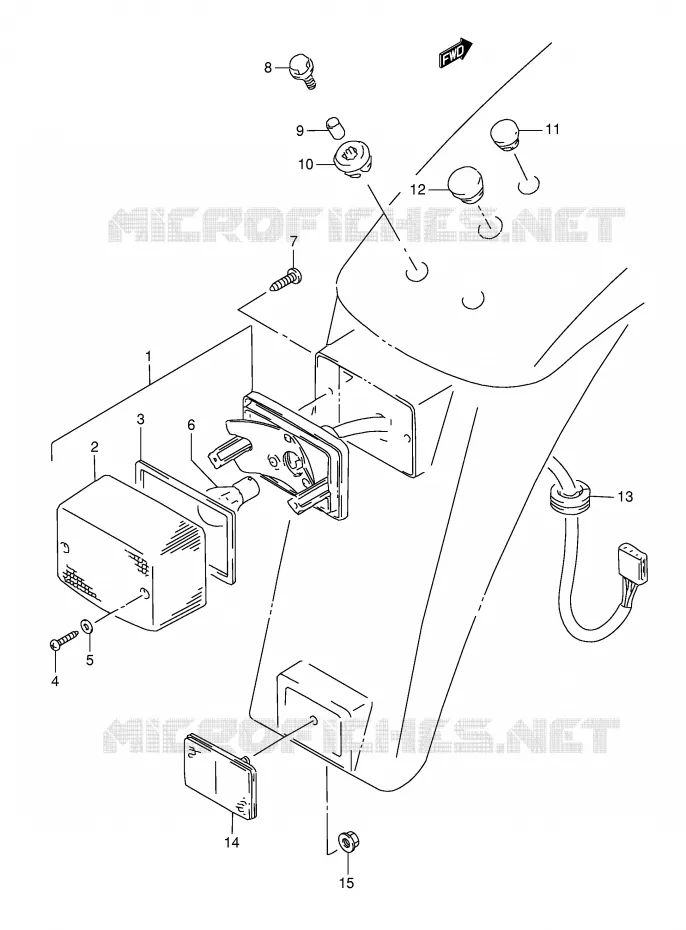

TAIL LIGHT (E4) Suzuki MOTO 50 TS-X 1994 TS50XKR(E1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
LAMP ASSY, REAR COMBINATION
LAMP ASSY, REAR COMBINATION

35710-13760-999   3571013760999

3571013760999
Not available
2
LENS

35712-36A70-000   3571236A70000

3571236A70000
Not available
3
GASKET

35713-13600-000   3571313600000

3571313600000
Not available
4
SCREW
SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

5
GASKET
GASKET

35627-43010-000   3562743010000

3562743010000

Unit Price

6
BULB(12V1.4W G30)<br />BULB (12V 21/5W)
BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000   0947112083000

0947112083000

Unit Price

7
SCREW

03541-05163-000  

03541-0516B-000
 0354105163000

Unit Price

8
BOLT<br />BOLT (6X20)
BOLT
BOLT (6X20)

09116-06167-000   0911606167000

0911606167000

Unit Price

9
SPACER (6.5X9X10.5)

09180-06264-000   0918006264000

0918006264000

Unit Price

10
CUSHION
CUSHION

09320-09010-000   0932009010000

0932009010000

Unit Price

11
PLUG(OD:19)
PLUG

09250-14005-000   0925014005000

0925014005000

Unit Price

12
PLUG

09250-18003-000   0925018003000

0925018003000

Unit Price

13
GROMMET

09308-07010-000   0930807010000

0930807010000
Not available
14
REFLEX REFLECTOR, REAR (RR018)

35970-01A10-000   3597001A10000

3597001A10000
Not available
15
NUT

08316-10053-000  

08316-1005B-000
 0831610053000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (E4) of your Suzuki of TS-X. Let us know if you have any questions.

Genuine parts for Suzuki 50 TS-X 1994

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 50 TS-X 1994

Select your Suzuki 1994 model

50 TS-X 1994 TS50XKR(E1)

Suzuki TS-X

Displacement: 50 cc
Year: 1994
Model code TS50XKR(E1)
boîte 5 vitesses
