HEADLAMP - FRONT TURN SIGNAL REFER TO FIG.18 (D-5) FOR E2,E4,E21,E24

HEADLAMP - FRONT TURNSIGNAL (E2,E4,E21,E24) FOR SUZUKI AE 50 1990

REAR TURNSIGNAL LAMP (E2,E4,E21,E24)

Item numbers

HEADLAMP ASSY

35100-36C20-000 3510036C20000

Not available

HEADLAMP ASSY

35100-36C30-000 3510036C30000

Not available

HEADLAMP ASSY

35100-36C40-000 3510036C40000

Not available

HEADLAMP ASSY

35100-36C50-000 3510036C50000

Not available

LAMP UNIT

35121-36C20-000 3512136C20000

Not available

DISCONTINUE
LAMP UNIT

35121-36C30-000 3512136C30000

Not available

LAMP UNIT

35121-36C40-000 3512136C40000

Not available

LAMP UNIT

35121-36C50-000 3512136C50000

Not available

HOUSING

35127-36C20-000 3512736C20000

Not available

RING

35130-36C20-000 3513036C20000

Not available

SCREW

35151-45900-000 3515145900000

$5,97

Unit Price

DISCONTINUE
SPRING

35154-10B00-000 3515410B00000

Not available

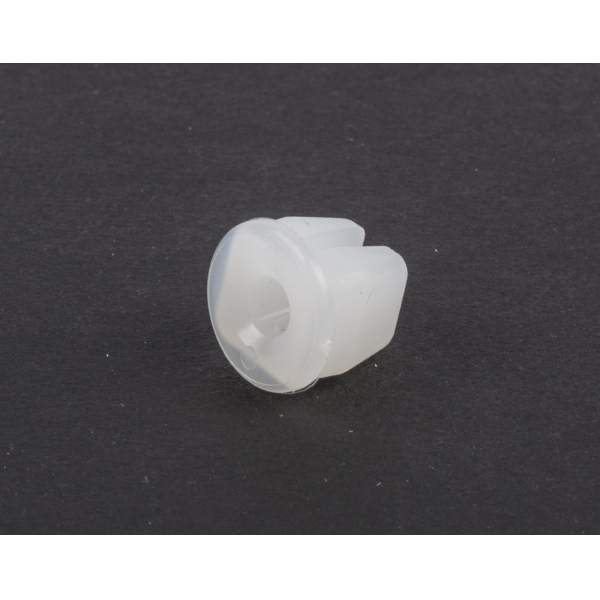

NUT, ADJUSTING
NUT

35135-12E20-000 3513512E20000

$3,97

Unit Price

SCREW

35136-16700-000 3513616700000

$5,97

Unit Price

WASHER, LOCK

08321-01057-000

08321-0105A-000

$3,97

Unit Price

WASHER

08322-01053-000

08322-0105A-000

$2,97

Unit Price

SOCKET

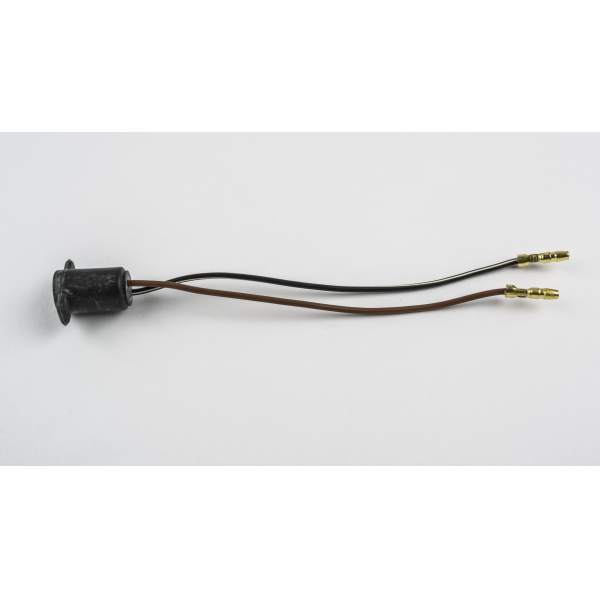

SOCKET ASSY

36118-04A00-000 3611804A00000

$12,97

Unit Price

11A

SOCKET

35171-36C40-000 3517136C40000

Not available

11B

COVER

35173-46790-000 3517346790000

Not available

BULB (12V, 25/25W)

09471-12017-000 0947112017000

Not available

BULB (12V, 15W)

09471-12090-000 0947112090000

Not available

DISCONTINUE
BULB (12V, 4W)

09471-12063-000 0947112063000

Not available

DISCONTINUE
PLATE, HEADLAMP BRACKET

35195-36C20-000 3519536C20000

Not available

SCREW

02142-05163-000

02142-0516A-000

$2,97

Unit Price

DISCONTINUE
LAMP, FRONT TURNSIGNAL RH

35601-36C30-000 3560136C30000

Not available

DISCONTINUE
LAMP, FRONT TURNSIGNAL LH

35602-36C30-000 3560236C30000

Not available

DISCONTINUE
LENS, RH

35612-36C30-000 3561236C30000

Not available

DISCONTINUE
LENS, LH

35632-36C30-000 3563236C30000

Not available

DISCONTINUE
GASKET

35613-36C30-000 3561336C30000

Not available

BULB(12V51W, HB4, P22D)
BULB (12V, 10W)

09471-12142-000 0947112142000

$10,97

Unit Price

SCREW

03511-04163-000

03511-0416A-000

$2,97

Unit Price

SCREW

03541-05123-000

03541-0512A-000

$2,97

Unit Price

SCREW

03541-05125-000 0354105125000

Not available

BOOT

35650-36C10-000 3565036C10000

Not available

REFLECTOR, REFLEX FR
REFLECTOR, FRONT SIDE

35950-14A00-000 3595014A00000

$17,97

Unit Price

REFLECTOR, FRONT SIDE

35950-26941-000 3595026941000

Not available

WASHER, LOCK

08321-01053-000

08321-0105A-000

$3,97

Unit Price

NUT

08310-00053-000

08310-0005A-000

$3,97

Unit Price

DISCONTINUE

35956-36C00-000

Not available

DISCONTINUE

35957-36C00-000

Not available

SCREW

02142-05123-000

02142-0512A-000

$2,97

Unit Price

WASHER

08322-01053-000

08322-0105A-000

$2,97

Unit Price

NUT

08310-00053-000

08310-0005A-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLAMP - FRONT TURNSIGNAL (E2,E4,E21,E24) of your Suzuki of AE. Let us know if you have any questions.
