CYLINDER

CRANKCASE FOR SUZUKI AE 50 1990

LEFT CRANKCASE COVER

Item numbers

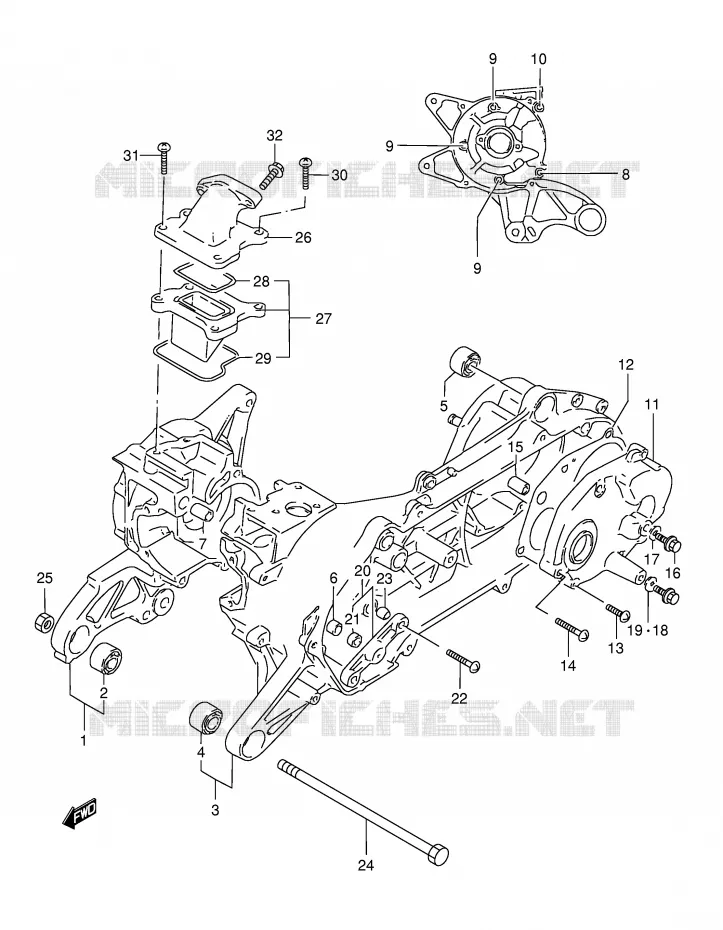

CRANKCASE Suzuki SCOOTER 50 AE 1990 AE50L(E1)
1
2
3
4
5
6
7
8
8
9
9
9
9
9
9
10
10
11
12
12
12
13
13
14
14
15
16
17
18
19
20
21
22
22
23
24
25
25
26
27
27
28
29
30
31
32
1
CRANKCASE SET, RH

11310-37816-000   1131037816000

1131037816000
Not available
2
BUSH
BUSH, ENGINE MOUNTING

09319-10050-000   0931910050000

0931910050000

Unit Price

3
DISCONTINUE
CRANKCASE SET, LH

11320-36812-000   1132036812000

1132036812000
Not available
4
BUSH
BUSH, ENGINE MOUNTING

09319-10050-000   0931910050000

0931910050000

Unit Price

5
BUSH(10.2X22.3X20)
BUSH, SHOCK ABSORBER

09319-10032-000   0931910032000

0931910032000

Unit Price

6
BUSH<br />BUSH, STARTER IDLE SHAFT
BUSH
BUSH, STARTER IDLE SHAFT

09300-08016-000   0930008016000

0930008016000

Unit Price

7
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

8
SCREW

02112-06403-000  

02112-0640B-000
 0211206403000

Unit Price

8
SCREW 6X40<br />SCREW
SCREW 6X40
SCREW

02112-06407-000   0211206407000

0211206407000

Unit Price

9
SCREW

02112-06453-000  

02112-0645B-000
 0211206453000

Unit Price

9
SCREW,6X45<br />SCREW
SCREW, 6X45
SCREW

02112-06457-000   0211206457000

0211206457000

Unit Price

10
SCREW

02112-06853-000  

02112-0685B-000
 0211206853000

Unit Price

10
SCREW
SCREW

02112-06857-000   0211206857000

0211206857000

Unit Price

11
DISCONTINUE
COVER, GEAR BOX

11431-37B02-000   1143137B02000

1143137B02000
Not available
12
GASKET, GEAR BOX COVER

11484-37B00-000  

11484-41D30-000
 1148437B00000

Unit Price

13
SCREW

02112-06253-000  

02112-0625A-000
 0211206253000

Unit Price

14
SCREW

02112-06303-000  

02112-0630A-000
 0211206303000

Unit Price

14
SCREW
SCREW

02112-06307-000   0211206307000

0211206307000

Unit Price

15
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

16
BOLT

01550-08123-000  

01550-0812B-000
 0155008123000

Unit Price

17
GASKET, 8.2X14X1

09168-08008-000  

09168-08016-000
 0916808008000

Unit Price

18
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

19
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

20
DISCONTINUE
CAP SET, STARTER IDLE GEAR

11380-37811-000   1138037811000

1138037811000
Not available
21
BUSH
BUSH

09300-08016-000   0930008016000

0930008016000

Unit Price

22
SCREW

02112-06303-000  

02112-0630A-000
 0211206303000

Unit Price

22
SCREW
SCREW

02112-06307-000   0211206307000

0211206307000

Unit Price

23
PIN
PIN

04211-09109-000   0421109109000

0421109109000

Unit Price

24
BOLT (10X185)
BOLT (10X185)

09100-10267-000   0910010267000

0910010267000
Not available
25
NUT

08310-00103-000  

08310-0010B-000
 0831000103000

Unit Price

25
NUT
NUT

08310-00107-000   0831000107000

0831000107000

Unit Price

26
PIPE, INTAKE

13111-29C20-000   1311129C20000

1311129C20000
Not available
27
VALVE ASSY, REED

13150-36C00-000   1315036C00000

1315036C00000
Not available
27
DISCONTINUE
VALVE ASSY, REED

13150-37B01-000   1315037B01000

1315037B01000
Not available
28
DISCONTINUE
O RING, REED VALVE

13156-37B00-000   1315637B00000

1315637B00000
Not available
29
DISCONTINUE
O RING, REED VALVE

13155-37B00-000  

1315537B00000
Not available
30
DISCONTINUE<br />SCREW
DISCONTINUE
SCREW

02112-36253-000  

0211236253000
Not available
31
SCREW

02112-36303-000   0211236303000

0211236303000
Not available
32
SCREW
SCREW (6X19)

09128-06071-000   0912806071000

0912806071000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of AE. Let us know if you have any questions.
