* CATALOG PREFACE *

CYLINDER FOR SUZUKI KATANA 50 2000

CYLINDER (model AY50WR K1)

Item numbers

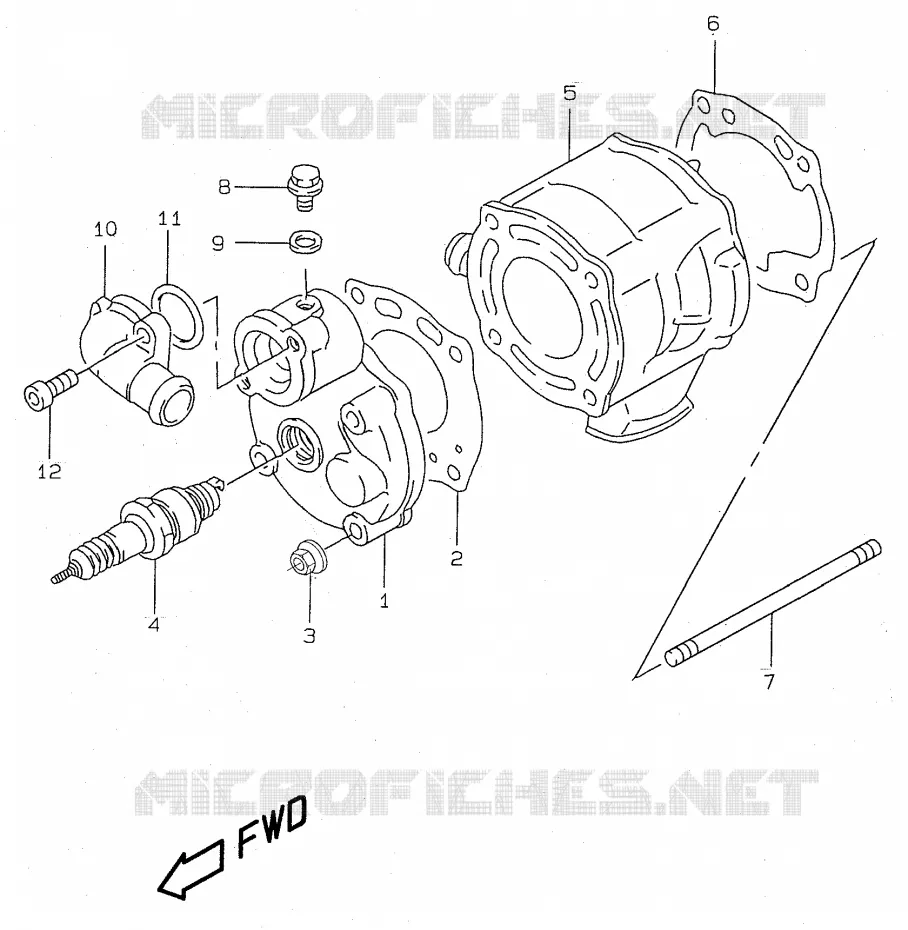

CYLINDER Suzuki SCOOTER 50 KATANA 2000 AY50WRY(V/W/X/Y)
1
1
2
2
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
6
6
7
7
8
8
9
9
10
10
10
10
11
11
12
12
1
HEAD, CYLINDER

11111-35E00-000   1111135E00000

1111135E00000
Not available
2
GASKET

11141-35E01-A00   1114135E01A00

1114135E01A00
Not available
3
NUT

D8316-10065-000   D831610065000

D831610065000
Not available
4
BPR7HS, NGK

09482-00244-111  

09482-00255-000
 0948200244111

Unit Price

4
SPARK PLUG (DENSO, W20FPR)

09482-00243-111   0948200243111

0948200243111
Not available
4
SPARK PLUG (NGK, BPR6HS)

09482-00281-000   0948200281000

0948200281000
Not available
5
CYLINDER COMP

11210-35E00-0F0   1121035E000F0

1121035E000F0
Not available
5
CYLINDER COMP

11210-35E10-0F0   1121035E100F0

1121035E100F0
Not available
5
CYLINDER COMP

11210-35E20-0F0   1121035E200F0

1121035E200F0
Not available
6
GASKET

11241-35E00-000   1124135E00000

1124135E00000
Not available
7
STUD BOLT

D1427-06955-000   D142706955000

D142706955000
Not available
8
BOLT

09103-06100-000   0910306100000

0910306100000

Unit Price

9
TACH GEAR WASHER<br />GASKET
TACH GEAR WASHER
GASKET

09168-06004-000   0916806004000

0916806004000

Unit Price

10
COVER, THERMOSTAT

17661-02E00-000   1766102E00000

1766102E00000
Not available
10
COVER, THERMOSTAT

17661-46A00-000   1766146A00000

1766146A00000
Not available
11
O RING, D:2.7, ID:21.4
O. RING

09280-21015-000   0928021015000

0928021015000

Unit Price

12
BOLT

D7107-06165-000  

07130-0616B-000
 D710706165000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER of your Suzuki of KATANA. Let us know if you have any questions.
