FRONT CALIPER

FRONT MASTER CYLINDER (MAGURA) FOR SUZUKI KATANA 50 2000

FRONT MASTER CYLINDER (AJP)

Item numbers

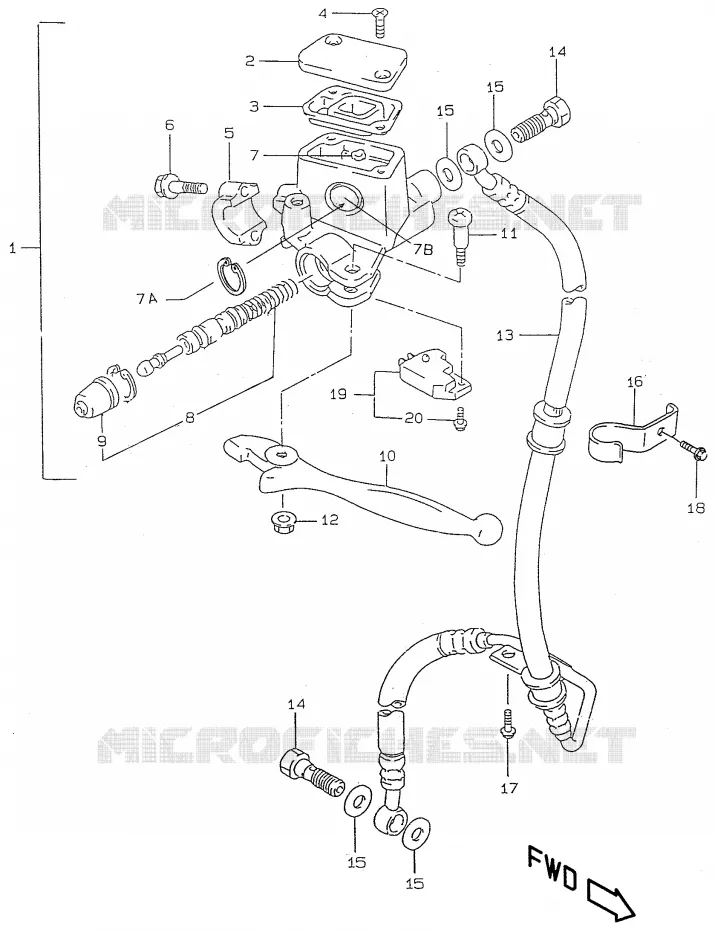

FRONT MASTER CYLINDER (MAGURA) Suzuki SCOOTER 50 KATANA 2000 AY50WRY(V/W/X/Y)

1

CYLINDER ASSY, FRONT MASTER

59600-35E00-000 5960035E00000

Not available

2

CAP

59669-02E00-000 5966902E00000

Not available

3

DIAPHRAGM

59667-02E00-000 5966702E00000

Not available

4

SCREW

59689-02E00-000 5968902E00000

Not available

5

HOLDER

59671-02E00-000 5967102E00000

Not available

6

BOLT

D1507-06255-000 D150706255000

Not available

7

PROTECTOR

59664-02E00-000 5966402E00000

Not available

7A

CIRCLIP, LEVEL GAUGE

59749-02E00-000 5974902E00000

Not available

7B

LEVEL GAUGE

59745-02E00-000 5974502E00000

Not available

8

PISTON/CUP, SET

59601-02E00-000 5960102E00000

Not available

9

BOOT

59666-02E00-000 5966602E00000

Not available

10

LEVER, BRAKE

57421-02E00-000 5742102E00000

Not available

11

SCREW, LEVER

57431-02E00-000 5743102E00000

Not available

12

NUT

D8316-10065-000 D831610065000

Not available

13

HOSE, FRONT BRAKE

59480-35E00-000 5948035E00000

Not available

14

BOLT (10X1.00X22)

09360-10039-X00 0936010039X00

Not available

15

WASHER (10X15X1.5)

09161-10009-X00 0916110009X00

Not available

16

CLAMP, BRAKE HOSE

59246-35E00-E0N 5924635E00E0N

Not available

17

BOLT (5X8)

D1504-05085-000 D150405085000

Not available

18

01550-0610B
BOLT (6X10)

D2116-06105-000

Not available

19

SWITCH ASSY, STOP

57460-17C00-000

57460-14J02-000

$38,97

Unit Price

20

SCREW, WITH WASHER(4X12)
SCREW

57465-17C00-000 5746517C00000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT MASTER CYLINDER (MAGURA) of your Suzuki of KATANA. Let us know if you have any questions.
