HANDLEBAR (model V / W and model AY50 X / Y / K1)

HANDLEBAR (MODEL AY50W / WR X / Y / K1) FOR SUZUKI KATANA 50 2000

HANDLE GRIP

Item numbers

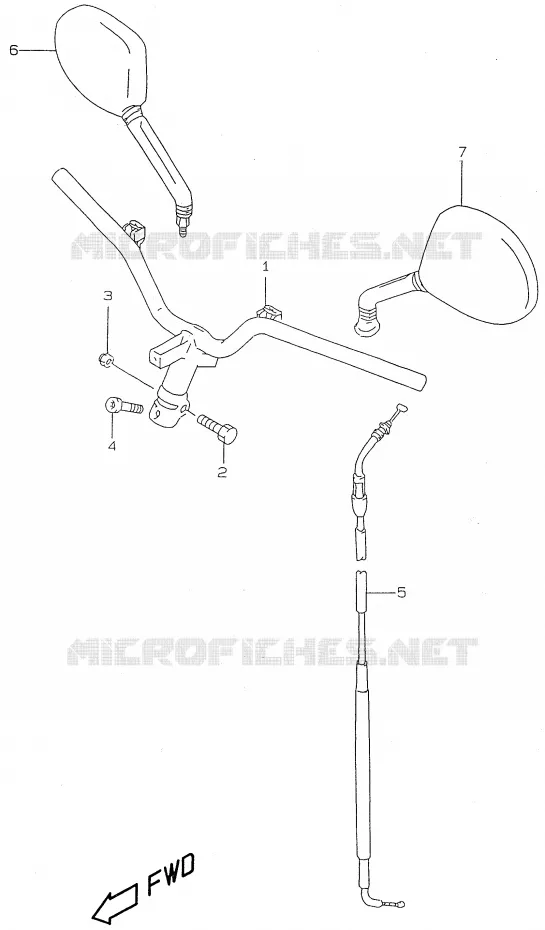

HANDLEBAR (model AY50W/WR X/Y/K1) Suzuki SCOOTER 50 KATANA 2000 AY50WRY(V/W/X/Y)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
1
HANDLEBAR

56110-02E00-EE3   5611002E00EE3

5611002E00EE3
Not available
2
BOLT

09689-10116-000   0968910116000

0968910116000
Not available
3
NUT

D8311-79108-000   D831179108000

D831179108000
Not available
4
SCREW
BOLT, HANDLEBAR SET (8X35)

09120-08016-000  

0912008016000
Not available
5
CABLE ASSY, THROTTLE

58300-35E00-000   5830035E00000

5830035E00000
Not available
6
MIRROR ASSY, REAR VIEW RH

56500-09EF0-000   5650009EF0000

5650009EF0000
7
MIRROR ASSY, REAR VIEW LH

56600-09EF0-000   5660009EF0000

5660009EF0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDLEBAR (model AY50W/WR X/Y/K1) of your Suzuki of KATANA. Let us know if you have any questions.
