Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

ELECTRICAL

SPEEDOMETER (MODEL V / W / X / Y) FOR SUZUKI KATANA 50 2000

SPEEDOMETER (model K1) high beam indicator

Item numbers

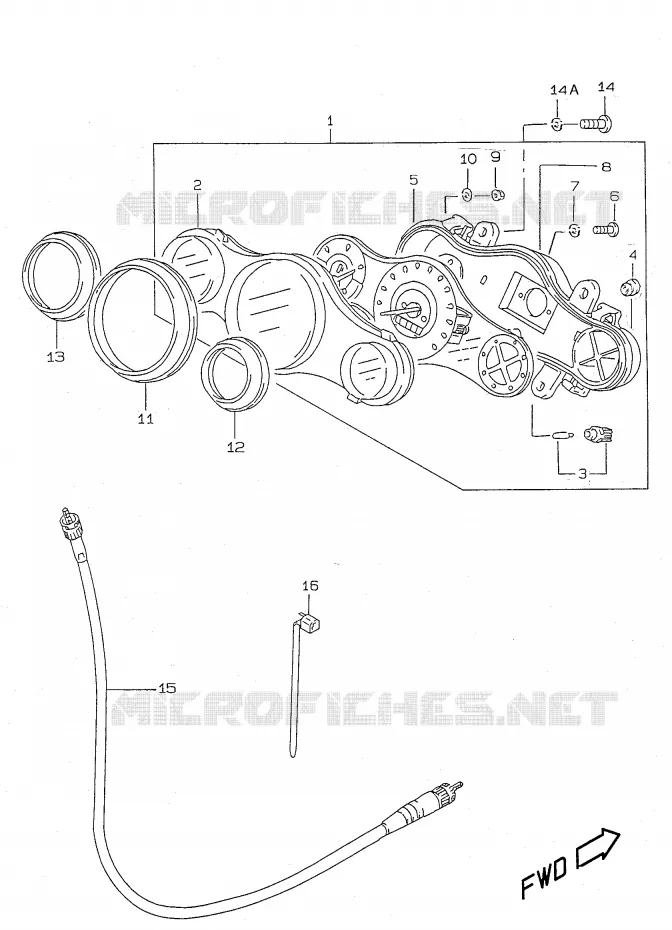

SPEEDOMETER (model V/W/X/Y) Suzuki SCOOTER 50 KATANA 2000 AY50WY(V/W/X/Y)
1
1
1
1
1
1
1
1
1
1
1
1
2
2
3
3
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14A
14A
15
15
16
16
16
16
1
SPEEDOMETER ASSY

34100-35E00-000   3410035E00000

3410035E00000
Not available
1
SPEEDOMETER ASSY

34100-35E10-000   3410035E10000

3410035E10000
Not available
1
SPEEDOMETER ASSY

34100-35E20-000   3410035E20000

3410035E20000
Not available
1
SPEEDOMETER ASSY

34100-35E30-000   3410035E30000

3410035E30000
Not available
1
SPEEDOMETER ASSY

34100-35E40-000   3410035E40000

3410035E40000
Not available
1
SPEEDOMETER ASSY

34100-35E50-000   3410035E50000

3410035E50000
Not available
2
LENS

34154-02E00-000   3415402E00000

3415402E00000
Not available
3
SOCKET&BULB (12V, 1, 2W)

34172-09E00-000   3417209E00000

3417209E00000
Not available
4
CAP, SPEEDOMETER

34198-09E10-000   3419809E10000

3419809E10000
Not available
5
BODY, LOWER

34111-02E10-000   3411102E10000

3411102E10000
Not available
6
SCREW

D2116-04085-000   D211604085000

D211604085000
Not available
7
DISCONTINUE
WASHER

D8322-01045-000   D832201045000

D832201045000
Not available
8
BOARD, CIRCUIT

34173-02E00-000   3417302E00000

3417302E00000
Not available
9
NUT

D8310-00035-000   D831000035000

D831000035000
Not available
10
WASHER

D8322-01035-000   D832201035000

D832201035000
Not available
11
CUSHION, SPEEDOMETER

34188-35E00-000   3418835E00000

3418835E00000
Not available
12
CUSHION, PILOT LAMP

34189-35E00-000   3418935E00000

3418935E00000
Not available
13
CUSHION, FUEL METER

34191-35E00-000   3419135E00000

3419135E00000
Not available
14A
WASHER

D8322-01055-000  

08322-0105B-000
 D832201055000

Unit Price

14
SCREW
SCREW

D3111-05165-000   D311105165000

D311105165000
Not available
15
CABLE ASSY, SPEEDOMETER

34910-35E00-000   3491035E00000

3491035E00000
Not available
16
DISCONTINUE
CLAMP

D9436-01425-000  

D943601425000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SPEEDOMETER (model V/W/X/Y) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2000
