Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

HANDLE GRIP

FRONT FORK FOR SUZUKI KATANA 50 2000

FRONT WHEEL (model V / W / X) Tires and tubes not included

Item numbers

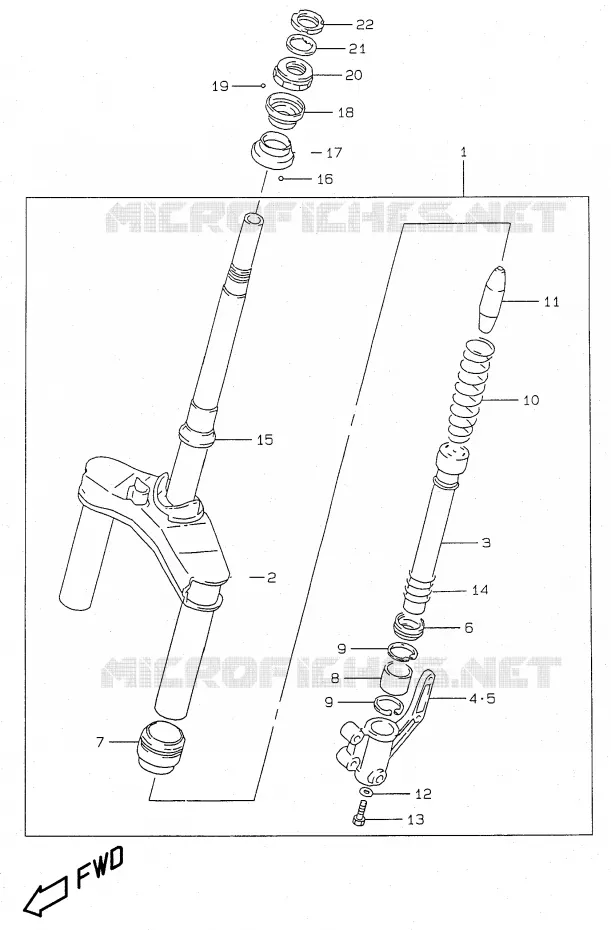

FRONT FORK Suzuki SCOOTER 50 KATANA 2000 AY50WY(V/W/X/Y)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
1
FORK ASSY, FRONT

51100-35E00-E91   5110035E00E91

5110035E00E91
Not available
2
STEM, STEERING

51210-35E00-000   5121035E00000

5121035E00000
Not available
3
TUBE, INNER RH/LH

51110-35E00-000   5111035E00000

5111035E00000
Not available
4
BRACKET, AXLE RH

51132-35E00-000   5113235E00000

5113235E00000
Not available
5
BRACKET, AXLE LH

51142-35E00-000   5114235E00000

5114235E00000
Not available
6
SEAL, DUST

51173-35E00-000   5117335E00000

5117335E00000
Not available
7
CASE, SEAL

51135-35E00-000   5113535E00000

5113535E00000
Not available
8
PIPE GUIDE

51152-35E00-000   5115235E00000

5115235E00000
Not available
9
CIRCLIP

51118-35E00-000   5111835E00000

5111835E00000
Not available
10
SPRING, FRONT

51171-35E00-000   5117135E00000

5117135E00000
Not available
11
RUBBER, STOPPER

51292-35E00-000   5129235E00000

5129235E00000
Not available
12
WASHER

51296-10E00-000   5129610E00000

5129610E00000
Not available
13
BOLT

D7107-08205-000   D710708205000

D710708205000
Not available
14
SPRING

51177-35E00-000   5117735E00000

5117735E00000
Not available
15
RACE, OUTER LOWER

51622-16B00-000   5162216B00000

5162216B00000
Not available
16
BALL, LOWER

D6111-05004-000   D611105004000

D611105004000
Not available
17
RACE, INNER LOWER

51612-16B00-000   5161216B00000

5161216B00000
Not available
18
RACE, STEERING INNER UPR
RACE, INNER UPPER

51611-16A00-000  

5161116A00000
Not available
19
BALL, UPPER

D6111-05004-000   D611105004000

D611105004000
Not available
20
RACE, STEERING OUTER UPR
RACE, OUTER UPPER

51621-16A01-000   5162116A01000

5162116A01000

Unit Price

21
WASHER

09166-26001-000   0916626001000

0916626001000

Unit Price

22
NUT, STEERING STEM
NUT, STEM LOCK

51631-29C00-000   5163129C00000

5163129C00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2000
