TRANSMISSION (2) (model AY50WR K1)

KICK STARTER (MODEL V / W) FOR SUZUKI KATANA 50 2000

KICK STARTER (model X / Y / K1)

Item numbers

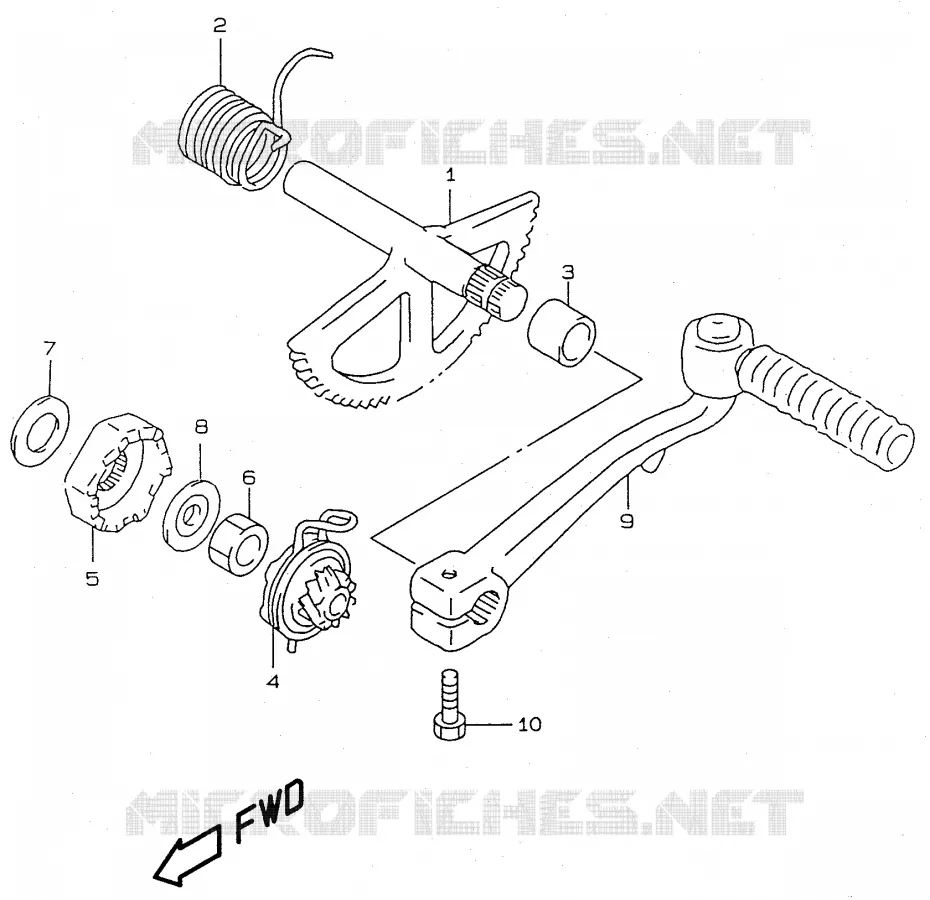

KICK STARTER (model V/W) Suzuki SCOOTER 50 KATANA 2000 AY50WY(V/W/X/Y)
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
1
SHAFT, KICK STARTER

26210-43E11-000   2621043E11000

2621043E11000
2
SPRING

09448-30016-000   0944830016000

0944830016000

Unit Price

3
BUSH (14X18X15)

09300-14011-R00   0930014011R00

0930014011R00
Not available
4
GEAR ASSY, KICK STARTER

26200-43E10-000   2620043E10000

2620043E10000
Not available
5
STARTER, KICK RH

26231-43E00-000   2623143E00000

2623143E00000
Not available
6
NUT
NUT

09140-12039-000   0914012039000

0914012039000

Unit Price

7
SPACER (14X23X3.6)

09160-14036-000   0916014036000

0916014036000
Not available
8
WASHER
WASHER (12.2X22X1.2)

09164-12020-000   0916412020000

0916412020000

Unit Price

9
LEVER ASSY, KICK STARTER

26300-10E00-000   2630010E00000

2630010E00000
Not available
10
BOLT

01500-06253-000  

01500-0625B-000
 0150006253000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the KICK STARTER (model V/W) of your Suzuki of KATANA. Let us know if you have any questions.
