CARBURETOR (MODEL AY50W K3 / K4)

CARBURETOR (MODEL AY50 K1 / K2) FOR SUZUKI KATANA 50 2002

CARBURETOR (MODEL AY50 K3 / K4)

Item numbers

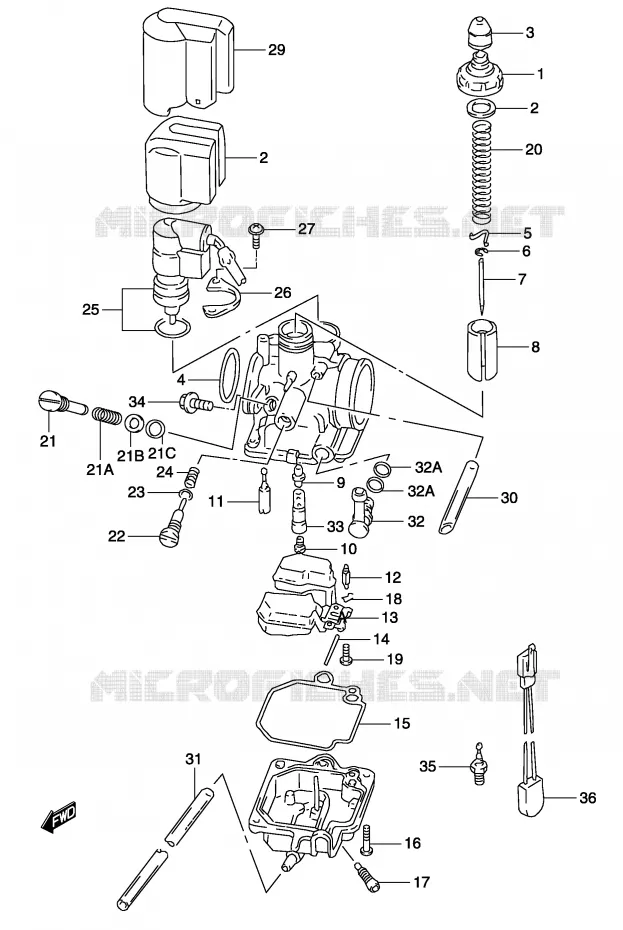

CARBURETOR (MODEL AY50 K1/K2) Suzuki SCOOTER 50 KATANA 2002 AY50WRK2(P19)
1
2
2
3
4
5
6
7
7
7
7
8
8
9
9
10
10
10
10
11
11
11
11
12
13
14
15
16
17
18
19
20
21A
21
21
21
21
21
21B
21C
22
23
24
25
25
25
26
27
29
29
30
31
32A
32A
32
33
34
35
35
36
36
1
TOP

13261-43E00-000   1326143E00000

1326143E00000
Not available
2
GASKET

13266-43E00-000   1326643E00000

1326643E00000
Not available
3
CAP, CARBURETOR
CAP

13681-28E00-000   1368128E00000

1368128E00000

Unit Price

4
O RING

13436-43E00-000   1343643E00000

1343643E00000
Not available
5
PLATE

13392-43E00-000   1339243E00000

1339243E00000
Not available
6
CLIP, NEEDLE

13394-43E00-000   1339443E00000

1339443E00000
Not available
7
JET NEEDLE (N4WA)

13383-35E00-000   1338335E00000

1338335E00000
Not available
7
JET NEEDLE (N5GJ)

13383-35E30-000   1338335E30000

1338335E30000
Not available
7
JET NEEDLE (6LQJ)

13383-35ED0-000   1338335ED0000

1338335ED0000
Not available
8
VALVE, PISTON

13551-43E00-000   1355143E00000

1355143E00000
Not available
8
VALVE, PISTON

13551-43ED0-000   1355143ED0000

1355143ED0000
Not available
9
NEEDLE JET (5.5)

13341-35E00-000   1334135E00000

1334135E00000
Not available
9
NEEDLE JET (5.5)

13341-43E00-000   1334143E00000

1334143E00000
Not available
10
JET, MAIN(55)

09491-55008-000   0949155008000

0949155008000
Not available
10
JET, MAIN (60)

09491-60011-000   0949160011000

0949160011000
Not available
10
JET, MAIN (65)

09491-65009-000   0949165009000

0949165009000
Not available
10
JET, MAIN (70)

09491-70015-000   0949170015000

0949170015000
Not available
11
JET, PILOT (35X35)

13351-35E00-000   1335135E00000

1335135E00000
Not available
11
JET, PILOT (40)

09492-40023-000   0949240023000

0949240023000
Not available
11
JET, PILOT (45)

09492-45036-000   0949245036000

0949245036000
Not available
11
JET, PILOT (48)

09492-48014-000   0949248014000

0949248014000
Not available
12
VALVE ASSY, FLOAT

13370-43E00-000   1337043E00000

1337043E00000
Not available
13
FLOAT ASSY

13250-43E00-000   1325043E00000

1325043E00000
Not available
14
PIN, FLOAT

13254-43E00-000   1325443E00000

1325443E00000
Not available
15
GASKET

13258-43E00-000   1325843E00000

1325843E00000
Not available
16
SCREW
SCREW

13602-26E10-000   1360226E10000

1360226E10000

Unit Price

17
PLUG, DRAIN
SCREW, DRAIN

13247-43E00-000  

1324743E00000
Not available
18
CLIP

13375-43E00-000   1337543E00000

1337543E00000
Not available
19
SCREW

13602-43E00-000  

1360243E00000
Not available
20
SPRING

13573-43E00-000   1357343E00000

1357343E00000
Not available
21B
WASHER
WASHER

13291-26E00-000   1329126E00000

1329126E00000

Unit Price

21C
O.RING
O.RING

13295-26E00-000   1329526E00000

1329526E00000

Unit Price

21
ADJUSTER (1 3/8)

13279-35E00-000   1327935E00000

1327935E00000
Not available
21A
SPRING
SPRING, AIR SCREW

13271-43E00-000  

1327143E00000
Not available
22
SCREW, STOP

13267-35E00-000   1326735E00000

1326735E00000
Not available
23
O RING

13278-43E00-000  

1327843E00000
Not available
24
SPRING

13297-43E00-000   1329743E00000

1329743E00000
Not available
25
ELEMENT ASSY, THERMO

13430-06F30-000   1343006F30000

1343006F30000
Not available
25
ELEMENT ASSY, THERMO

13430-35EB0-000   1343035EB0000

1343035EB0000
Not available
25
ELEMENT ASSY, THERMO

13430-35EE0-000   1343035EE0000

1343035EE0000
Not available
26
PLATE

13428-06F30-000   1342806F30000

1342806F30000

Unit Price

27
SCREW

02112-34083-000  

02112-3408A-000
 0211234083000

Unit Price

28
COVER

13431-43E00-000   1343143E00000

1343143E00000
Not available
28
COVER

13431-43E50-000   1343143E50000

1343143E50000
Not available
29
CAP, OUTER

13433-06F30-000   1343306F30000

1343306F30000
Not available
29
CAP, OUTER

13433-43E50-000   1343343E50000

1343343E50000
Not available
30
HOSE

13683-43E00-000   1368343E00000

1368343E00000
Not available
31
HOSE

13684-35E00-000   1368435E00000

1368435E00000
Not available
32
JOINT

13685-43E00-000   1368543E00000

1368543E00000
Not available
32A
O. RING

13294-43E00-000   1329443E00000

1329443E00000
Not available
33
HOLDER, JET

13342-43E00-000   1334243E00000

1334243E00000
Not available
34
BOLT

D7107-06165-000  

07130-0616B-000
 D710706165000

Unit Price

35
HEATER ASSY,CARBURETOR(15W)<br />HEATER, CARBURETOR
HEATER ASSY, CARBURETOR(15W)
HEATER, CARBURETOR

13650-25E01-000   1365025E01000

1365025E01000

Unit Price

36
THERMO SWITCH,CARB HEATER<br />THERMOSWITCH, CARBURETOR HEATE
THERMO SWITCH, CARB HEATER
THERMOSWITCH, CARBURETOR HEATE

13655-25E00-000   1365525E00000

1365525E00000

Unit Price

99x
CARBURETOR ASSY

13200-35E21-000   1320035E21000

1320035E21000
Not available
99x
CARBURETOR ASSY

13200-35EB1-000   1320035EB1000

1320035EB1000
Not available
99x
CARBURETOR ASSY

13200-35EE0-000   1320035EE0000

1320035EE0000
Not available
99x
CARBURETOR ASSY

13200-35EG0-000   1320035EG0000

1320035EG0000
Not available
99x
CARBURETOR ASSY

13200-35EJ0-000   1320035EJ0000

1320035EJ0000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR (MODEL AY50 K1/K2) of your Suzuki of KATANA. Let us know if you have any questions.
