REAR WHEEL (MODEL AY50WK4) TIRES AND TUBES NOT INCLUDED

REAR WHEEL (MODEL AY50) FOR SUZUKI KATANA 50 2002

REAR CALIPER (MODEL AY50WR K1 / K2 / AY50W K3 / K4)

Item numbers

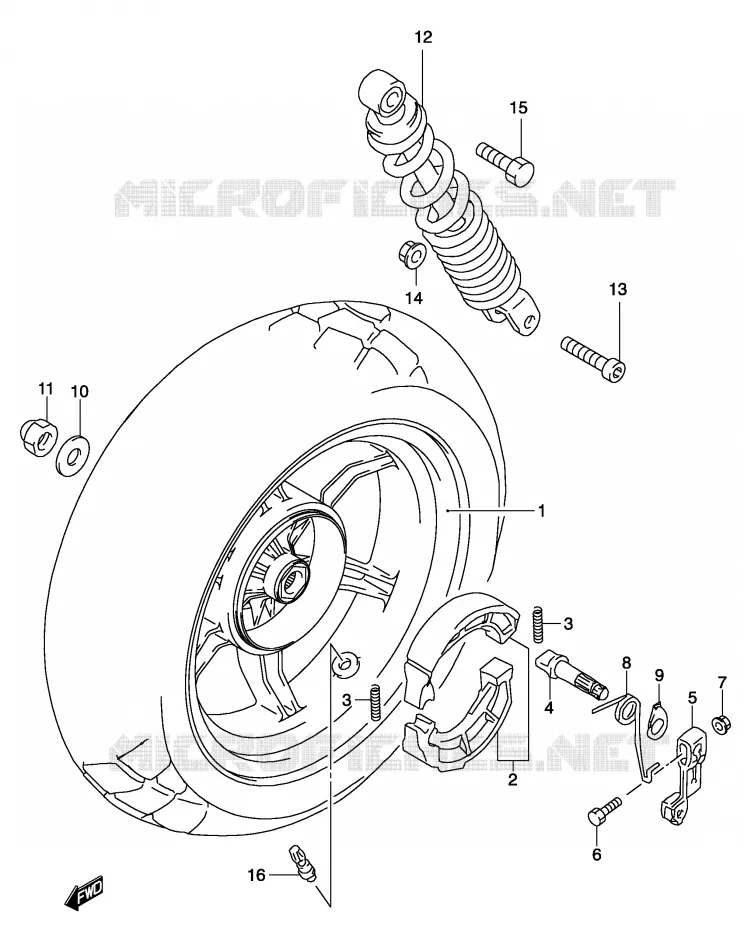

REAR WHEEL (MODEL AY50) Suzuki SCOOTER 50 KATANA 2002 AY50WRK2(P19)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
WHEEL, REAR (MT3.50X12)

64140-02E30-E91   6414002E30E91

6414002E30E91
Not available
2
SHOE SET, BRAKE

54041-30F00-000   5404130F00000

5404130F00000
Not available
3
SPRING<br />SPRING, SHOE
SPRING
SPRING, SHOE

09443-07001-000   0944307001000

0944307001000

Unit Price

4
CAM, REAR BRAKE

64441-10E00-000   6444110E00000

6444110E00000
Not available
5
LEVER, BRAKE CAM

64451-10E00-000   6445110E00000

6445110E00000
Not available
6
BOLT

D1507-06305-000   D150706305000

D150706305000
Not available
7
NUT

D8316-10065-000   D831610065000

D831610065000
Not available
8
SPRING, LEVER RETURN

64484-10E00-000   6448410E00000

6448410E00000
Not available
9
PLATE, BRAKE LINING

64492-02E00-000   6449202E00000

6449202E00000
Not available
10
WASHER

09160-02E00-E0Z   0916002E00E0Z

0916002E00E0Z
Not available
11
NUT, REAR AXLE

D8311-60168-000   D831160168000

D831160168000
Not available
12
ABSORBER ASSY, REAR SHOCK

62100-35E00-163   6210035E00163

6210035E00163
Not available
13
BOLT, LOWER

D7107-10455-000   D710710455000

D710710455000
Not available
14
NUT

D8319-60108-000   D831960108000

D831960108000
Not available
15
BOLT, UPPER

D1007-10405-000   D100710405000

D100710405000
Not available
16
VALVE ASSY

43130-02E00-000   4313002E00000

4313002E00000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL (MODEL AY50) of your Suzuki of KATANA. Let us know if you have any questions.

Genuine parts for Suzuki 50 KATANA 2002
